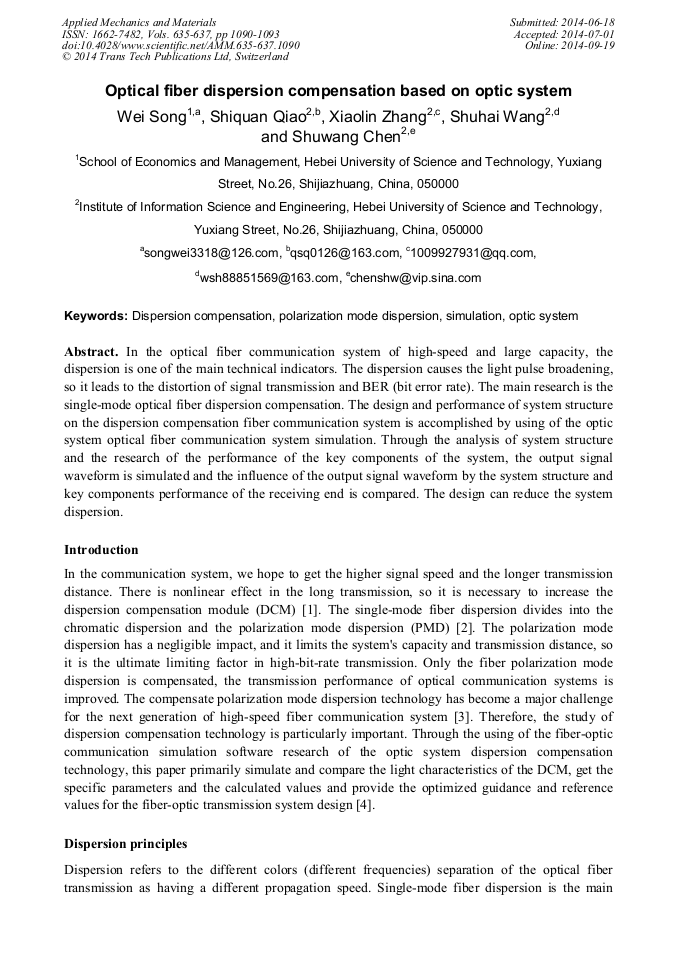

Optical Fiber Dispersion Compensation Based on Optic System

Abstract:

In the optical fiber communication system of high-speed and large capacity, the dispersion is one of the main technical indicators. The dispersion causes the light pulse broadening, so it leads to the distortion of signal transmission and BER (bit error rate). The main research is the single-mode optical fiber dispersion compensation. The design and performance of system structure on the dispersion compensation fiber communication system is accomplished by using of the optic system optical fiber communication system simulation. Through the analysis of system structure and the research of the performance of the key components of the system, the output signal waveform is simulated and the influence of the output signal waveform by the system structure and key components performance of the receiving end is compared. The design can reduce the system dispersion.

• Periodical: Applied Mechanics and Materials (Volumes 635-637)
• Pages: 1090-1093
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.635-637.1090
• Online since: September 2014
• Authors: Wei Song*, Shi Quan Qiao, Xiao Lin Zhang, Shu Hai Wang, Shu Wang Chen
• Keywords: Dispersion Compensation, Optic System, Polarization Mode Dispersion, Simulation

References

[1] Hu Boning, Wang Jing, Wang Wei. Analysis on dispersion compensation with DCF based on Optisystem. 2010 2nd international conference on Industrial and Information Systems, pp.40-43.

DOI: 10.1109/indusis.2010.5565685

[2] Satoshi Tsukamoto, Kazuhiro Katoh and Kazuro Kikuchi, Coherent Demodulation of Optical Multilevel Phase-Shift-Keying Signals Using Homodyne Detection and Digital Signal Processing. IEEE Photonics Technology Letters, Vol. 18, No. 10, (2006).

DOI: 10.1109/lpt.2006.873921

[3] Li Fengqin; Beam handsome peak. High-speed long-distance optical transmission system is the key technology research and simulation. Shanghai electric power college journals, 2010(5), p.3.

[4] Yelanin,S.; Katok,V.; Ometsinska,O. Length optimization of fiber optic regeneration section considering dynamic broadening of optical transmitter spectrum, 2004(6), pp.172-176.

DOI: 10.1109/icton.2004.1361996

[5] Huang Ping; Zeng Branch; Qin Zixiong; Liang Weiyuan; Ruan Jun; dispersion compensation in optical fiber communications program principles and characteristics. 16 Photonic crystal fiber dispersion and nonlinear properties of Chinese high-tech enterprises, 2007 [D].

[6] Udalcovs,A.; Bobrovs,V. Evaluation of the maximum permissible transmission distance for the mixed-HDWDM systems, 2012, pp.1-6.

DOI: 10.1109/bihtel.2012.6412052

[7] Cao Dingjun, Liu Haizhu. Digital cable TV in the long-distance optical fiber transmission dispersion compensation, Chinese cable TV, 2008(6), pp.16-18.
