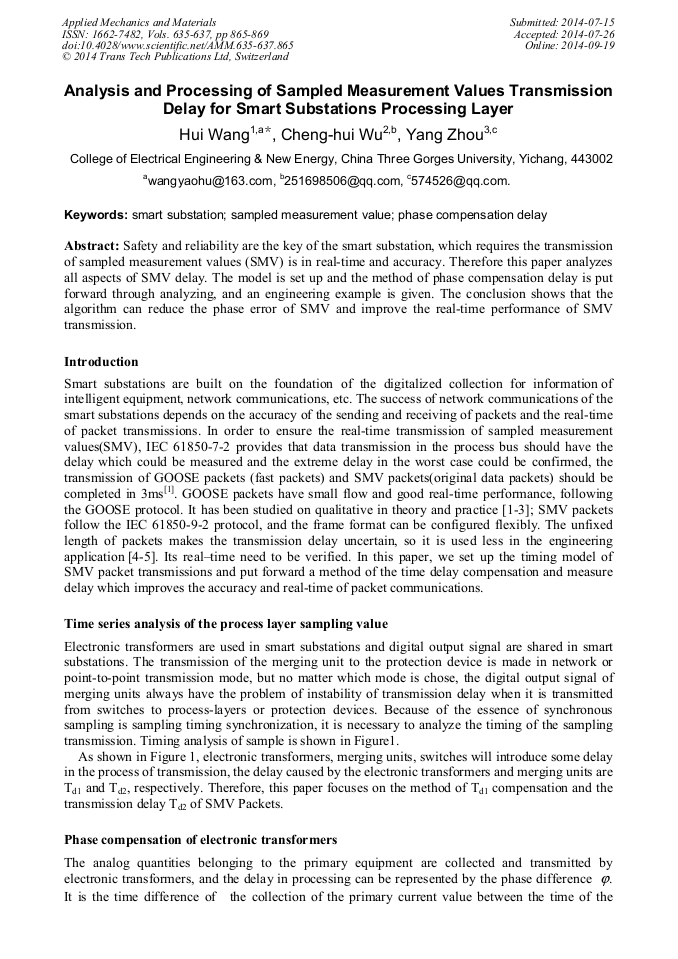

Analysis and Processing of Sampled Measurement Values Transmission Delay for Smart Substations Processing Layer

Abstract:

Safety and reliability are the key of the smart substation, which requires the transmission of sampled measurement values (SMV) is in real-time and accuracy. Therefore this paper analyzes all aspects of SMV delay. The model is set up and the method of phase compensation delay is put forward through analyzing, and an engineering example is given. The conclusion shows that the algorithm can reduce the phase error of SMV and improve the real-time performance of SMV transmission.

• Periodical: Applied Mechanics and Materials (Volumes 635-637)
• Pages: 865-869
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.635-637.865
• Online since: September 2014
• Authors: Hui Wang, Cheng Hui Wu, Yang Zhou
• Keywords: Phase Compensation Delay, Sampled Measurement Value, Smart Substation

References

[1] IEC 61850 Communication networks and systems in substations[S]. (2003).

[2] Zhiliang Yin, Wanshun Liu, Qixun Yang, et al. A new IEEE 1588 based technology for realizing the sampled values synchronization on the substation process bus [J]. Automation of Electric Power Systems. 2005, 29(13): 60-63.

[3] Zhiliang Yin. Synchronization of sampled values in digital substations[J]. East china Electric Power. 2008, 36(7): 38-41.

[4] Song Wang, Chengyu Lu. A GOOSE network scheme for relay protection in digitized substations[J]. Automation of Electric Power Systems. 2009, 33(3): 51-55.

[5] Djekic Z, Portillo L, Kezunovic M. Compatibility and interoperability evaluation of all-digital protection systems based on IEC 61850-9-2 communication standard[C] IEEE PES General Meeting. Pittsburgh, USA: IEEE, 2008: 1-5.

DOI: 10.1109/pes.2008.4596762

[6] IEC 60044-8 Instrument transformers, part 8 electronic current transformers[S]. (2002).

[7] Jing Yang, Youqing Zhou, Kun Liu. Research on phase compensation of electronic transformer[J]. Electric Power Automation Equipment, 2007, 27(3): 45-48.

[8] Guanghui Xu, Youjun Li, Wenlong Wang, et al. Design of a synchronization and interpolation algorithm of sampled values for digital substation IED[J]. Automation of Electric Power Systems. 2009, 33(4): 49-52.

[9] Yingbing Zhao, Shuibin Zhou, Chaoyang Ma. Research and manufacture of merging unit based on IEC 61850-9-2[J]. Power System Protection and Control. 2010, 38(6): 105-108.

[10] Xiaobo Dou, Minqiang Hu, Zaijun Wu, et al. Simulation analysis on performance of communication networks in digital substations[J]. Power System Technology. 2008, 32(17): 98-103.

[11] Haifeng Zheng, Guotai Chen, Jinfa Lin, et al. Research on adaptive frame aggregation mechanism for IEEE 802. 11n[J]. Microelectronics & Computer. 2010, 27(4): 216-220.
