Experimental Study on Suppression of Vortex-Induced Vibration of Central-Slotted Box Girder by Aerodynamic Countermeasures

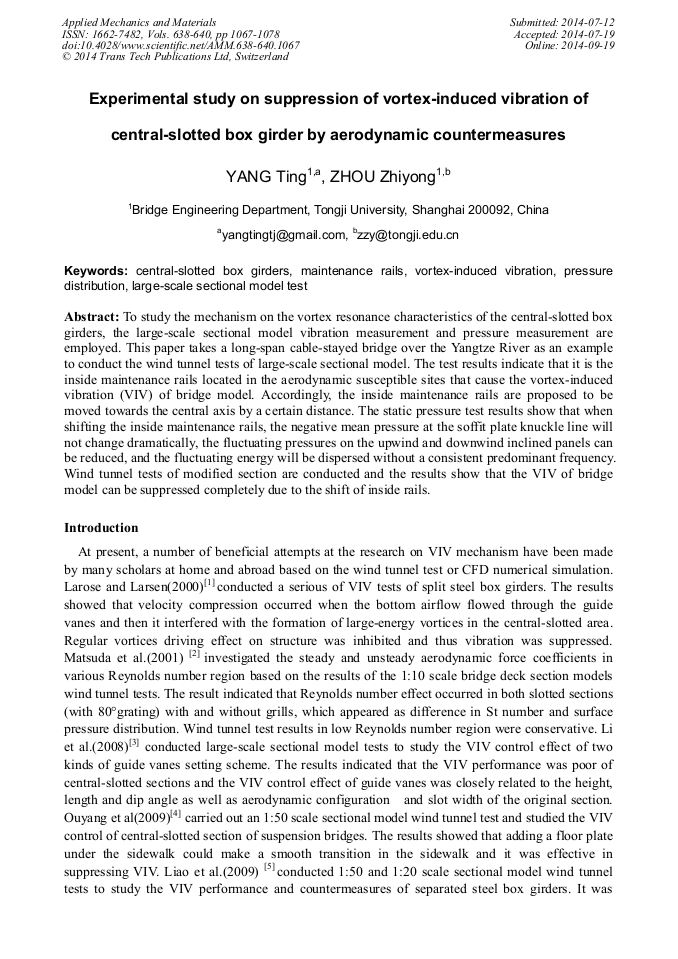

Abstract:

To study the mechanism on the vortex resonance characteristics of the central-slotted box girders, the large-scale sectional model vibration measurement and pressure measurement are employed. This paper takes a long-span cable-stayed bridge over the Yangtze River as an example to conduct the wind tunnel tests of large-scale sectional model. The test results indicate that it is the inside maintenance rails located in the aerodynamic susceptible sites that cause the vortex-induced vibration (VIV) of bridge model. Accordingly, the inside maintenance rails are proposed to be moved towards the central axis by a certain distance. The static pressure test results show that when shifting the inside maintenance rails, the negative mean pressure at the soffit plate knuckle line will not change dramatically, the fluctuating pressures on the upwind and downwind inclined panels can be reduced, and the fluctuating energy will be dispersed without a consistent predominant frequency. Wind tunnel tests of modified section are conducted and the results show that the VIV of bridge model can be suppressed completely due to the shift of inside rails.

• Periodical: Applied Mechanics and Materials (Volumes 638-640)
• Pages: 1067-1078
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.638-640.1067
• Online since: September 2014
• Authors: Ting Yang*, Zhi Yong Zhou
• Keywords: Central-Slotted Box Girders, Large-Scale Sectional Model Test, Maintenance Rails, Pressure Distribution, Vortex-Induced Vibration (VIV)

References

[1] Larose G.L., Larsen S.V., Larsen A., et al. Sectional Model Experiments at High Reynolds Number for the Deck of a 1018m Span Cable-stayed Bridge[C]/Proceedings of 11th International Conference on Wind Engineering. USA: Lubbock, TX, 2003: 373-380.

[2] Matsuda, K., Cooper, K.R., Tanaka, H., Tokushige, M., Iwasaki, T. An Investigation of Reynolds number effects on the steady and unsteady aerodynamic forces on a 1: 10 scale bridge deck section model[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2011(89): 619-632.

DOI: 10.1016/s0167-6105(01)00062-9

[3] LI Ling-yao, GE Yao-jun. Experiments of Vortex control for Central-Slotting on Long-span Bridge[J]. Journal of Huazhong University of Science and Technology (Nature Science), 2008, 36(12): 112-115. (in Chinese).

[4] OUYANG Ke-jian, CHEN Zheng-qing, HAN Yan, LI Hong-li. Vortex-induced Resonance of a Suspension Bridge with Central-slotted Deck and Its control Test Study. [J]. Journal of Vibration and Shock, 2009, 28(7): 199-202. (in Chinese).

[5] LIAO Hai-li, WANG Qi, LI Ming-shui. Investigation on the Vortex-induced Vibration of Shaojia Twin Box Bridge by Wind Tunnel Tests[C]/Proceedings of the 14th symposium on Wind Engineering of China. Beijing: China Civil Engineering Society, 2009: 580-584. (in Chinese).

[6] WANG Zheng-hua, YANG Yong-xin, GE Yao-jun. Investigation on the Vortex-induced Vibration of a Twin Box Bridge Section[J]. Journal of Shenyang Jianzhu University(Natural Science), 2010, 26(3): 433-438. (in Chinese).

[7] MENG Xiao-liang, GUO Zhen-shan, DING Quan-shun, ZHU Le-dong. Influence of Wind Fairing angle on Vortex-induced Vibrations and Flutter Performances of Closed and Semi-closed Box decks[J]. Engineering Mechanics, 2011(28): 184-194. (in Chinese).

[8] WANG Qi, LIN Dao-jin, LIAO Hai-li, SUN Yan-guo. Investigation on the Vortex-induced Vibration and Aerodynamic countermeasures of Twin Box Bridge by Wind Tunnel Tests[J]. Highway, 2013(7): 294-299. (in Chinese).
