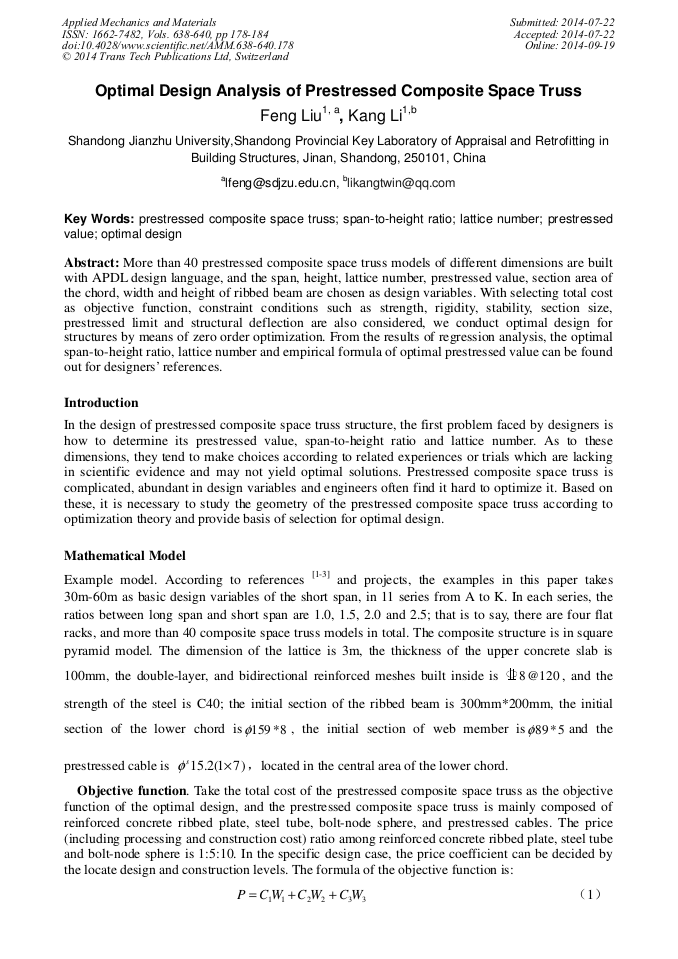

Optimal Design Analysis of Prestressed Composite Space Truss

Abstract:

More than 40 prestressed composite space truss models of different dimensions are built with APDL design language, and the span, height, lattice number, prestressed value, section area of the chord, width and height of ribbed beam are chosen as design variables. With selecting total cost as objective function, constraint conditions such as strength, rigidity, stability, section size, prestressed limit and structural deflection are also considered, we conduct optimal design for structures by means of zero order optimization. From the results of regression analysis, the optimal span-to-height ratio, lattice number and empirical formula of optimal prestressed value can be found out for designers’ references.

You might also be interested in these eBooks

Progress in Industrial and Civil Engineering III

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 638-640)

Pages:

178-184

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.638-640.178

Citation:

Cite this paper

Online since:

September 2014

Authors:

Feng Liu*, Kang Li

Keywords:

Lattice Number, Optimal Design, Prestressed Composite Space Truss, Prestressed Value, Span-to-Height Ratio

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Liu Feng, Cui Tao. The Study of Design and Application of Cable-Stayed Prestressed Composite Space Truss [A]. The Third National Academic Seminar on Modern Structural Engineering [C], 2003: 442-445. （In Chinese）.

Google Scholar

[2] Hang Qinghua, Pei Bo, Yang Zhi, etc. Theoretical Analysis and Application Study of Prestressed Composite Space Truss [J], Journal of Building Structures [J], 2004, 25(1): 87-93. （In Chinese）.

Google Scholar

[3] JGJ7-2010 Technical Specification for Space Frame Structures [S]. Beijing: China Architecture & Building Press, 2010. （In Chinese）.

Google Scholar

[4] GB50010-2010 Code for Design of Concrete Structures [S]. Beijing: China Architecture & Building Press, 2010. （In Chinese）.

Google Scholar

[5] GB50017-2003 Code for Design of Steel Structures [S]. Beijing: China Planning Press, 2003. （In Chinese）.

Google Scholar

[6] CECS 212: 2006 Technical Specification for Prestressed Steel Structure [S]. Beijing: China Planning Press, 2006. （In Chinese）.

Google Scholar
