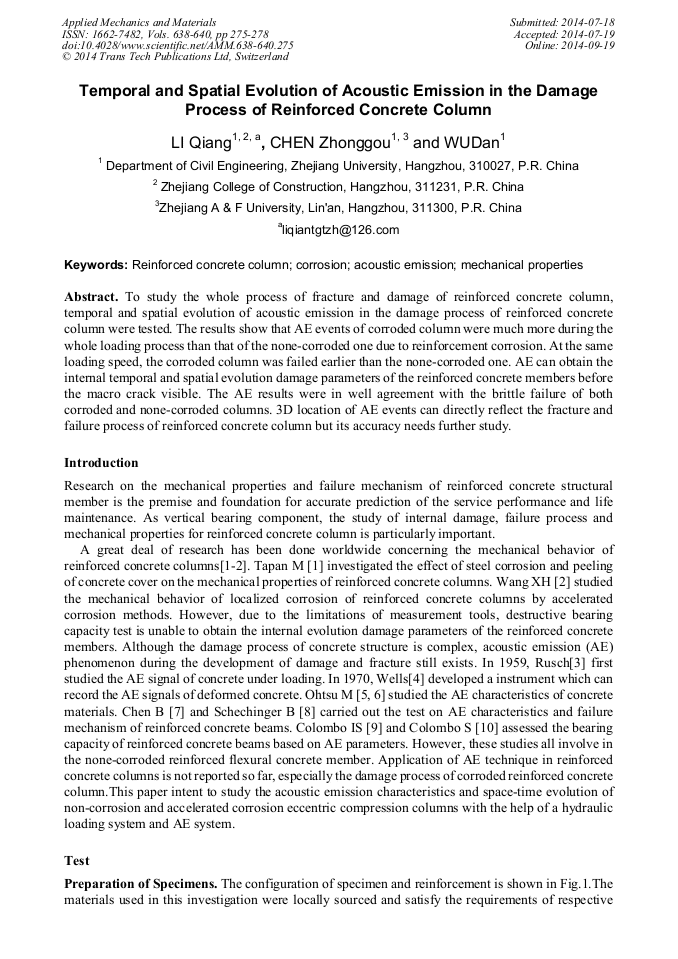

Temporal and Spatial Evolution of Acoustic Emission in the Damage Process of Reinforced Concrete Column

Abstract:

To study the whole process of fracture and damage of reinforced concrete column, temporal and spatial evolution of acoustic emission in the damage process of reinforced concrete column were tested. The results show that AE events of corroded column were much more during the whole loading process than that of the none-corroded one due to reinforcement corrosion. At the same loading speed, the corroded column was failed earlier than the none-corroded one. AE can obtain the internal temporal and spatial evolution damage parameters of the reinforced concrete members before the macro crack visible. The AE results were in well agreement with the brittle failure of both corroded and none-corroded columns. 3D location of AE events can directly reflect the fracture and failure process of reinforced concrete column but its accuracy needs further study.

• Periodical: Applied Mechanics and Materials (Volumes 638-640)
• Pages: 275-278
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.638-640.275
• Online since: September 2014
• Authors: Qiang Li*, Zhong Gou Chen, Dan Wu
• Keywords: Acoustic Emission, Corrosion, Mechanical Property, Reinforced Concrete Column

References

[1] Tapan M, Aboutaha R S. Effect of steel corrosion and loss of concrete cover on strength of deteriorated RC columns. Construction and Building Materials, 2011, 25(5): 2596-2603.

DOI: 10.1016/j.conbuildmat.2010.12.003

[2] Wang X H, Liang F Y. Performance of RC columns with partial length corrosion. Nuclear Engineering and Design, 2008, 238(12): 3194-3202.

DOI: 10.1016/j.nucengdes.2008.08.007

[3] Rusch H. Physical problems in testing of concrete. Zement-Kalk-Gips(Wiesbaden) 1959, 12(1).

[4] D. Wells. An acoustic apparatus to record emissions from concrete under strain. Nuclear engineering and design, 1970, 12.

DOI: 10.1016/0029-5493(70)90135-4

[5] Ohtsu M. Acoustic emission characteristics in concrete and diagnostic applications. Journal of Acoustic Emission, 1987, 6 (2): 99-108.

[6] Ohtsu M. The history and development of acoustic emission in concrete engineering. Magazine of concrete research, 1996, 48(177): 321-330.

DOI: 10.1680/macr.1996.48.177.321

[7] Chen B, Liu J. Experimental study on AE characteristics of three-point-bending concrete beams. Cement and Concrete Research, 2004, 34(3): 391-397.

DOI: 10.1016/j.cemconres.2003.08.021

[8] Schechinger B, Vogel T. Acoustic emission for monitoring a reinforced concrete beam subject to four-point-bending. Construction and Building materials, 2007, 21(3): 483-490.

DOI: 10.1016/j.conbuildmat.2006.04.003

[9] Colombo I S, Main I G, Forde M C. Assessing damage of reinforced concrete beam using b-value, analysis of acoustic emission signals. Journal of materials in civil engineering, 2003, 15(3): 280-286.

DOI: 10.1061/(asce)0899-1561(2003)15:3(280)

[10] Colombo S, Forde M C, Main I G, et al. Predicting the ultimate bending capacity of concrete beams from the relaxation ratio, analysis of AE signals. Construction and Building Materials, 2005, 19(10): 746-754.

DOI: 10.1016/j.conbuildmat.2005.06.004
