Experimental Research on Thermal Behavior of Light Gauge Steel-Framed Composite Walls with Slotted Studs

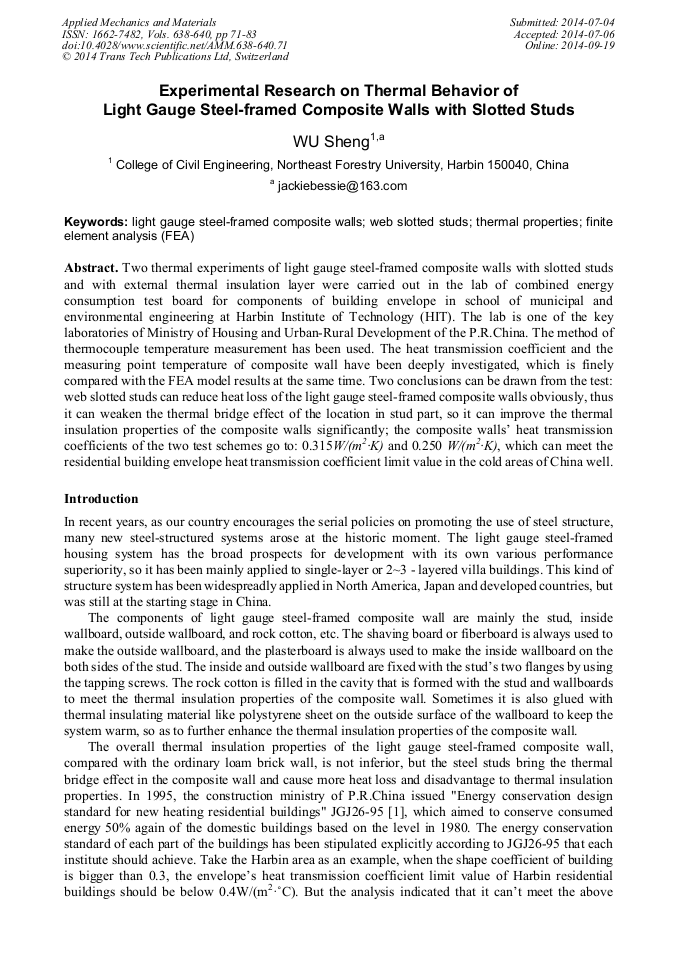

Abstract:

Two thermal experiments of light gauge steel-framed composite walls with slotted studs and with external thermal insulation layer were carried out in the lab of combined energy consumption test board for components of building envelope in school of municipal and environmental engineering at Harbin Institute of Technology (HIT). The lab is one of the key laboratories of Ministry of Housing and Urban-Rural Development of the P.R.China. The method of thermocouple temperature measurement has been used. The heat transmission coefficient and the measuring point temperature of composite wall have been deeply investigated, which is finely compared with the FEA model results at the same time. Two conclusions can be drawn from the test: web slotted studs can reduce heat loss of the light gauge steel-framed composite walls obviously, thus it can weaken the thermal bridge effect of the location in stud part, so it can improve the thermal insulation properties of the composite walls significantly; the composite walls’ heat transmission coefficients of the two test schemes go to: 0.315W/(m²·K) and 0.250 W/(m²·K), which can meet the residential building envelope heat transmission coefficient limit value in the cold areas of China well.

• Periodical: Applied Mechanics and Materials (Volumes 638-640)
• Pages: 71-83
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.638-640.71
• Online since: September 2014
• Authors: Sheng Wu*
• Keywords: Finite Element Analysis (FEA), Light Gauge Steel-Framed Composite Walls, Thermal Properties, Web Slotted Studs

References

[1] China academy of building research. Energy conservation design standard for new heating residential buildings, JGJ 26-95. Beijing: China architecture & building press. (1996).

[2] Dawei Yin. Thermal and flexural property of light-gauge steel stud wall. Dissertation for the master degree in engineering of HIT. (2006).

[3] Jan Kosny, Jeffrey E. Christian. Reducing the uncertainties associated with using the ASHRAE zone method for R-value calculations of metal frame walls. ASHRAE transactions: symposia. SD-95-5-3: 779~788.

[4] C. Edward Barbour, John Goodrow: The thermal performance of steel-framed walls. ASHRAE transactions: Symposia. SD-95-5-2: 766~778.

[5] Jan Kosny, Jeffrey E. Christian. Thermal evaluation of several configurations of insulation and structural materials for some metal stud walls. Energy and buildings. 1995, 22: 157~163.

DOI: 10.1016/0378-7788(94)00913-5

[6] Guofeng Mao, Gudni Johannesson. Dynamic calculation of thermal bridges. Energy and buildings. 1997, 26: 233~240.

DOI: 10.1016/s0378-7788(97)00005-4

[7] Jiaquan Cui. Thermal and mechanical property of C shape stud with web perforation. Dissertation for the master degree in engineering of HIT. (2003).

[8] Han Bei. Thermal property and mechanical behavior under axial compression of light-gauge steel stud wall. Dissertation for the master degree in engineering of HIT. (2006).

[9] Ministry of construction P.R. China. Thermal design standard for residential buildings, GB50176-93. Beijing: China architecture & building press. (1993).

[10] China academy of building research. Light gauge steel framed assembly housing specification, JG/T 182-2005. Beijing: China architecture & building press. (2005).
