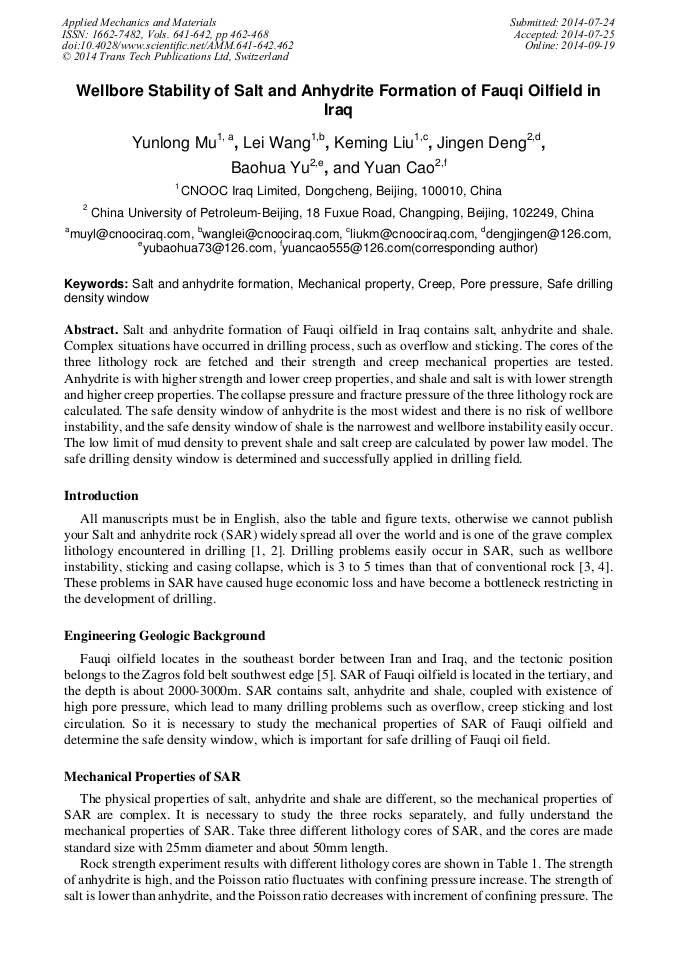

Wellbore Stability of Salt and Anhydrite Formation of Fauqi Oilfield in Iraq

Abstract:

Salt and anhydrite formation of Fauqi oilfield in Iraq contains salt, anhydrite and shale. Complex situations have occurred in drilling process, such as overflow and sticking. The cores of the three lithology rock are fetched and their strength and creep mechanical properties are tested. Anhydrite is with higher strength and lower creep properties, and shale and salt is with lower strength and higher creep properties. The collapse pressure and fracture pressure of the three lithology rock are calculated. The safe density window of anhydrite is the most widest and there is no risk of wellbore instability, and the safe density window of shale is the narrowest and wellbore instability easily occur. The low limit of mud density to prevent shale and salt creep are calculated by power law model. The safe drilling density window is determined and successfully applied in drilling field.

• Periodical: Applied Mechanics and Materials (Volumes 641-642)
• Pages: 462-468
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.641-642.462
• Online since: September 2014
• Authors: Yun Long Mu, Lei Wang, Ke Ming Liu, Jin Gen Deng, Bao Hua Yu, Yuan Cao*
• Keywords: Creep, Mechanical Property, Pore Pressure, Safe Drilling Density Window, Salt and Anhydrite Formation

References

[1] Hansen F D, Mellegard K D, Senseny P E. Elasticity and strength of ten natural rock salts. Proc First Conf. on the Mechanical Behavior of Salt. (1984), pp.71-83.

[2] Yichao Wang. Thick Salt-gypsum Layer Drilling Technology Optimization Research. Southwest Petroleum University, (2010).

[3] Yingkai Wu, Xiaobing Shi, Ping Chen, Rongguo Nie, qian Li, Guoyi Yang, Xiaoming Wu and Guoquan Teng. Deep salt-gypsum layer security situation and development direction of the drilling technology Research. Journal of natural gas industry, 02, (2004).

[4] Guangfei Xu. Deep Salt-gypsum Layer Safety Drilling Technology Application Research. Southwest Petroleum Institute, (2004).

[5] McLean M R, Addis M A. Wellbore Stability Analysis: A Review of Current Methods of Analysis and Their Field Application. SPE/IADC Drilling Conference. Society of Petroleum Engineers, (1990).

DOI: 10.2118/19941-ms

[6] Bol G M. The Effect of Various Polymers and Salts on Borehole and Cutting Stability in Water-Base Shale Drilling Fluids. SPE/IADC Drilling Conference. Society of Petroleum Engineers, (1986).

DOI: 10.2118/14802-ms

[7] Mian Chen, Yan Jin, Guangqing Zhang. Petroleum Engineering Rock Mechanics. Science and technology press, (2008), pp.21-24.
