3D Restructuring and Splicing Technology of Shape Space Frame

Abstract:

The 3D Shape Measuring Technology for physical objects has wide application in fields covering automatic detection, physical object profile modelling, automatic production, computer aided design/manufacturing and quality control, etc. Through the matching relations of several feature points between the partial 3D scanning point cloud data and the space frame, the transformation relations between different coordinate systems can be inferred. As for the inferring of the transformation parameters R and T, the SVD matrix decomposition algorithm has been used to acquire a better precision solution. According to the transformation relation, after registering the partial 3D scanning point cloud data and the space frame, through splicing the partial scanning point cloud data and the space frame data, the detection across the whole field on large-area objects can be realized, which will effectively increase the precision of three-dimensional measuring of large-area objects.

You might also be interested in these eBooks

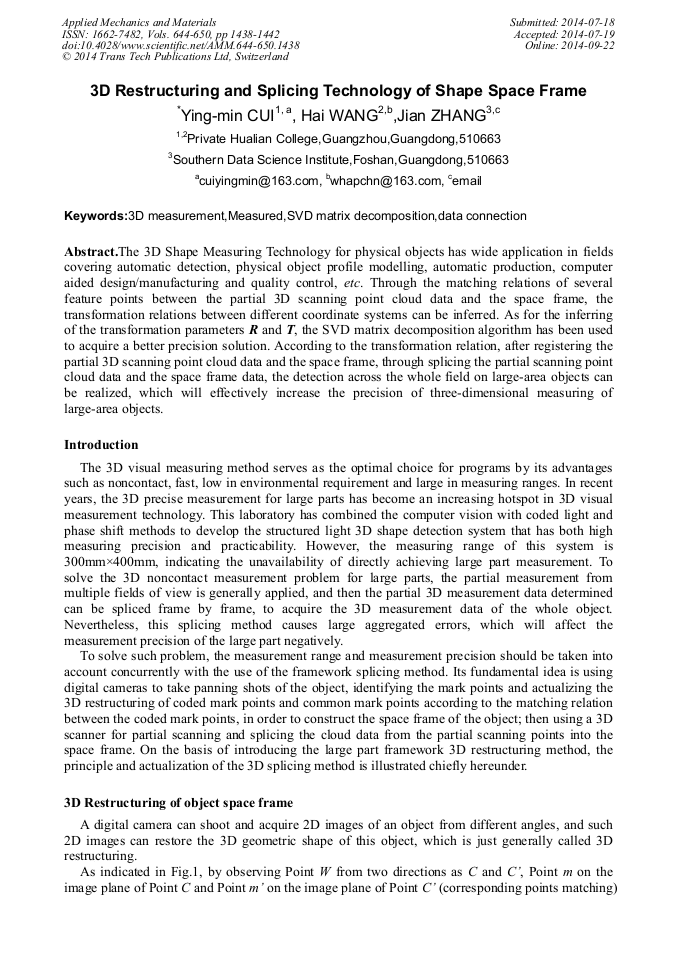

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 644-650)

Pages:

1438-1442

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.644-650.1438

Citation:

Cite this paper

Online since:

September 2014

Authors:

Ying Min Cui*, Hai Wang, Jian Zhang

Keywords:

3D Measurement, Data Connection, Measured, SVD Matrix Decomposition

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Goryn Daniel，Hein Soren．On the Estimation of Rigid Body Rotation from Noisy Data．IEEE Transactions on pattern Analysis and Machine Intelligence，April 2013, 17(12) : 1219-122O.

DOI: 10.1109/34.476514

Google Scholar

[2] A view-dress based algorithm for rebuilding 3D models[J]. The 13th IEEE Joint International Computer Science and Information Technology Conference, 2011, (01): 344-347.

Google Scholar

[3] HUANGM in，ZHANGJ Jan. The Dress Recognition Algorithm of Model Posture of Three Dimensions View in Dressing System [J]. JOURNAL OF ONGHUA UNIVERSITY, 2008, 29(5): 42-46.

Google Scholar

[4] S. Aljoscha, M.C. Chen. 3DAV exploration of video-based rendering technology in MPEG[J]. IEEE Transaction on Circuit and Systems for Video Technology, 2010, 14(03): 348-356.

DOI: 10.1109/tcsvt.2004.823395

Google Scholar

[5] Eggert DW, LorussoA, Fisher R B. Estirnating 3-D Rigid Body Transformations : a Comparison of four Major Algorithms. MachineVision and Application 2013, 9: 272-290.

Google Scholar
