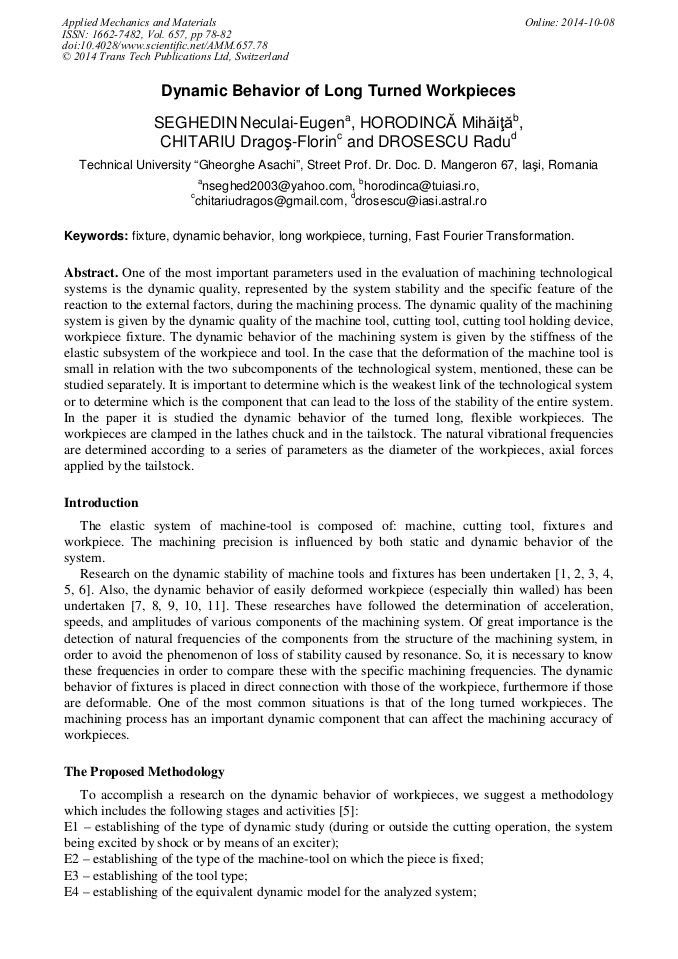

Dynamic Behavior of Long Turned Workpieces

Abstract:

One of the most important parameters used in the evaluation of machining technological systems is the dynamic quality, represented by the system stability and the specific feature of the reaction to the external factors, during the machining process. The dynamic quality of the machining system is given by the dynamic quality of the machine tool, cutting tool, cutting tool holding device, workpiece fixture. The dynamic behavior of the machining system is given by the behavior of the elastic subsystem of the workpiece and tool. In the case that the deformation of the machine tool is negligible in relation with the two subcomponents of the technological system, mentioned, these can be studied separately. It is important to determine which is the weakest link of the technological system or to determine which is the component that can lead to the loss of the stability of the entire system. In the paper it is studied the dynamic behavior of the turned long, flexible workpieces. The workpieces are clamped in the lathes chuck and in the tailstock. The natural vibrational frequencies are determined according to a series of parameters as the diameter of the workpieces, axial forces applied by the tailstock.

• Periodical: Applied Mechanics and Materials (Volume 657)
• Pages: 78-82
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.657.78
• Online since: October 2014
• Authors: Neculai Eugen Seghedin*, Mihăiţă Horodincă, Dragos Chitariu, Radu Drosescu
• Keywords: Dynamic Behavior, Fast Fourier Trasformation, Fixture, Long Workpiece, Turning

References

[1] S. Chiriacescu, Machine Tools Dynamics, (in Romanian), Tehnică Publishing, Bucureşti, (2004).

[2] V. A. Kudinov, Machine Tools Dynamics (in Romanian), Tehnică Publishing, Bucureşti, (1970).

[3] N. Seghedin, Considerations On The Dynamic Behaviour Of The Multiple Clamping Devices Of The Machine-Tools. Bul. Inst. Polit. Iaşi. LI (LV), 5, Construcţii de Maşini (2005) 217-222.

[4] N. Seghedin, The Dynamic Behavior of the Clamping Devices of the Workpieces for Series and Parallel Clamping on Machine-Tools. Bul. Inst. Polit. Iaşi. LII (LVI), 5A, Construcţii de Maşini (2006) 301-308.

[5] N. Seghedin, Study Of The Dynamic Behavior Of The Multiple Clamping Devices During The Milling Operations. Proceedings of 7th International Carpathian Control Conference ICCC' 2006, Ostrava-Beskydy, Czech Republic, May 29-31, 2006, pp.493-496.

[6] N. Seghedin, R. Drosescu, The Dynamic Behaviour of Series Multiple Fixtures. Bul. Inst. Polit. Iaşi. LIII (LVII), 5, Construcţii de Maşini (2007) 263-268.

[7] S. Bolsunovsky, V. Vermel, G. Gubanov, A. Leontiev Reduction of flexible workpiece vibrations with dynamic support realized as tuned mass damper. 14th CIRP Conference on Modeling of Machining Operations(CIRP CMMO), Procedia CIRP. 8 ( 2013 ) 230 – 234.

DOI: 10.1016/j.procir.2013.06.094

[8] G. Catania, N. Mancinelli, Theoretical experimental modeling of milling machines for the prediction of chatter vibration. International Journal of Machine Tools & Manufacture. 51 (2011) 339–348.

DOI: 10.1016/j.ijmachtools.2010.11.008

[9] Li-Jiang Wang, Xin Wang, Hai-Fang Zhao, Effect of the cutting ratio on cutting forces and the drill life in vibration drilling. International Journal of Advanced Manufacturing Technology. 24 (2004) 865–872.

DOI: 10.1007/s00170-003-1803-y

[10] K. Siva Kumar, G. Paulraj, Analysis and optimization of fixture under dynamic machining condition with chip removal effect. Journal of Intelligent Manufacturing. 25 (2014) 85–98.

DOI: 10.1007/s10845-012-0677-y

[11] K. Kolluru, D. Axinte, Coupled interaction of dynamic responses of tool and workpiece in thin wall milling. Journal of Materials Processing Technology. 213 (2013), 1565– 1574.

DOI: 10.1016/j.jmatprotec.2013.03.018
