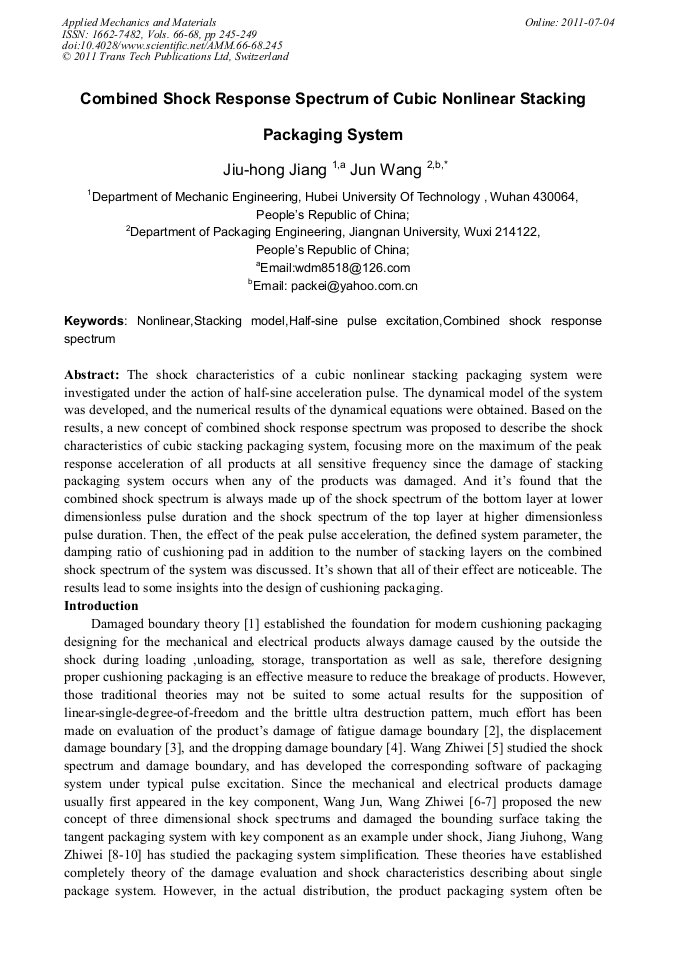

Combined Shock Response Spectrum of Cubic Nonlinear Stacking Packaging System

Abstract:

The shock characteristics of a cubic nonlinear stacking packaging system were investigated under the action of half-sine acceleration pulse. The dynamical model of the system was developed, and the numerical results of the dynamical equations were obtained. Based on the results, a new concept of combined shock response spectrum was proposed to describe the shock characteristics of cubic stacking packaging system, focusing more on the maximum of the peak response acceleration of all products at all sensitive frequency since the damage of stacking packaging system occurs when any of the products was damaged. And it’s found that the combined shock spectrum is always made up of the shock spectrum of the bottom layer at lower dimensionless pulse duration and the shock spectrum of the top layer at higher dimensionless pulse duration. Then, the effect of the peak pulse acceleration, the defined system parameter, the damping ratio of cushioning pad in addition to the number of stacking layers on the combined shock spectrum of the system was discussed. It’s shown that all of their effect are noticeable. The results lead to some insights into the design of cushioning packaging.

• Periodical: Applied Mechanics and Materials (Volumes 66-68)
• Pages: 245-249
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.66-68.245
• Online since: July 2011
• Authors: Jiu Hong Jiang, Jun Wang
• Keywords: Combined Shock Response Spectrum, Half-Sine Pulse Excitation, Nonlinear, Stacking Model

References

[1] R.E. Newton, Fragility assessment theory and practice. Monterey Research Laboratory, Inc. Monterey, California, (1968).

[2] G.J. Burgess, Product fragility and damage boundary theory[J]. Packaging Technology and Science, 1988, 15(10), 5-10.

[3] Z. L Wang, C. F Wu, D.C. Xi, Damage boundary of a packaging system under rectangular pulse excitation, Packaging Technology and Science 11 (1998).

DOI: 10.1002/(sici)1099-1522(199807/08)11:4<189::aid-pts430>3.0.co;2-7

[4] Z.W. Wang, On evaluation of product dropping damage, Packaging Technology and Science15 (2002).

[5] Z.W. Wang and C.Y. Hu, Shock spectra and damage boundary curves for nonlinear package cushioning system, Packaging Technology and Science12 (1999).

[6] J. Wang, Z.W. Wang, Damage boundary surface of a tangent nonlinear packaging system with critical components, Journal of Vibration and Shock27 (2008)166-167, 185.

[7] J. Wang, Z.W. Wang, 3-Dimensional shock response spectra characterizing shock response of a boundary surface of a tangent nonlinear packaging system with critical components, Journal of Vibration and Shock27 (2008)167-173, 185.

[8] J. H, Jiang, Z.W. Wang, Analysis the effects of fragility's response in dropping based on Matlab, Journal of Packaging Engineer25 (2004) 33-34.

[9] J. H, Jiang, Z.W. Wang, Analyzing the effect of acceleration response in predigestion the packaging system, Journal of HuBei University of Technology 20 (2005)56-59.

[10] J. H, Jiang, Z.W. Wang, The shock response of the packaging system based on key component under half sine pulse excitation, Journal of Packaging Engineer28 (2007)4-5.
