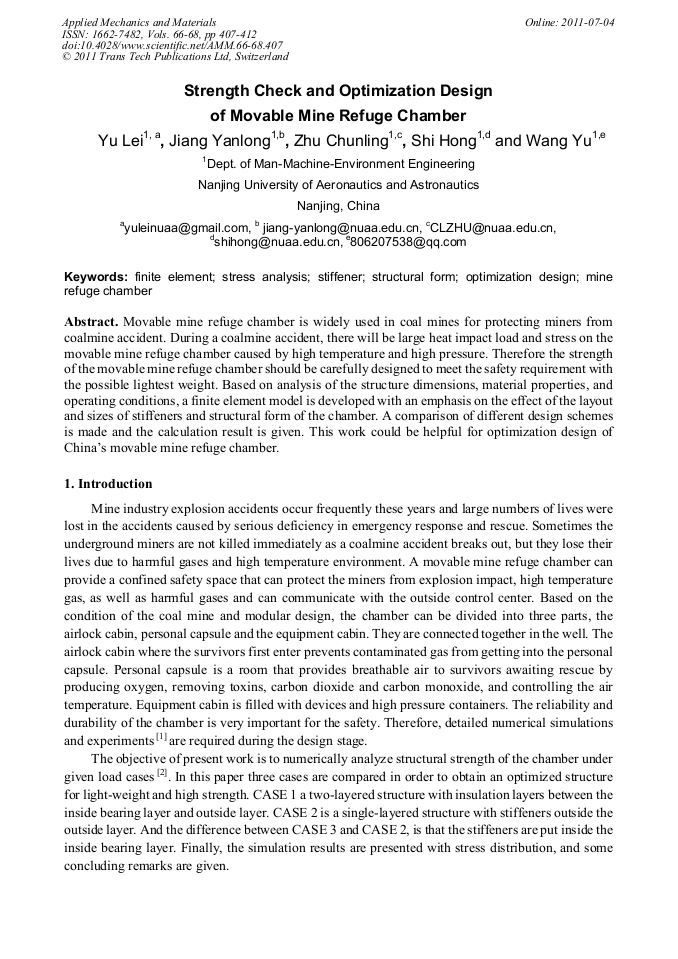

Strength Check and Optimization Design of Movable Mine Refuge Chamber

Abstract:

Movable mine refuge chamber is widely used in coal mines for protecting miners from coalmine accident. During a coalmine accident, there will be large heat impact load and stress on the movable mine refuge chamber caused by high temperature and high pressure. Therefore the strength of the movable mine refuge chamber should be carefully designed to meet the safety requirement with the possible lightest weight. Based on analysis of the structure dimensions, material properties, and operating conditions, a finite element model is developed with an emphasis on the effect of the layout and sizes of stiffeners and structural form of the chamber. A comparison of different design schemes is made and the calculation result is given. This work could be helpful for optimization design of China’s movable mine refuge chamber.

• Periodical: Applied Mechanics and Materials (Volumes 66-68)
• Pages: 407-412
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.66-68.407
• Online since: July 2011
• Authors: Yu Lei, Yan Long Jiang, Chun Ling Zhu, Hong Shi, Yu Wang
• Keywords: Finite Element, Mine Refuge Chamber, Optimization Design, Stiffener, Stress Analysis, Structural Form

References

[1] Fujiwara Takuya , Rinsan Shikenj Oha, Strength performance of drift pin joint with drying check (I) - Relationships between check index and joint strength, Journal of the Hokkaido Forest Products Research Institute, v 20, n 3, pp.1-7, 20.

[2] Liu Chao , Jiang Dongxiang, Hong Liangyou. The strength design and check of turbine generator based on FEA and fatigue evaluation, Advanced Materials Research, v 97-101, pp.3165-3168, (2010).

DOI: 10.4028/www.scientific.net/amr.97-101.3165

[3] Marques, Owen. Some reflections on elastoplastic stress calculation in finite element analysis, Computers and Structures, v 18, n 6, pp.1135-9, (1984).

DOI: 10.1016/0045-7949(84)90158-5

[4] Aaron S. Blicblau, Manmohan Singh, Eden McConnell and Melissa Pleaner. Stress analysis of a novice windsurfer sail by finite element analysis, Mathematical and Computer Modeling, v 47, n 11-12, pp.1108-16, June (2008).

DOI: 10.1016/j.mcm.2007.04.021

[5] Madan G. Kittur and Ronald L. Huston. Finite element mesh refinement criteria for stress analysis, Computers and Structures, v 34, n 2, pp.251-5, (1990).

DOI: 10.1016/0045-7949(90)90368-c

[6] Hong, C. Dawkins, W.P. Stress analysis of a U-Frame structure by the coupling of boundary and finite element methods, Engineering Analysis, v 5, n 2, pp.58-63, June (1988).

DOI: 10.1016/0264-682x(88)90039-1

[7] Li, Yun , Dynamic analysis and optimization design of the frame, ICCASM 2010 - 2010 International Conference on Computer Application and System Modeling, Proceedings, v 13, p V13234-V13238, (2010).

DOI: 10.1109/iccasm.2010.5622738

[8] Ayari, Pixin Zhang, Zhiming Ye. Finite element planar stress analysis, International Journal of Solids and Structures, v 33, n 29, pp.4365-78, Dec. (1996).

DOI: 10.1016/0020-7683(95)00237-5

[9] Ma Xun , Finite element analysis and topology optimization design of mounting bracket structure, Journal of Shenyang University of Technology, v 30, n 3, pp.313-17, June (2008).

[10] Zhang Chun-Yu, Wang Zhen-Qing, Han Yu-Lai and Zhu Da-Lei. Optimization design of pre-stress space truss structures, Journal of Harbin Engineering University, v 27, n 5, pp.718-727, October (2006).
