Effect of Further Calcination on the Phase Structure of LiMn2O4 Prepared by a Solution Combustion Synthesis

Gui Yang Liu; Jun Ming Guo; Bao Sen Wang; Ying He

doi:10.4028/www.scientific.net/AMM.66-68.768

Paper Titles

A Novel Determination Method of IPMC Young’s Modulus Based on Cantilever Resonance Theory
p.747

Free Vibrations of Beams with Arbitrary Boundary Conditions Based on Wave Propagation Method
p.753

Research on Multitask Collaborative Scheduling Problem with Heuristic Strategies
p.758

A Templated Carbon Prepared by Using a Clinoptilolite-Ca Mineral as Template and Furfuralcohol as Carbon Source: Pore Structure and Electrochemical Performance in H₂SO₄
p.764

Effect of Further Calcination on the Phase Structure of LiMn₂O₄ Prepared by a Solution Combustion Synthesis
p.768

The Phase Structure of Fe Doped LiFe_XMn_2-XO₄ Prepared by a Molten-Salt Combustion Synthesis
p.772

Axisymmetric Compression Wave Propagation in a Magneto-Electro-Elastic Cylinder
p.776

A Research on Mobile Agent Technique and Application Development
p.782

Prediction of Wear Volumes to 45 Steel of NBR Based on Neural Network
p.788

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 66-68Effect of Further Calcination on the Phase...

Effect of Further Calcination on the Phase Structure of LiMn₂O₄ Prepared by a Solution Combustion Synthesis

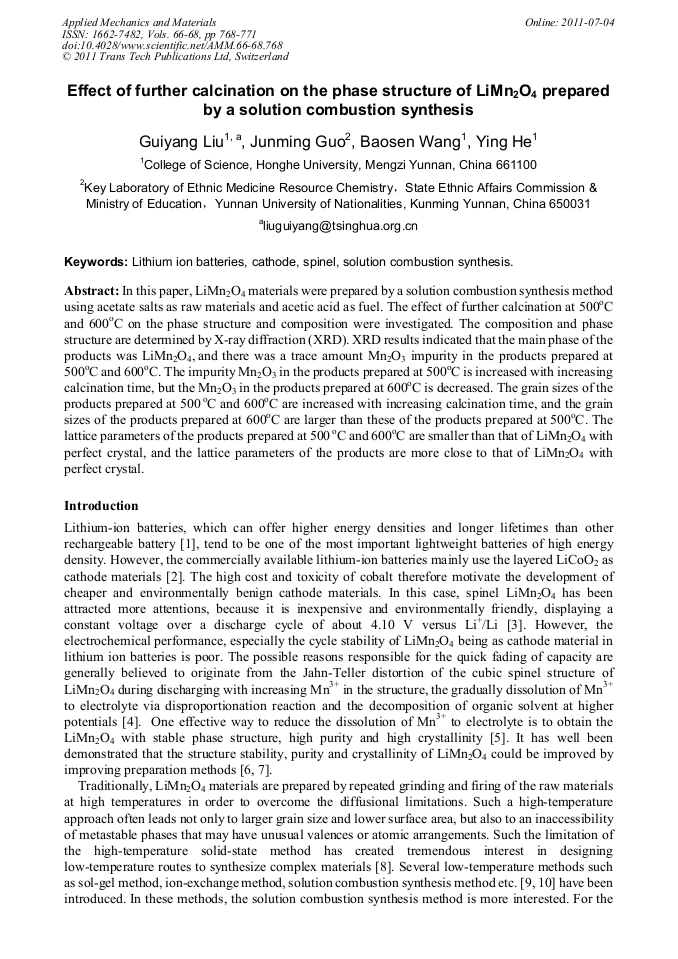

Abstract:

In this paper, LiMn2O₄ materials were prepared by a solution combustion synthesis method using acetate salts as raw materials and acetic acid as fuel. The effect of further calcination at 500°C and 600°C on the phase structure and composition were investigated. The composition and phase structure are determined by X-ray diffraction (XRD). XRD results indicated that the main phase of the products was LiMn2O₄,and there was a trace amount Mn₂O₃ impurity in the products prepared at 500°C and 600°C. The impurity Mn₂O₃ in the products prepared at 500°C is increased with increasing calcination time, but the Mn₂O₃ in the products prepared at 600°C is decreased. The grain sizes of the products prepared at 500°C and 600°C are increased with increasing calcination time, and the grain sizes of the products prepared at 600°C are larger than these of the products prepared at 500°C. The lattice parameters of the products prepared at 500°C and 600°C are smaller than that of LiMn₂O₄ with perfect crystal, and the lattice parameters of the products are more close to that of LiMn₂O₄ with perfect crystal.
