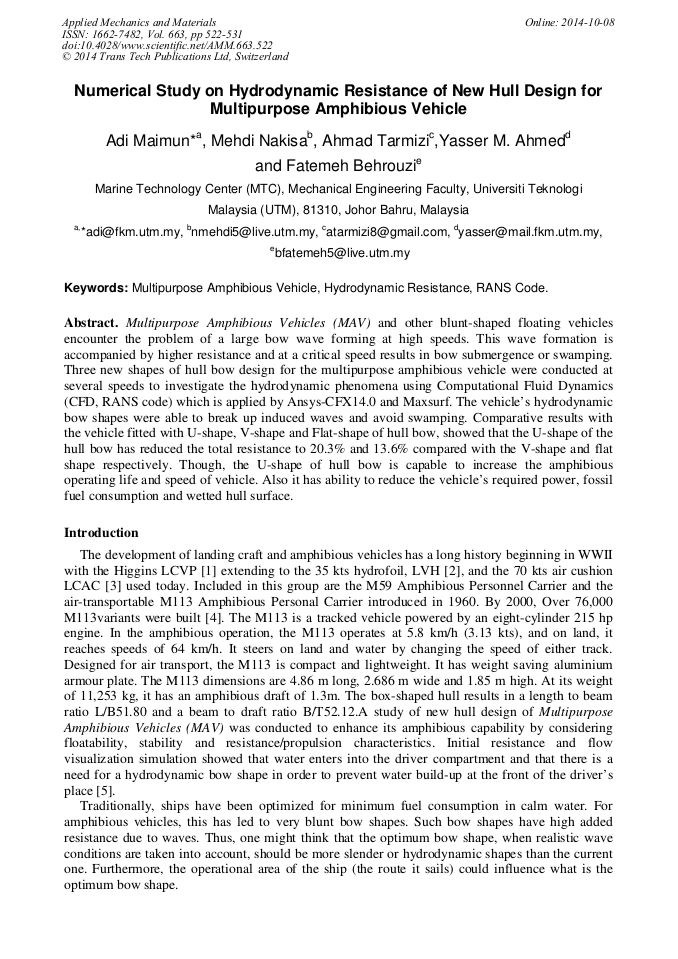

Numerical Study on Hydrodynamic Resistance of New Hull Design for Multipurpose Amphibious Vehicle

Abstract:

Multipurpose Amphibious Vehicles (MAV) and other blunt-shaped floating vehicles encounter the problem of a large bow wave forming at high speeds. This wave formation is accompanied by higher resistance and at a critical speed results in bow submergence or swamping. Three new shapes of hull bow design for the multipurpose amphibious vehicle were conducted at several speeds to investigate the hydrodynamic phenomena using Computational Fluid Dynamics (CFD, RANS code) which is applied by Ansys-CFX14.0 and Maxsurf. The vehicle’s hydrodynamic bow shapes were able to break up induced waves and avoid swamping. Comparative results with the vehicle fitted with U-shape, V-shape and Flat-shape of hull bow, showed that the U-shape of the hull bow has reduced the total resistance to 20.3% and 13.6% compared with the V-shape and flat shape respectively. Though, the U-shape of hull bow is capable to increase the amphibious operating life and speed of vehicle. Also it has ability to reduce the vehicle’s required power, fossil fuel consumption and wetted hull surface.

• Periodical: Applied Mechanics and Materials (Volume 663)
• Pages: 522-531
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.663.522
• Online since: October 2014
• Authors: Adi Maimun, Mehdi Nakisa, Ahmad Tarmizi, Yasser M. Ahmed, Fatemeh Behrouzi
• Keywords: Hydrodynamic Resistance, Multipurpose Amphibious Vehicle, RANS Code

References

[1] G. Haddock, R. Latorre, A look back on 1942combat and production, an example of successful employee empowerment at Higgins Industries, Journal of Ship Production. 11, 3 (1995) 159-170.

DOI: 10.5957/jsp.1995.11.3.159

[2] D. Carl, New amphibious vehicle progress part 3nlanding craft, assault LCA and landing vehicle hydrofoil (LVH), Naval Engineering Journal. 77, 3 (1965) 18-25.

[3] R. Alexander, R.M. Alexander, Design of landing craft for Marine Corps action, Naval Engineering Journal. 75, 1 (1963) 163-170.

DOI: 10.1111/j.1559-3584.1963.tb04673.x

[4] C. Foss, Jane's Tank and Combat Vehicle Recognition Guide, Harper Collins, New York, (2003).

[5] S. Helvacioglu, I.H. Helvacioglu, B. Tuncer, Improving the river crossing capability of an amphibious vehicle, Ocean Engineering. 38 (2011) 2201-2207.

DOI: 10.1016/j.oceaneng.2011.10.001

[6] MarineCorpsWarfightingPublication, EmploymentofAmphibiousAssaultVehicles (AAVs), http: /www. doctrine. usmc. mils, MCWP3-13 (2005).

[7] J.G. Sticker, A.J. Becnel, J.G. Purnell, Advanced waterjet systems, Nav. Eng. J. 106, 5 (1994) 100-109.

[8] H.H. Chun, B.H. Ahn and S.M. Cha, Self-Propulsion Test and Analysis of an Amphibious Tracked Vehicle with Waterjet, in: Proceeding of World Maritime Technology Conference and SNAME Annual Meeting, Paper No. D6 (D-133), USA, (2003).

[9] A. Maimun, A., M.Y. Ahmed., A. Priyanto, Y. S. Ang., M. Nakisa., Assessment of Ship-Bank Interactions on LNG Tanker in Shallow Water, Department of Marine Technology, University Technology Malaysia, Johor Bahru, Malaysia, The 6th Asia-Pacific Workshop on Marine Hydrodymics-PHydro2012Malaysia, September 3-4, (2012).

DOI: 10.11113/jt.v66.2500

[10] M. Nakisa, A. Maimun, A.Y. Sian, Yasser M. Ahmed, A. Priyanto, Jaswar, F. Behrouzi, Three-dimensional numerical analysis of restricted water effects on the flow pattern around hull and propeller plane of LNG ship, International Journal of Mechanics. 3, 7 (2013).

DOI: 10.11113/jt.v66.2490

[11] L. Larsson and H. C Raven, Principles of Naval Architecture Series - Ship Resistance and Flow, Society of Naval Architects and Marine Engineers (SNAME), (2010).

[12] K. Minsaas and S. Steen, Lecture Notes - Ship Resistance, Department of Marine Technology – NTNU, (2008).
