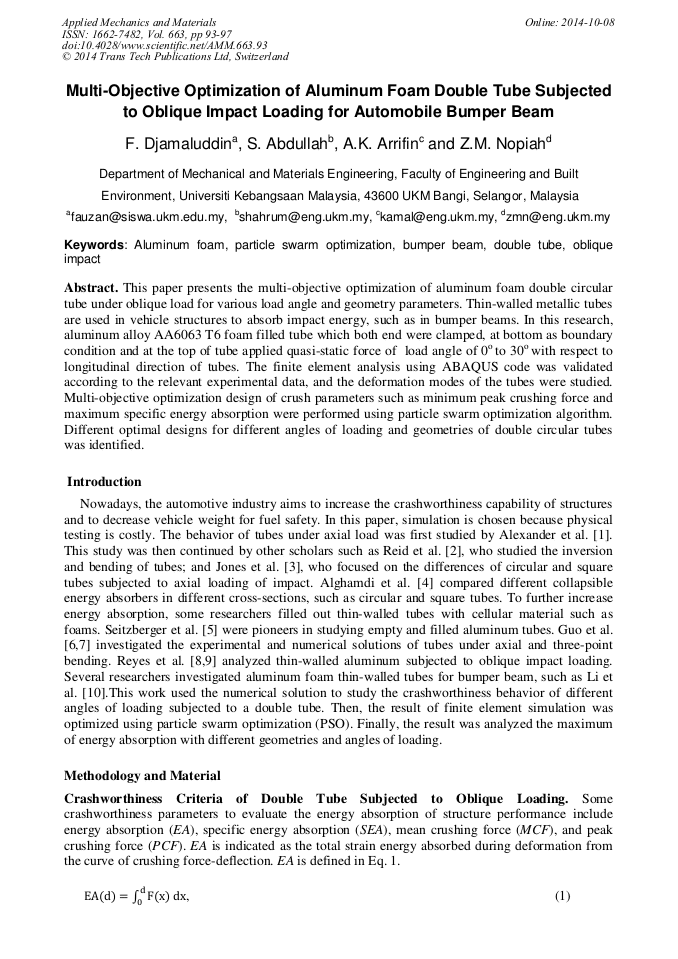

Multi-Objective Optimization of Aluminum Foam Double Tube Subjected to Oblique Impact Loading for Automobile Bumper Beam

Abstract:

This paper presents the multi-objective optimization of aluminum foam double circular tube under oblique load for various load angle and geometry parameters. Thin-walled metallic tubes are used in vehicle structures to absorb impact energy, such as in bumper beams. In this research, aluminum alloy AA6063 T6 foam filled tube which both end were clamped, at bottom as boundary condition and at the top of tube applied quasi-static force of load angle of 0^o to 30^o with respect to longitudinal direction of tubes. The finite element analysis using ABAQUS code was validated according to the relevant experimental data, and the deformation modes of the tubes were studied. Multi-objective optimization design of crush parameters such as minimum peak crushing force and maximum specific energy absorption were performed using particle swarm optimization algorithm. Different optimal designs for different angles of loading and geometries of double circular tubes was identified.

• Periodical: Applied Mechanics and Materials (Volume 663)
• Pages: 93-97
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.663.93
• Online since: October 2014
• Authors: F. Djamaluddin*, Shahrum Abdullah, A.K. Arrifin, Z.M. Nopiah
• Keywords: Bumper Beam, Double Tube, Foam Aluminum, Oblique Impact, Particle Optimization Swarm

References

[1] J.M. Alexander, An approximate analysis of the collapse of thin cylindrical shells under axial loading. Q J Mech Appl Math. 13 (1960) 10–5.

DOI: 10.1093/qjmam/13.1.10

[2] S.R. Reid, Plastic deformation mechanisms in axial compressed metal tubes used as impact energy absorbers. Int J Mech Sci. 35, 12, (1993) 1035–52.

DOI: 10.1016/0020-7403(93)90054-x

[3] N. Jones, Structural impact. Cambridge University Press, (1989).

[4] A.A.A. Alghamdi, Collapsible impact energy absorbers: an overview. Thin-Walled Struct. 39, 2, (2001) 189–213.

DOI: 10.1016/s0263-8231(00)00048-3

[5] M. Seitzberger, R.F. Rammerstorfer, H.P. Degischer, R. Gradinger, Crushing of axially compressed steel tubes filled with aluminium foam, Acta Mech. 125 (1997) 93–105.

DOI: 10.1007/bf01177301

[6] L.W. Guo, J.L. Yu, Z.B. Li, Experimental studies on the quasi-static bending behavior of double square columns filled with aluminum foams, Acta Mech. 213, (2010) 349–58.

DOI: 10.1007/s00707-010-0281-1

[7] L.W. Guo, J.L. Yu, Dynamic bending response of double cylindrical tubes filled with aluminum foam. Int J Impact Eng. 38, 2–3, (2011) 85–94.

DOI: 10.1016/j.ijimpeng.2010.10.004

[8] A. Reyes, M. Langseth, O.S. Hopperstad, Crashworthiness of aluminum extru- sions subjected to oblique loading: experiments and numerical analyses, Int J Mech Sci. 44, 9, (2002) 1965–84.

DOI: 10.1016/s0020-7403(02)00050-4

[9] A. Reyes, M. Langseth, O.S. Hopperstad, Square aluminum tubes subjected to oblique loading, Int J Impact Eng. 28, 10, (2003), p.1077–106.

DOI: 10.1016/s0734-743x(03)00045-9

[10] Z.B. Li, J.L. Yu, L.W. Guo, Deformation and energy absorption of aluminum foam-filled tubes subjected to oblique loading, Int J. of Mechanical Sciences. 54 (2012) 48–56.

DOI: 10.1016/j.ijmecsci.2011.09.006

[11] V.S. Deshpande, N.A. Fleck, Isotropic Constitutive Models For Metallic Foams, Journal of The Mechanics And Physics of Solids. 48 (2000) 1253-1283.

DOI: 10.1016/s0022-5096(99)00082-4
