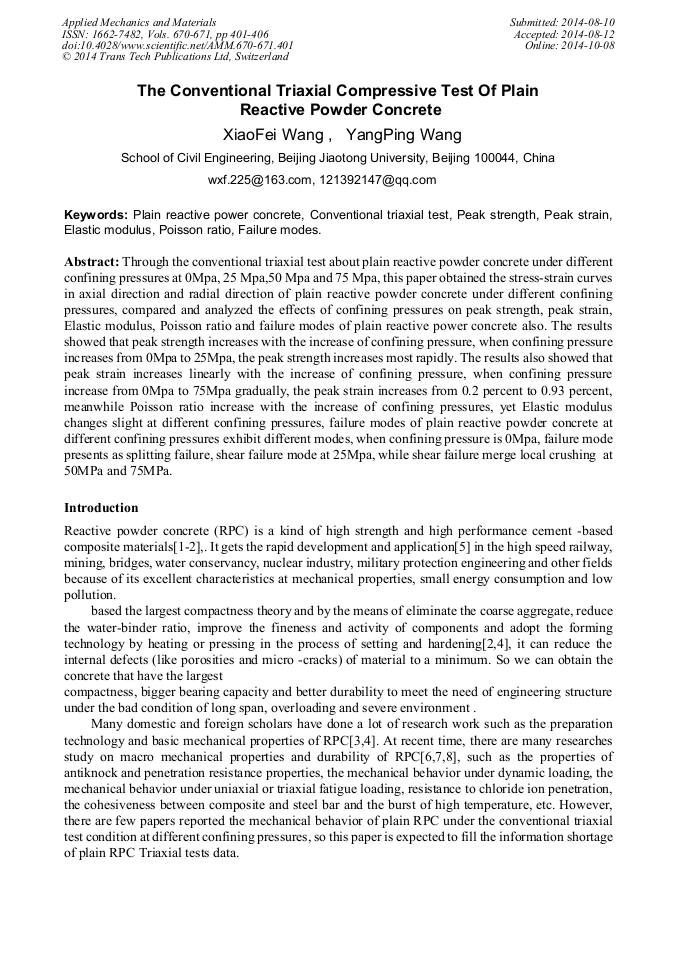

The Conventional Triaxial Compressive Test of Plain Reactive Powder Concrete

Abstract:

Through the conventional triaxial test about plain reactive powder concrete under different confining pressures at 0Mpa, 25 Mpa,50 Mpa and 75 Mpa, this paper obtained the stress-strain curves in axial direction and radial direction of plain reactive powder concrete under different confining pressures, compared and analyzed the effects of confining pressures on peak strength, peak strain, Elastic modulus, Poisson ratio and failure modes of plain reactive power concrete also. The results showed that peak strength increases with the increase of confining pressure, when confining pressure increases from 0Mpa to 25Mpa, the peak strength increases most rapidly. The results also showed that peak strain increases linearly with the increase of confining pressure, when confining pressure increase from 0Mpa to 75Mpa gradually, the peak strain increases from 0.2 percent to 0.93 percent, meanwhile Poisson ratio increase with the increase of confining pressures, yet Elastic modulus changes slight at different confining pressures, failure modes of plain reactive powder concrete at different confining pressures exhibit different modes, when confining pressure is 0Mpa, failure mode presents as splitting failure, shear failure mode at 25Mpa, while shear failure merge local crushing at 50MPa and 75MPa.

• Periodical: Applied Mechanics and Materials (Volumes 670-671)
• Pages: 401-406
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.670-671.401
• Online since: October 2014
• Authors: Xiao Fei Wang*, Yang Ping Wang
• Keywords: Conventional Triaxial Test, Elastic Modulus, Failure Modes, Peak Strain, Peak Strength, Plain Reactive Power Concrete, Poisson Ratio

References

[1] Richard, P. and Cheyrezy, M. Cement and Concrete Research. Vol 25(7): 1501-1511.

[2] Ju Yang, Liu HongBin and Tian KaiPei et al. SCIENCE CHNA. Vol 56(2): 458-470.

[3] He Feng and Huang ZhengYu. China Concrete and Cement Products. Vol 2000(4): 3-7.

[4] Yan GuangJie, Yan GuiPing, An MingZhe and Chen YiZhou. Journal of the China Railway Society. Vol 26(2): 116-119.

[5] Bai Hong and Gao Ri. 2003. Vol Building Science. 19(4): 51-54.

[6] Yao ZhiXiong and Zhou Jian. Journal of Building Materials. Vol 8(4): 356-361.

[7] Huang Yu, Wang BiBin, Chen WanXiang and Bi YaJun. Journal of PLA University of Science and Technolog. Vol 4(5): 64-67.

[8] Yu ZinRuo, Qin Xing and An MingZhe. China Railway Science. Vol 3(2): 38-42.
