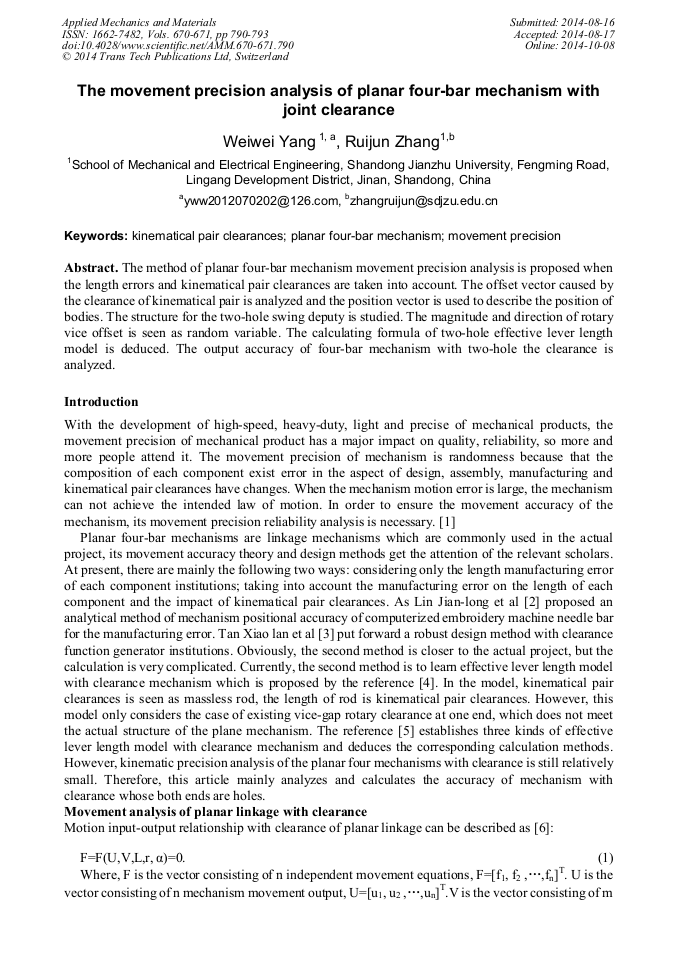

The Movement Precision Analysis of Planar Four-Bar Mechanism with Joint Clearance

Abstract:

The method of planar four-bar mechanism movement precision analysis is proposed when the length errors and kinematical pair clearances are taken into account. The offset vector caused by the clearance of kinematical pair is analyzed and the position vector is used to describe the position of bodies. The structure for the two-hole swing deputy is studied. The magnitude and direction of rotary vice offset is seen as random variable. The calculating formula of two-hole effective lever length model is deduced. The output accuracy of four-bar mechanism with two-hole the clearance is analyzed.

• Periodical: Applied Mechanics and Materials (Volumes 670-671)
• Pages: 790-793
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.670-671.790
• Online since: October 2014
• Authors: Wei Wei Yang, Rui Jun Zhang*
• Keywords: Kinematical Pair Clearances, Movement Precision, Planar Four-Bar Mechanism

References

[1] Ying Li: Machinery design & manufacture Vol. 29 (1990), pp.2-5.

[2] Jianlong Lin, Zhiwen Luo and Li Zhang: Journal of textile research Vol. 31 (2010), pp.131-134.

[3] Xiaolan Tan, Jianyou Han and Lizhou Chen: Journal of university of science and technology Beijing Vol. 26 (2004), pp.416-419.

[4] LEE S J, GILMORE B J: Journal of Mechanical Design Vol. 113 (1991), pp.84-90.

[5] Huixin Guo, Wenhui Yue: Journal of mechanical engineering Vol. 48 (2012), pp.75-81.

[6] Zhongxiu Shi, Feng Wang: Mechanical science and technology Vol. 16 (1997), pp.115-121.
