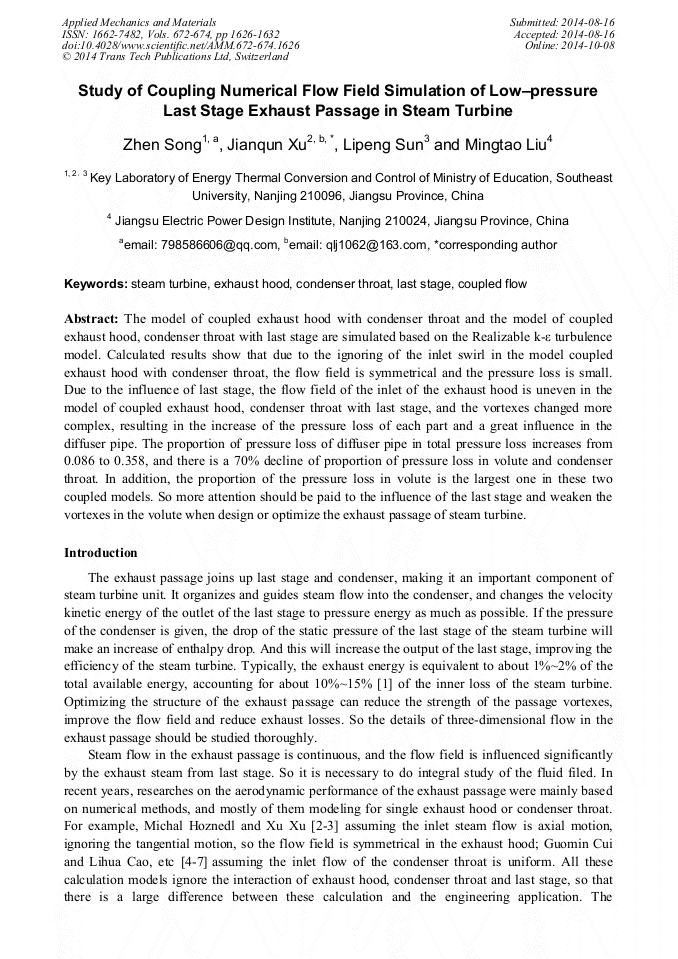

Study of Coupling Numerical Flow Field Simulation of Low-Pressure Last Stage Exhaust Passage in Steam Turbine

Abstract:

The model of coupled exhaust hood with condenser throat and the model of coupled exhaust hood, condenser throat with last stage were simulated based on the turbulence model Realizable k-ε. Calculated results show that due to the ignoring of the inlet swirl in the model coupled exhaust hood with condenser throat, the flow field is symmetrical and the pressure loss is small. Due to the influence of last stage, in the model of coupled exhaust hood, condenser throat with last stage, the flow field of the inlet of the exhaust hood is uneven, and the vortexes changed more complex, resulting in the increase of the pressure loss of each part and a greater influence in the diffuser pipe. The proportion of pressure loss of diffuser pipe in total pressure loss increases from 0.086 to 0.358, and there is a 70% decline of proportion of pressure loss in volute and condenser throat. In addition, the proportion of the pressure loss in volute is the largest one in these two coupled models. So more attention should be paid in the influence of the last stage, and weaken the vortexes in the volute when designing or optimizing the exhaust passage of steam turbine.

• Periodical: Applied Mechanics and Materials (Volumes 672-674)
• Pages: 1626-1632
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.672-674.1626
• Online since: October 2014
• Authors: Zhen Song, Jian Qun Xu*, Li Peng Sun, Ming Tao Liu
• Keywords: Condenser Throat, Coupled Flow, Exhaust Hood, Last Stage, Steam Turbine

References

[1] John I, Cofer J. Advances in Steam Path Technology[J]. Journal of Engineering for Gas Turbines and Power, 1996, 118(4): 337-352.

DOI: 10.1115/1.2816595

[2] Xu X, Kang S, Hirsch C. Numerical Simulation of the 3DViscous Flow in the Exhaust Casing of a Low Pressure Steam Turbine[J], ASME Paper, 2001, GT-0487.

DOI: 10.1115/2001-gt-0487

[3] Li Z., Li J., Yan X., et al. Investigation on the Flow Pattern and Aerodynamic Performance of Last Stage and Exhaust Hood for Large Power Steam Turbines[C], ASME Turbo Expo 2012, GT2012-69291. (in Chinese).

DOI: 10.1115/gt2012-69291

[4] Pacak A. Numerical Solutions of Design Influences of the Flow in One-Stream Turbine Exhaust Hood[C]. 1stIC-SCCE, 2004, Athens.

[5] Xie Weiliang，Wang Hongtao，Zhu Xiaocheng，et a1．PIV experimental investigation of the flow field in a low-pressure exhaust hood of a steam turbine[J]．Journal of Experiments in Fluid Mechanics，2011，10(5)：64-69.

[6] Shunsuke Mizumi, Kouji Ishibashi, Yasuaki Sawamura. Steam Turbine Exhaust Hood with Swirl Flow Separation Ducts[J]. Proceedings of ASME Turbo Expo 2012, GT2012-68315.

DOI: 10.1115/gt2012-68315

[7] Cao Lihua，Liu Jia，Li Yong，et al．3D numerical analysisof wet steam flow in exhaust hoods of steam turbines[J]．Proceedings of the CSEE，2012，32(29)：79-86.
