The Setting Calculation of the Current Increment Protection of the Traction Power Supply System for High-Speed Railways

Abstract:

In order to study deeply the cause of mal-operation of the current increment protection and then redo the setting calculation, the all-parallel AT traction network model and the simulation model of Electric Multiple Units (EMU) are established. Using the model that has been established and Simulink simulation tool, the situation while the EMU is being started, passing neutral section or the traction network has grounding fault with interruption was simulated. The simulation result show that the current increment when the EMU starting is significantly different from that situation when fault occurring. While the situation when the EMU passing neutral section is the opposite. So we can draw a conclusion that the current increment protection will not appear mal-operation when the EMU starting and when passing neutral section may appear mal-operation. Finally, the current increment protection setting principle has been improved, and its feasibility has been verified.

You might also be interested in these eBooks

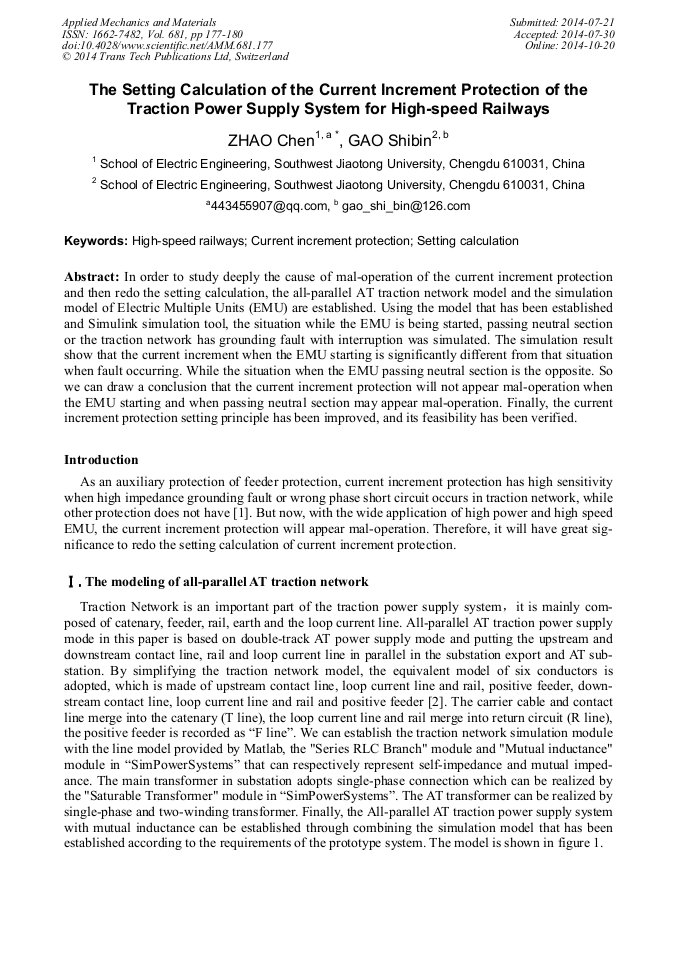

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 681)

Pages:

177-180

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.681.177

Citation:

Cite this paper

Online since:

October 2014

Authors:

Chen Zhao*, Shi Bin Gao

Keywords:

Current Increment Protection, High-Speed Railways, Setting Calculation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] GAO Shibin. Study on novel protective schemes of traction power supply systems for high speed railways [D]. Southwest Jiaotong University. (2004)14-37.

Google Scholar

[2] SHI Ruixia. Digital simulation system for fault of overhead contact lines [D]. Southwest Jiaotong University. (2007)25-56.

Google Scholar

[3] SONG Wensheng. Control and modulation algorithm of railway electrical traction converter [D]. Southwest Jiaotong University. (2011)49-80.

Google Scholar

[4] Akagi H, Kanazawa Y, Nabae A. Instantaneous reactive power compensators comprising switching devices without energy storage components[J]. Industry Applications, IEEE Transactions on. (1984)625-630.

DOI: 10.1109/tia.1984.4504460

Google Scholar

[5] CHEN Guangtai. The parameters of the charging resistance locomotive traction converters[J]. Diesel Locomotive. (2009)18-20.

Google Scholar

[6] LI Guanjun, FENG Xiaoyun, WANG Lijun. Research and simulation on auto passing phase separation control strategy of high speed EMU [J]. Transactions of China Electrotechnical Society. (2007) 181-185.

Google Scholar
