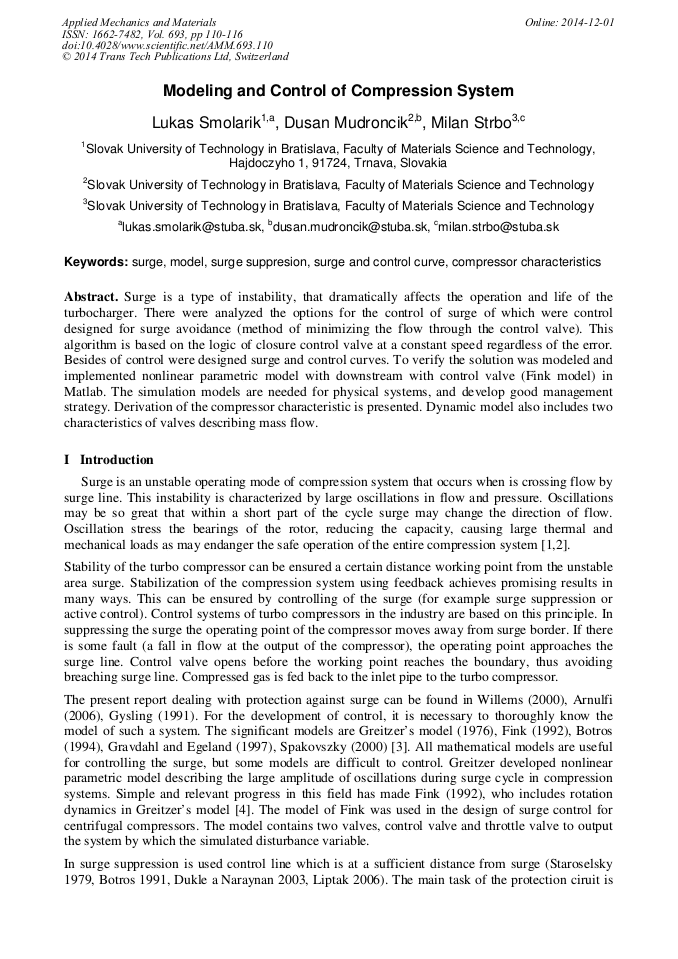

Modeling and Control of Compression System

Abstract:

Surge is a type of instability, that dramatically affects the operation and life of the turbocharger. There were analyzed the options for the control of surge of which were control designed for surge avoidance (method of minimizing the flow through the control valve). This algorithm is based on the logic of closure control valve at a constant speed regardless of the error. Besides of control were designed surge and control curves. To verify the solution was modeled and implemented nonlinear parametric model with downstream with control valve (Fink model) in Matlab. The simulation models are needed for physical systems, and develop good management strategy. Derivation of the compressor characteristic is presented. Dynamic model also includes two characteristics of valves describing mass flow.

• Periodical: Applied Mechanics and Materials (Volume 693)
• Pages: 110-116
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.693.110
• Online since: December 2014
• Authors: Lukas Smolarik, Dušan Mudrončík, Milan Strbo
• Keywords: Compressor Characteristics, Control Curve, Model, Surge, Surge Suppresion

References

[1] B.G. Liptak, Process Control and Optimization. Volume II, United States: CRC Press., ISBN 0-8493-1081-4, 2006, pp.1825-1855.

[2] J.V. Helvoirt, Centrifugal Compressor Surge, Modeling and Identification for Control, Eidhoven: Lpskamp B. V., ISBN 978-90-386-1095-5, (2007).

[3] P. T Willems, Modeling and Bounded Feedback Stabilization of Centrifugal Compressor Surge, Eidhoven: University Press Facilities. ISBN 90-386-2931-1, (2000).

[4] D. Fink, N. Cumpsty, E. Greitzer, Surge Dynamics in a Free-Spool Centrifugal Compressor System, Journal of Turbomachinery, Vol. 114, No. 2 (1992), p.321–332.

DOI: 10.1115/1.2929146

[5] E.M. Greitzer, Surge and rotating stall in axial flow compressors: Part I—Theoretical compression system model. ASME J. Engineering for Power, 98 (1976), p.190–198.

DOI: 10.1115/1.3446138

[6] Meuleman, H.J. Corina, Measurement and Unsteady Flow Modelling of Centrifugal Compressor Surge. Eidhoven: University Press Facilities. ISBN 90-386-2564-2, 20002.

[7] H.T. Hovd, Modeling, state observation and control of Compression System, Norway, (2007).

[8] T.S. Grong, Modeling of Compressor Characteristics and Active Surge Control, Norway, (2009).

[9] E.M. Greitzer, Surge and rotating stall in axial flow compressors: Part II—Experimental results and comparison with theory. Engineering for Power, ASME Vol. 98 (1976), p.199–217.

DOI: 10.1115/1.3446139

[10] J.T. Gravdahl, O. Egeland, Compressor Surge and Control Rotating Stall, Modeling and Control. Springer 1999, ISBN 978-1-4471-1211-2, (1999).

DOI: 10.1007/978-1-4471-0827-6_1

[11] L. Smolarik, D. Mudroncik, M. Strbo, Compressor and throttle characteristics for models. Applied Mechanics and Materials, Vol. 404 (2013) 200-206.

DOI: 10.4028/www.scientific.net/amm.404.200
