Static Finite Element Analysis on Cast Shell of a 100 kW Single Screw Expander

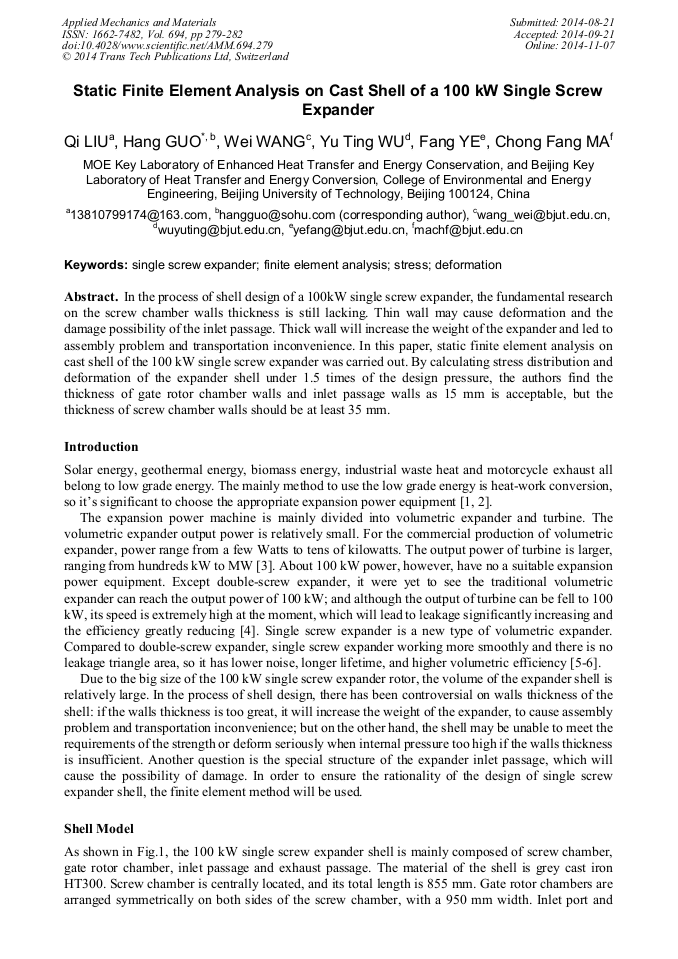

Abstract:

In the process of shell design of a 100kW single screw expander, the fundamental research on the screw chamber walls thickness is still lacking. Thin wall may cause deformation and the damage possibility of the inlet passage. Thick wall will increase the weight of the expander and led to assembly problem and transportation inconvenience. In this paper, static finite element analysis on cast shell of the 100 kW single screw expander was carried out. By calculating stress distribution and deformation of the expander shell under 1.5 times of the design pressure, the authors find the thickness of gate rotor chamber walls and inlet passage walls as 15 mm is acceptable, but the thickness of screw chamber walls should be at least 35 mm.

• Periodical: Applied Mechanics and Materials (Volume 694)
• Pages: 279-282
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.694.279
• Online since: November 2014
• Authors: Qi Liu, Hang Guo*, Wei Wang, Yu Ting Wu, Fang Ye, Chong Fang Ma
• Keywords: Deformation, Finite Element Analysis (FEA), Single Screw Expander, Stress

References

[1] B.F. Tchanche, Gr. Lambrinos: Renewable & Sustainable Energy Reviews, Vol. 15 (2011), p.3964.

[2] B. Cao, and W. Li: Journal of Tianjin University, Vol. 43 (2010), p.309.

[3] J. Zhang, X. R. Meng and X. L. Ma, in: Low Grade Heat Source Utilization, edited by Chemical Industry Press, Beijing (2012) (In Chinese).

[4] A.F.O. Falcão, L.M.C. Gato, and E.P.A.S. Nunes: Renewable Energy, Vol. 50 (2013), p.962.

[5] Y. H. Peng: Performance Study of the Compressed-Air Power System Based on Single-Screw Expander. Master thesis: Beijing University of Technology, (2013).

[6] W. Wang, Y. T. Wu and C. F. Ma: Applied Thermal Engineering, Vol. 31 (2011), p.3685.

[7] C. B. Wen, in: Machine Design Handbook, edited by China Machine Press, Beijing (2010) (In Chinese).
