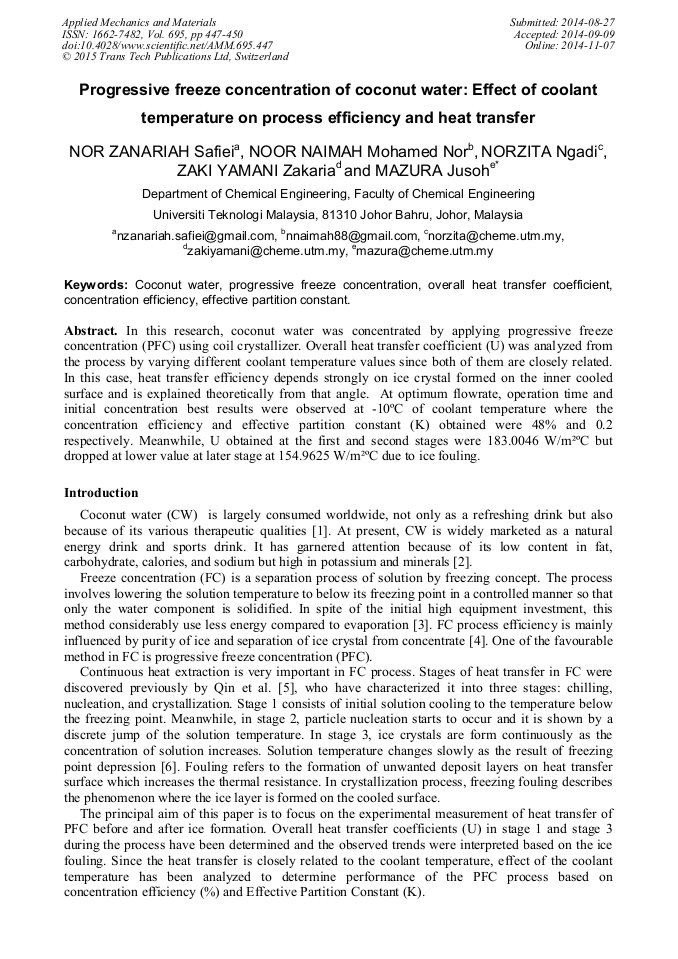

Progressive Freeze Concentration of Coconut Water: Effect of Coolant Temperature on Process Efficiency and Heat Transfer

Abstract:

In this research, coconut water was concentrated by applying progressive freeze concentration (PFC) using coil crystallizer. Overall heat transfer coefficient (U) was analyzed from the process by varying different coolant temperature values since both of them are closely related. In this case, heat transfer efficiency depends strongly on ice crystal formed on the inner cooled surface and is explained theoretically from that angle. At optimum flowrate, operation time and initial concentration best results were observed at-10oC of coolant temperature where the concentration efficiency and effective partition constant (K) obtained were 48% and 0.2 respectively. Meanwhile, U obtained at the first and second stages were 183.0046 W/m2oC but dropped at lower value at later stage at 154.9625 W/m2oC due to ice fouling.

• Periodical: Applied Mechanics and Materials (Volume 695)
• Pages: 447-450
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.695.447
• Online since: November 2014
• Authors: Safiei Nor Zanariah, Mohamed Nor Noor Naimah, Norzita Ngadi, Zaki Yamani Zakaria, Jusoh Mazura*
• Keywords: Coconut Water, Concentration Efficiency, Effective Partition Constant, Overall Heat Transfer Coefficient, Progressive Freeze Concentration

References

[1] A.C.P. Duarte, M.A.Z. Caelho, S.G.F. Leite, Identification of peroxidase and tyrosinase in green coconut water, J. of Food Sci. and Technol. (2002) 266-270.

[2] J.J.R.E. Paull, The Encyplopedia of Fruits and Nuts, (2007) 994.

[3] F.A. Ramos, J.L. Delgado, E. Bautista, A.L. Morales, C. Duque, Changes in volatiles with the application of progressive freeze-concentration to Andes berry (Rubus glaucus Benth), J. Food Eng. 69 (2005) 291-297.

DOI: 10.1016/j.jfoodeng.2004.07.022

[4] E. Hernández, M. Raventós, J.M. Auleda, A. Ibarz, Freeze concentration of must in a pilot plant falling film cryoconcentrator, Innov. Food Sci. Emerg. Technol. 11 (2010) 130-136.

DOI: 10.1016/j.ifset.2009.08.014

[5] F.G.F. Qin, X.D. Chen, A.B. Russell, Heat transfer at the subcooled-scraped surface with/without phase change, Journal of American Institute of Chemical Engineers 49 (2003) 1947-(1955).

DOI: 10.1002/aic.690490804

[6] F.G.F. Qin, X.D. Chen, S. Ramachandra, K. Free, Heat transfer and power consumption in a scraped-surface heat exchanger while freezing aqueous solutions, Sep. Purif. Technol. 48 (2006) 150-158.

DOI: 10.1016/j.seppur.2005.07.018

[7] O. Miyawaki, L. Liu, K. Nakamura, Effective Partition Constant of Solute between Ice and Liquid Phases in Progressive Freeze-Concentration, J. Food Sci. 63 (1998) 1-3.

DOI: 10.1111/j.1365-2621.1998.tb17893.x

[8] X. Gu, T. Suzuki, O. Miyawaki, Limiting Partition Coefficient in Progressive Freeze-concentration, J. Food Eng. and Phys. Properties 70 (2005) 546-551.

DOI: 10.1111/j.1365-2621.2005.tb08317.x

[9] O. Miyawaki, L. Liu, Y. Shirai, S. Sakashita, K. Kagitani, Tubular ice system for scale-up of progressive freeze-concentration, J. Food Eng. 69 (2005) 107-113.

DOI: 10.1016/j.jfoodeng.2004.07.016

[10] K. Nakagawa, S. Maebashi, K. Maeda, Freeze-thawing as a path to concentrate aqueous solution, Sep. Purif. Technol. 73 (2010) 403-408.

DOI: 10.1016/j.seppur.2010.04.031

[11] P. Chen, D.C. Xiao, K.W. Free, Solute Inclusion in Ice Formed From Sucrose Solutions on a Sub-cooled Surface-an Experimental Study, J. Food Eng. 38 (1998) 1-13.

DOI: 10.1016/s0260-8774(98)00112-5

[12] M. Wakisaka, Y. Shirai, S. Sakashita, Ice crystallization in a pilot-scale freeze wastewater treatment system, Chem. Eng. Process: Process Intensif. 40 (2001) 201-208.

DOI: 10.1016/s0255-2701(00)00112-4
