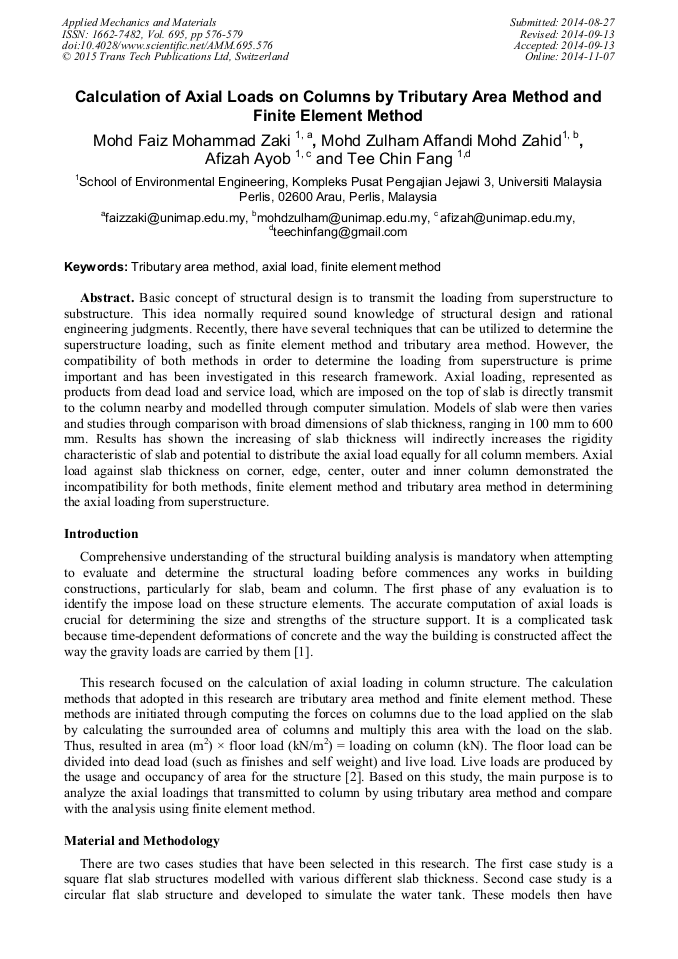

Calculation of Axial Loads on Columns by Tributary Area Method and Finite Element Method

Abstract:

Basic concept of structural design is to transmit the loading from superstructure to substructure. This idea normally required sound knowledge of structural design and rational engineering judgments. Recently, there have several techniques that can be utilized to determine the superstructure loading, such as finite element method and tributary area method. However, the compatibility of both methods in order to determine the loading from superstructure is prime important and has been investigated in this research framework. Axial loading, represented as products from dead load and service load, which are imposed on the top of slab is directly transmit to the column nearby and modelled through computer simulation. Models of slab were then varies and studies through comparison with broad dimensions of slab thickness, ranging in 100 mm to 600 mm. Results has shown the increasing of slab thickness will indirectly increases the rigidity characteristic of slab and potential to distribute the axial load equally for all column members. Axial load against slab thickness on corner, edge, center, outer and inner column demonstrated the incompatibility for both methods, finite element method and tributary area method in determining the axial loading from superstructure.

• Periodical: Applied Mechanics and Materials (Volume 695)
• Pages: 576-579
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.695.576
• Online since: November 2014
• Authors: Mohd Faiz Mohammad Zaki*, Mohd Zulham Affandi Mohd Zahid, Afizah Ayob, Tee Chin Fang
• Keywords: Axial Load, Finite Element Method (FEM), Tributary Area Method

References

[1] O. Kurc, A. Lulec, A comparative study on different analysis approaches for estimating the axial loads on columns and structural walls at tall buildings. The Structural Design of Tall and Special Buildings. 22 (2013) 485-499.

DOI: 10.1002/tal.699

[2] Bryant, A. Ebrahimpour, R.L. Sack, Design Live Loads for Coherent Crowd Harmonic Movements, Journal of Structural Engineering. 118 (1992) 1121-1136.

DOI: 10.1061/(asce)0733-9445(1992)118:4(1121)

[3] British Standard Institutional, EN1991-1-1 (2002) Eurocode 1: Actions On Structures - Part1-1: General actions-Densities, Self-weight, Imposed Loads for Buildings, United Kingdom, (2010).

DOI: 10.3403/30396138

[4] I. A. A Al-Qasem, M.Y. Abdulwahid, Comparison of calculation of axial loads on columns by tributary area method and 3D modeling by SAP2000. International Journal of Civil and Structural Engineering. 3 (2012) 336-345.
