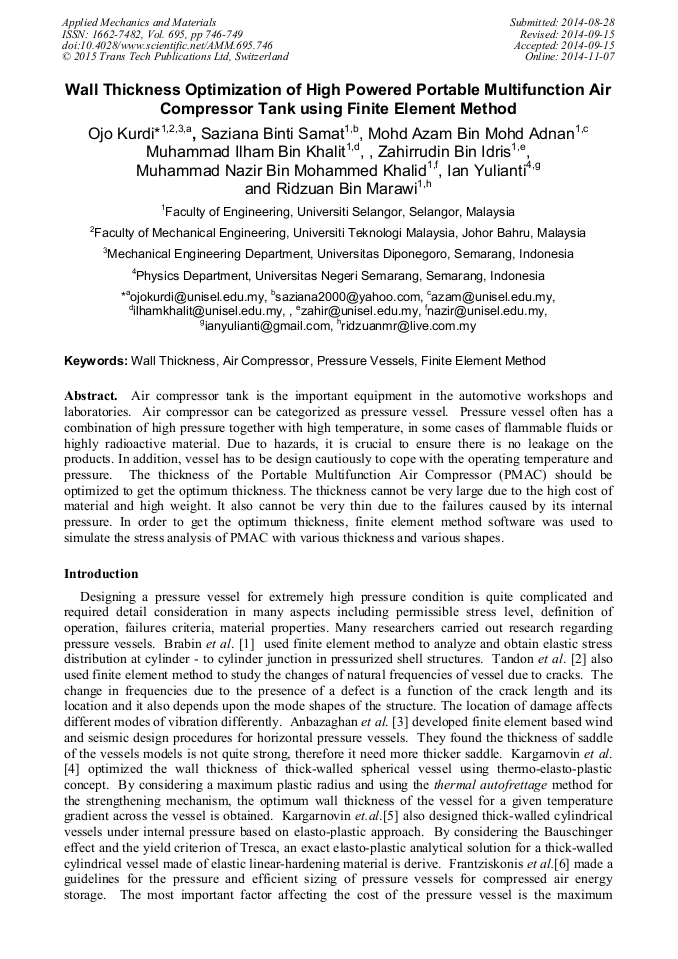

Wall Thickness Optimization of High Powered Portable Multifunction Air Compressor Tank Using Finite Element Method

Abstract:

Air compressor tank is the important equipment in the automotive workshops and laboratories. Air compressor can be categorized as pressure vessel. Pressure vessel often has a combination of high pressure together with high temperature, in some cases of flammable fluids or highly radioactive material. Due to hazards, it is crucial to ensure there is no leakage on the products. In addition, vessel has to be design cautiously to cope with the operating temperature and pressure. The thickness of the PMAC should be optimized to get the best performance, the thickness cannot be very large due to the cost of material and exceeded weight and also cannot be very thin due to the failures caused by its internal pressure. In order to get the optimum thickness, finite element method software was used to simulate the stress analysis of PMAC with various thickness and various shapes.

• Periodical: Applied Mechanics and Materials (Volume 695)
• Pages: 746-749
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.695.746
• Online since: November 2014
• Authors: Ojo Kurdi*, Saziana binti Samat, Mohd Azam bin Mohd Adnan, Muhammad Ilham bin Khalit, Zahirrudin bin Idris, Muhammad Nazir bin Mohammed Khalid, Ian Yulianti, Ridzuan bin Marawi
• Keywords: Air Compressor, Finite Element Method (FEM), Pressure Vessels, Wall Thickness

References

[1] T. Aseer Brabin, T. Christopher, B. Nageswara Rao, Finite element analysis of cylindrical pressure vessels having a misalignment in a circumferential joint, International Journal of Pressure Vessels and Piping 87 (2010) 197 - 201.

DOI: 10.1016/j.ijpvp.2010.02.004

[2] A. Choubey, D.K. Sehgal, N. Tandon, Finite element analysis of vessels to study changes in natural frequencies due to cracks, International Journal of Pressure Vessels and Piping 83 (2006) 181–187.

DOI: 10.1016/j.ijpvp.2006.01.001

[3] A. M. Senthil Anbazaghan, M. Dev Anand, G. Anis Milton, Development of Finite Element Based Wind and Design Procedures for Horizontal Pressure Vessel, Procedia Engineering 38 (2012) 3998 - 4004.

DOI: 10.1016/j.proeng.2012.06.457

[4] M.H. Kargarnovin, A. Rezai Zarei, H. Darijani, Wall thickness optimization of thick-walled spherical vessel using thermo-elasto-plastic concept, International Journal of Pressure Vessels and Piping 82 (2005) 379–385.

DOI: 10.1016/j.ijpvp.2004.10.001

[5] H. Darijani, M.H. Kargarnovin, R. Naghdabadi, Design of thick-walled cylindrical vessels under internal pressure based on elasto-plastic approach, Materials and Design 30 (2009) 3537–3544.

DOI: 10.1016/j.matdes.2009.03.010

[6] J.J. Proczka, K. Muralidharan, D. Villela, J.H. Simmons, G. Frantziskonis, Guidelines for the pressure and efficient sizing of pressure vessels for compressed air energy storage, Energy Conversion and Management 65 (2013) 597–605.

DOI: 10.1016/j.enconman.2012.09.013
