Development of the Thermal Equivalent Circuit for Evaluating the Capacity of High Voltage Cables in Real Time

Abstract:

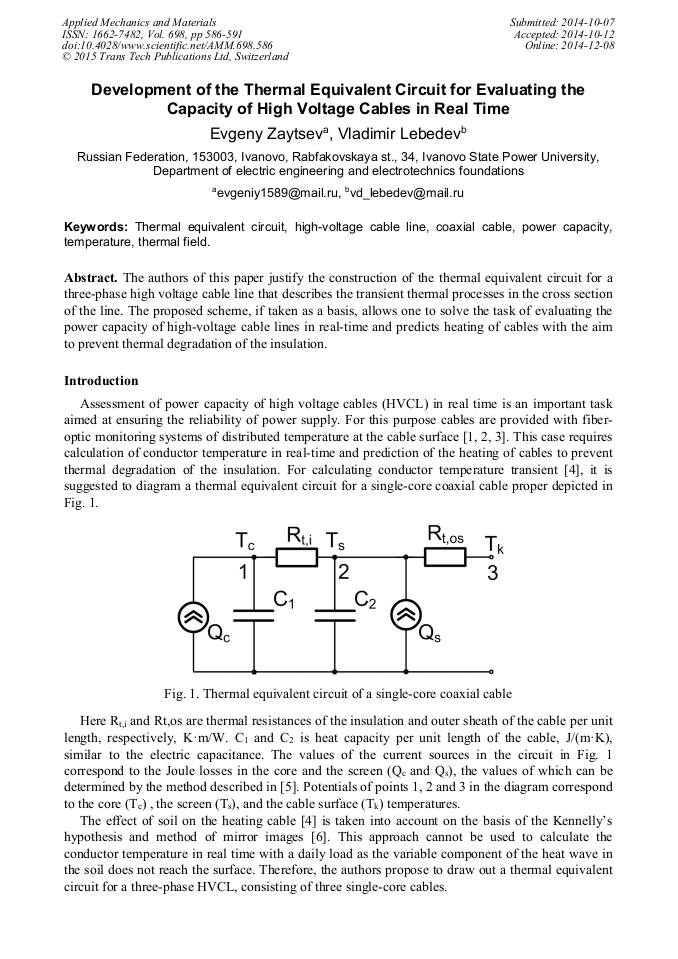

The authors of this paper justify the construction of the thermal equivalent circuit for a three-phase high voltage cable line that describes the transient thermal processes in the cross section of the line. According to the authors, the proposed scheme, if taken as a basis, allows to solve the task of evaluating the power capacity of high-voltage cable lines in real-time and predict heating of cables with the aim to prevent thermal degradation of the insulation.
