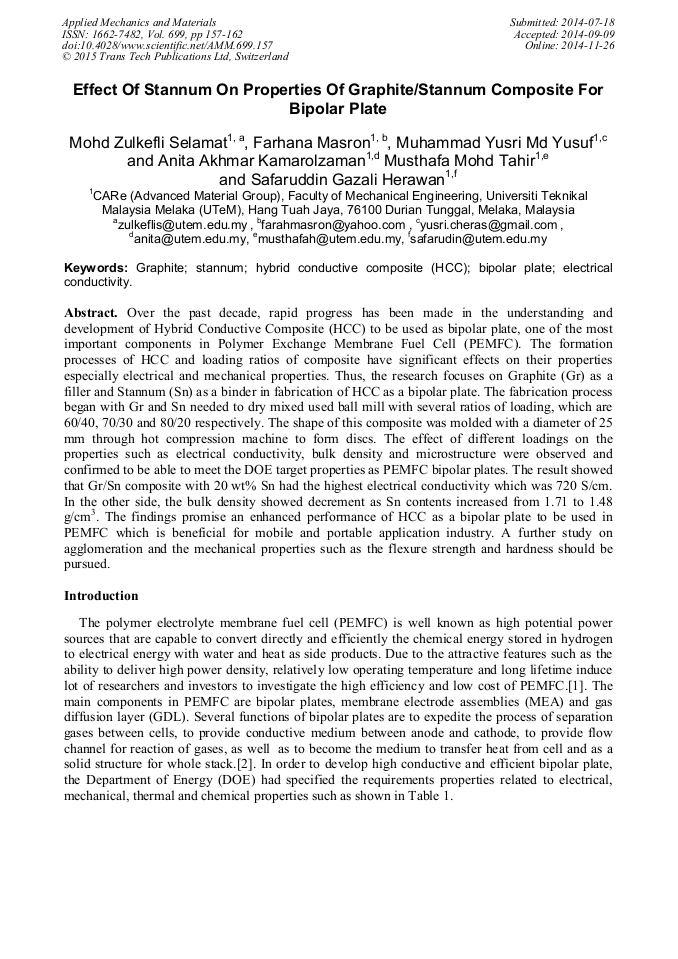

Effect of Stannum on Properties of Graphite/Stannum Composite for Bipolar Plate

Abstract:

Over the past decade, rapid progress has been made in the understanding and development of Hybrid Conductive Composite (HCC) to be used as bipolar plate, one of the most important components in Polymer Exchange Membrane Fuel Cell (PEMFC). The formation processes of HCC and loading ratios of composite have significant effects on their properties especially electrical and mechanical properties. Thus, the research focuses on Graphite (Gr) as a filler and Stannum (Sn) as a binder in fabrication of HCC as a bipolar plate. The fabrication process began with Gr and Sn needed to dry mixed used ball mill with several ratios of loading, which are 60/40, 70/30 and 80/20 respectively. The shape of this composite was molded with a diameter of 25 mm through hot compression machine to form discs. The effect of different loadings on the properties such as electrical conductivity, bulk density and microstructure were observed and confirmed to be able to meet the DOE target properties as PEMFC bipolar plates. The result showed that Gr/Sn composite with 20 wt% Sn had the highest electrical conductivity which was 720 S/cm. In the other side, the bulk density showed decrement as Sn contents increased from 1.71 to 1.48 g/cm³. The findings promise an enhanced performance of HCC as a bipolar plate to be used in PEMFC which is beneficial for mobile and portable application industry. A further study on agglomeration and the mechanical properties such as the flexure strength and hardness should be pursued.

• Periodical: Applied Mechanics and Materials (Volume 699)
• Pages: 157-162
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.699.157
• Online since: November 2014
• Authors: Mohd Zulkefli Selamat, Farhana Masron, Muhammad Yusri Md Yusuf, Anita Akhmar Kamarolzaman, Musthafa Mohd Tahir, Safaruddin Gazali Herawan
• Keywords: Bipolar Plate, Electrical Conductivity, Graphite, Hybrid Conductive Composite (HCC), Stannum

References

[1] H.C. Kuan., C.C.M. Ma., K.H. Chen & S.M. Chen, 2004. J. Power Sources (134), 7-17.

[2] A. Muller, P., Kauranen, A.V. Ganski & B. Hell. 2006 J. Power Sources (154), page 467.

[3] R.A. Antunes, Mara C.L. de Oliveira, Gerhard Ett, Volkmar Ett, Carbon materials in composite bipolar plates for polymer electrolyte membrane fuel cells: A review of the main challenges to improve electrical performance, Journal of Power Sources 196, (2011).

DOI: 10.1016/j.jpowsour.2010.12.041

[4] M.Z. Selamat, M.S. Ahmad, M. Ahadlin, M. Dau, K. Jusoff, M.F. Saparudin, H.T. Jaya, and D. Tunggal, The hybrid conductive filler in the bipolar plate for polymer electrolyte membrane fuel cells, Advanced Material Group, Faculty of Mechanical Engineering , Universiti Teknikal Malaysia Melaka, Australian Journal of Basic and Applied Sciences, 7 (3) (2013).

DOI: 10.15282/jmes.10.3.2016.11.0217

[5] M.S. Ahmad, M.Z. Selamat, M.A.M. Daud, I.K.M. Yunus, M.S. Azman, Effect of different filler materials in the development of bipolar plate composite for polymer electrolyte membrane fuel cell (PEMFC), Applied Mechanics and Materials 315 (2013).

DOI: 10.4028/www.scientific.net/amm.315.226

[6] M.Z. Selamat, J. Sahari, N. Muhamad, A. Muchtar, Simultaneous optimization for multiple responses on compression moulding parameters of composite graphite-polypropylene using taguchi method, Key Engineering Materials, 471-472 (2011), 361-366.

DOI: 10.4028/www.scientific.net/kem.471-472.361

[7] R. Yeetsorn, M.W. Fowler, and C. Tzoganakis, A review of thermoplastic composites for bipolar plate materials in PEM fuel cells.

DOI: 10.5772/19262

[8] R.A. Antunes, M.C.L. de Oliveira, G. Ett, and V. Ett, Carbon materials in composite bipolar plates for polymer electrolyte membrane fuel cells: A review of the main challenges to improve electrical performance, Journal of Power Sources, 196 (6) (2011).

DOI: 10.1016/j.jpowsour.2010.12.041

[9] X. Zi, H. Wang, J. Zhang, and D.P. Wilkinson, Bipolar plates for PEM fuel cells - From materials to processing, 267 (2005) (2006) 257–267.

[10] S. Karimi, N. Fraser, B. Roberts, and F.R. Foulkes, A review of metallic bipolar plates for proton exchange membrane fuel cells: Materials and fabrication methods, Advances in Materials Science and Engineering, 2012 (2012) 1–22.

DOI: 10.1155/2012/828070

[11] H.S. Lee, W.S. Chu, Y.C. Kang, H.J. Kang, and S. H. Ahn, Comparison of fabrication cost of composite bipolar plates made by compression molding and by machining, 4 (3) (2007) 195–200.

[12] S.A. Musa, M. Arif, A. Mohd, and N. Saud, Zn-Sn based high temperature solder - A short review, no. March (2013) 519–522.
