Effect of Injection Moulding Machine Parameters on the Warpage by Applying Taguchi Method

Abstract:

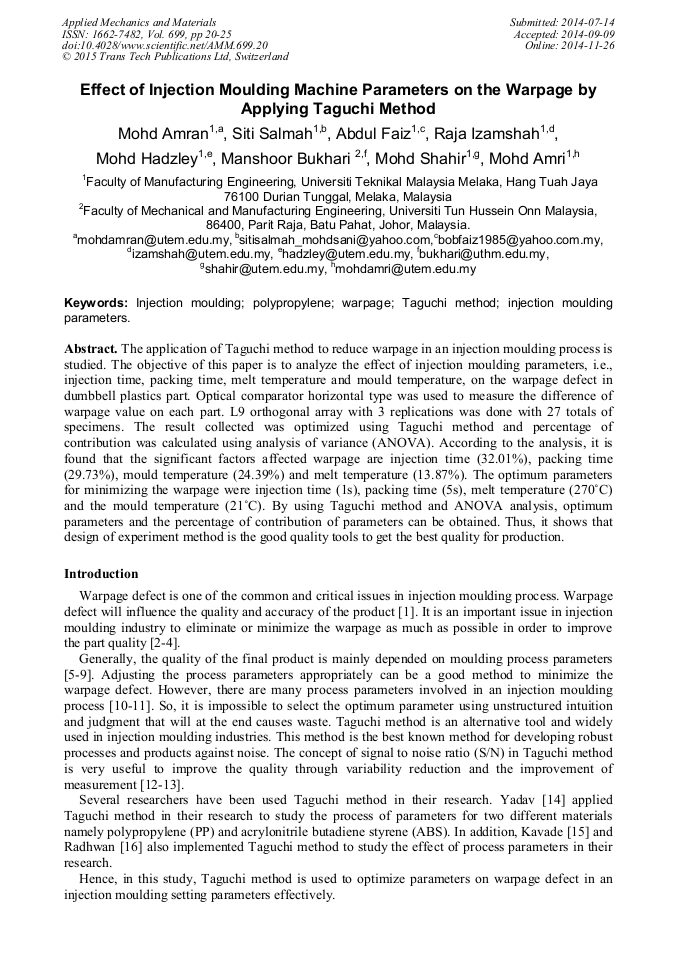

The application of Taguchi method to reduce warpage in an injection moulding process is studied. The objective of this paper is to analyze the effect of injection moulding parameters, i.e., injection time, packing time, melt temperature and mould temperature, on the warpage defect in dumbbell plastics part. Optical comparator horizontal type was used to measure the difference of warpage value on each part. L9 orthogonal array with 3 replications was done with 27 totals of specimens. The result collected was optimized using Taguchi method and percentage of contribution was calculated using analysis of variance (ANOVA). According to the analysis, it is found that the significant factors affected warpage are injection time (32.01%), packing time (29.73%), mould temperature (24.39%) and melt temperature (13.87%). The optimum parameters for minimizing the warpage were injection time (1s), packing time (5s), melt temperature (270 °C) and the mould temperature (21 °C). By using Taguchi method and ANOVA analysis, optimum parameters and the percentage of contribution of parameters can be obtained. Thus, it shows that design of experiment method is the good quality tools to get the best quality for production.

• Periodical: Applied Mechanics and Materials (Volume 699)
• Pages: 20-25
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.699.20
• Online since: November 2014
• Authors: Mohd Amran*, Siti Salmah, Abdul Faiz, Raja Izamshah, Mohd Hadzley, Bukhari Manshoor, Mohd Shahir, Mohd Amri
• Keywords: Injection Moulding, Injection Moulding Parameters, Polypropylene (PP), Taguchi Method, Warpage
