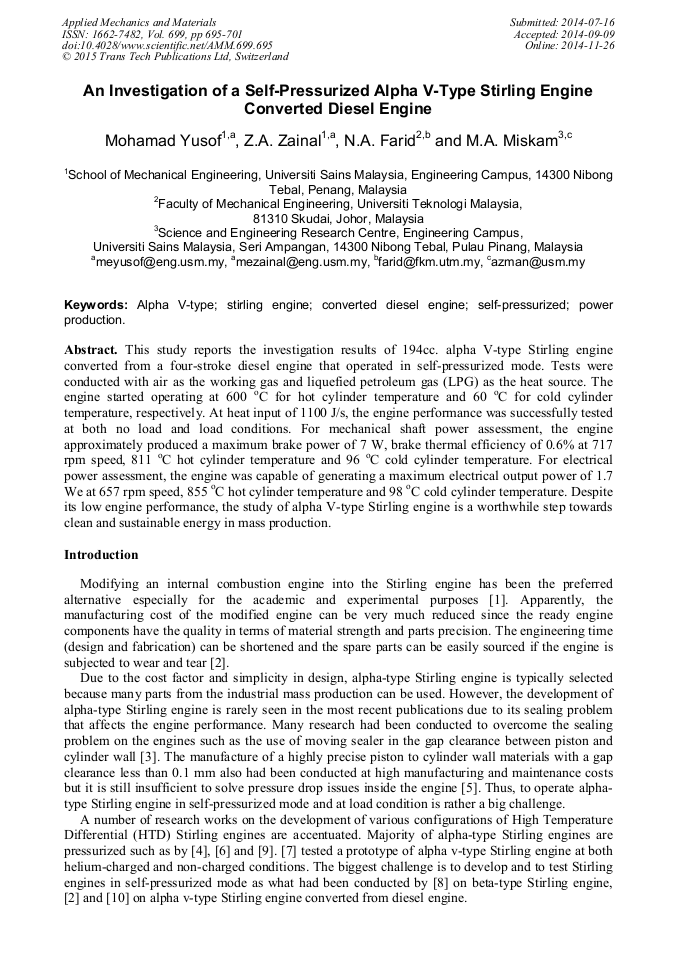

An Investigation of a Self-Pressurized Alpha V-Type Stirling Engine Converted Diesel Engine

Abstract:

This study reports the investigation results of 194cc. alpha V-type Stirling engine converted from a four-stroke diesel engine that operated in self-pressurized mode. Tests were conducted with air as the working gas and liquefied petroleum gas (LPG) as the heat source. The engine started operating at 600 °C for hot cylinder temperature and 60 °C for cold cylinder temperature, respectively. At heat input of 1100 J/s, the engine performance was successfully tested at both no load and load conditions. For mechanical shaft power assessment, the engine approximately produced a maximum brake power of 7 W, brake thermal efficiency of 0.6% at 717 rpm speed, 811 °C hot cylinder temperature and 96 °C cold cylinder temperature. For electrical power assessment, the engine was capable of generating a maximum electrical output power of 1.7 We at 657 rpm speed, 855 °C hot cylinder temperature and 98 °C cold cylinder temperature. Despite its low engine performance, the study of alpha V-type Stirling engine is a worthwhile step towards clean and sustainable energy in mass production.

• Periodical: Applied Mechanics and Materials (Volume 699)
• Pages: 695-701
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.699.695
• Online since: November 2014
• Authors: Mohamad Yusof, Z.A. Zainal, N.A. Farid, M.A. Miskam
• Keywords: Alpha V-Type, Converted Diesel Engine, Power Production, Self-Pressurized, Stirling Engine

References

[1] L. Raggi, M. Katsuka, H. Sekiya, Design of a 1 kW class gamma type stirling engine, Proceeding of the International Energy Conversion Engineering Conference, (1997) 991-996.

DOI: 10.1109/iecec.1997.661904

[2] I.M. Yusof, N.A. Farid, Z.A. Zainal, M.A. Miskam, Preliminary investigation of a converted four-stroke diesel to alpha V-shaped Stirling engine. Asian J. Applied Sci., 2 (2009) 101-114.

DOI: 10.3923/ajaps.2009.101.114

[3] D.G. Thombare, and S.K. Verma, Technological development in the stirling cycle engines, Renewable and Sustainable Energy Reviews, (2006).

DOI: 10.1016/j.rser.2006.07.001

[4] E. Podesser, Electricity production in rural villages with a biomass stirling engine, Renewable Energy, 16 (1999) 1049-1052.

DOI: 10.1016/s0960-1481(98)00369-3

[5] G. Walker, Stirling engines. 1st Ed. The Clarendon Press, Oxford (1980).

[6] H. Karabulut, H.S. Yüsecu, A. Koca, Manufacturing and testing of a v-type stirling engine, Turk. J. Environ. Sci., 24 (2000) 71-80.

[7] İ. Batmaz and S. Üstün, Design and manufacturing of a v-type stirling engine with double heaters. Applied Energy, 85 (2008) 1041-1049.

DOI: 10.1016/j.apenergy.2008.02.021

[8] C. Cinar, S. Yüsecu, T. Topgul, Okur, Beta-type stirling engine operating at atmospheric pressure. Applied Energy, 81 (2004) 351-357.

DOI: 10.1016/j.apenergy.2004.08.004

[9] H. Karabulut, C. Cinar, E. Oztürk, H.S. Yücesu, Torque and power characteristics of a helium charged stirling engine with a lever controlled displacer driving mechanism. Renewable Energy, 35 (2010) 138-143.

DOI: 10.1016/j.renene.2009.04.023

[10] I.M. Yusof, N.A. Farid, Z.A. Zainal, K. Noriman, M.A. Miskam, Mechanical power assessment of an alpha v-type stirling engine converted diesel engine. Proceeding of the International Journal of Mechanical and Materials Engineering, 2 (2011).

DOI: 10.4028/www.scientific.net/amm.699.695

[11] C.D. West, Principles and applications of stirling engines. Van Nostrand Reinhold Company Inc., New York (1986).
