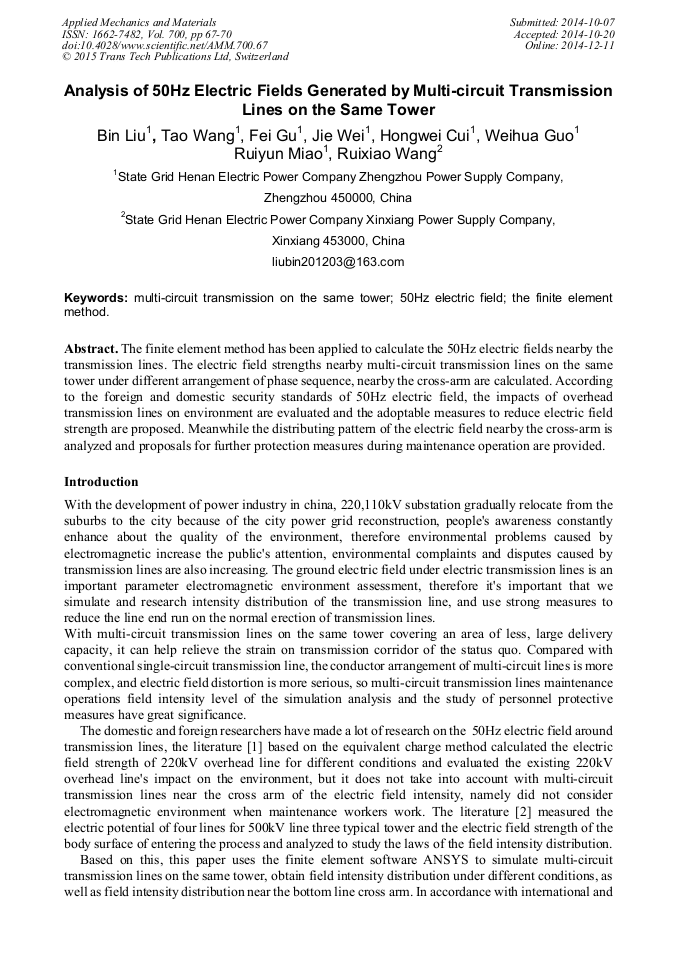

Analysis of 50Hz Electric Fields Generated by Multi-Circuit Transmission Lines on the Same Tower

Abstract:

The finite element method has been applied to calculate the 50Hz electric fields nearby the transmission lines. The electric field strengths nearby multi-circuit transmission lines on the same tower under different arrangement of phase sequence, nearby the cross-arm are calculated. According to the foreign and domestic security standards of 50Hz electric field, the impacts of overhead transmission lines on environment are evaluated and the adoptable measures to reduce electric field strength are proposed. Meanwhile the distributing pattern of the electric field nearby the cross-arm is analyzed and proposals for further protection measures during maintenance operation are provided.

• Periodical: Applied Mechanics and Materials (Volume 700)
• Pages: 67-70
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.700.67
• Online since: December 2014
• Authors: Bin Liu*, Tao Wang, Fei Gu, Jie Wei, Hong Wei Cui, Wei Hua Guo, Rui Yun Miao, Rui Xiao Wang
• Keywords: 50Hz Electric Field, Finite Element Method (FEM), Multi-Circuit Transmission on the same Tower

References

[1] Yu Meng, Yonglong Zhang, Xinxin Xiao. Power System Technology, 2010, 34 (6): 38-43.

[2] Jingde Lu, Kai Liu, Teng Zhou, etc. East China Electric Power, 2010, 38 (1): 0101-0105.

[3] Lin Gao, Jun Liu, Jianbo Li. Hydroelectric Energy, 2011, 29 (3): 155-158.

[4] Yi Hu, Junlan Zhang, Huirong Zhang, etc. Chinese power, 1999, 32: 53-55.

[5] Hailian Shu, Siew Yong, Weirong Chen, East China Electric Power, 2010, 38 (11): 1721-1724.

[6] Hong Jiang, Jinghui Jiao, EHV-frequency high voltage technology, 2006, 32 (8): 56-58.

[7] Yan Gan, Xiong Wu. High Voltage Engineering, 2006, 32 (8): 52-55.

[8] Bagimki T A. IEEE Transaction on Electromagnetic Compatibility，1999，31(4)；393-395.
