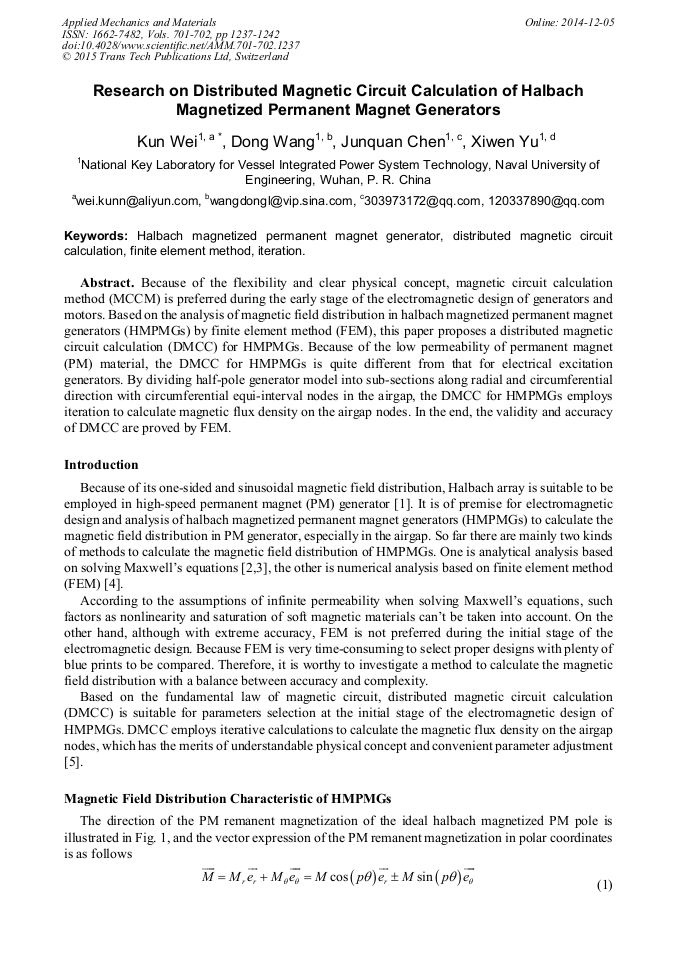

Research on Distributed Magnetic Circuit Calculation of Halbach Magnetized Permanent Magnet Generators

Abstract:

Because of the flexibility and clear physical concept, magnetic circuit calculation method (MCCM) is preferred during the early stage of the electromagnetic design of generators and motors. Based on the analysis of magnetic field distribution in halbach magnetized permanent magnet generator (HMPMG) by finite element method (FEM), this paper proposes a distributed magnetic circuit calculation (DMCC) for HMPMG. Because of the low permeability of permanent magnet (PM) material, the DMCC for HMPMG is quite different from that for electrical excitation generator. By dividing half-pole generator model into sub-sections along radial and circumferential direction with circumferential equi-interval nodes in air gap, the DMCC for HMPMG employs iteration to calculate magnetic flux density on air gap nodes. In the end, the validity and accuracy of DMCC are proved by FEM.

• Periodical: Applied Mechanics and Materials (Volumes 701-702)
• Pages: 1237-1242
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.701-702.1237
• Online since: December 2014
• Authors: Kun Wei*, Dong Wang, Jun Quan Chen, Xi Wen Yu
• Keywords: Distributed Magnetic Circuit Calculation, Finite Element Method (FEM), Halbach Magnetized Permanent Magnet Generator, Iteration

References

[1] Seok-Myeong Jang, Sang-Sub Jeong, Dong-Wan Ryu, Sang-Kyu Choi. Design and Analysis of High Speed Slotless PM Machine with Halbach Array [J]. IEEE Trans. on Mag., 2001, 37(4): 2827-2830.

DOI: 10.1109/20.951319

[2] Z. P. Xia, Z. Q. Zhu, D. Howe. Analytical Magnetic Field Analysis of Halbach Magnetized Permanent-Magnet Machines [J]. IEEE Trans. on Mag., 2004, 40(4): 1864-1872.

DOI: 10.1109/tmag.2004.828933

[3] Pierre-Daniel Pfister, Yves Perriard. Slotless Permanent-Magnet Machines: General Analytical Magnetic Field Calculation [J]. IEEE Trans. on Mag., 2011, 47(6): 1739-1752.

DOI: 10.1109/tmag.2011.2113396

[4] Zhenhong Guo, Liuchen Chang. FEM study on permanent magnet synchronous generators for small wind turbines [C]. Electrical and Computer Engineering, 2005: 641 - 644.

DOI: 10.1109/ccece.2005.1557012

[5] Dong Wang, Xinzhen Wu, Weiming Ma, Yunjun Guo, Junquan Chen. Magnetic Circuit Calculation of Fifteen-phase Induction Motor With Non-sinusoidal Supply [J]. Proceedings of the CSEE, 2009, 29(12): 58-64. (In Chinese).
