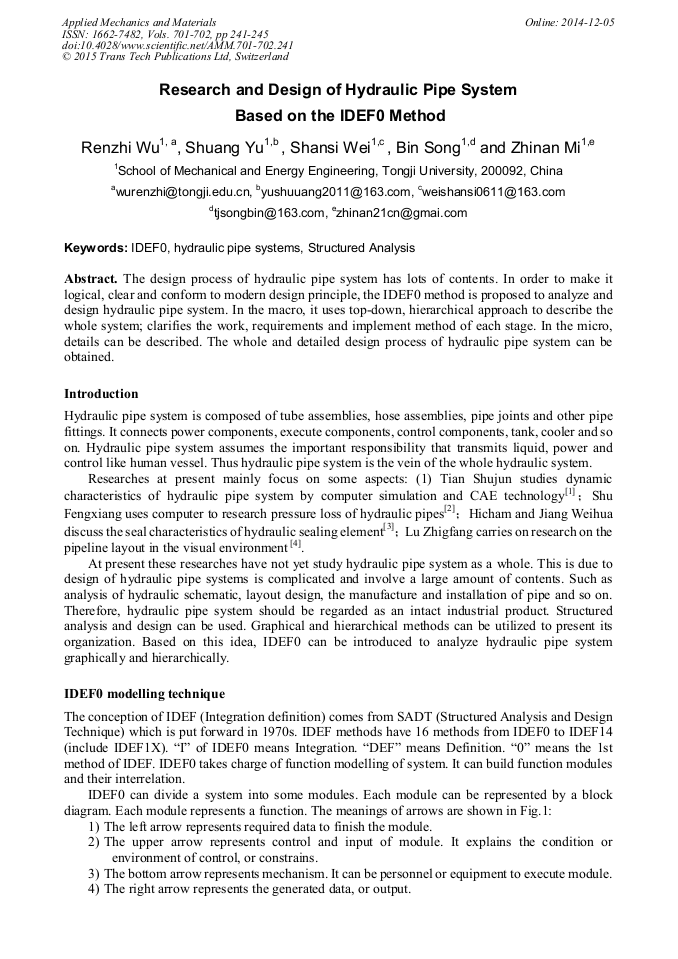

Research and Design of Hydraulic Pipe System Based on the IDEF0 Method

Abstract:

The design process of hydraulic pipe system has lots of contents. In order to make it logical, clear and conform to modern design principle, the IDEF0 method is proposed to analyze and design hydraulic pipe system. In the macro, it uses top-down, hierarchical approach to describe the whole system; clarifies the work, requirements and implement method of each stage. In the micro, details can be described. The whole and detailed design process of hydraulic pipe system can be obtained.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 701-702)

Pages:

241-245

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.701-702.241

Citation:

Cite this paper

Online since:

December 2014

Authors:

Ren Zhi Wu, Shuang Yu, Shan Si Wei, Bin Song, Zin An Mi*

Keywords:

Hydraulic Pipe Systems, IDEF0, Structured Analysis
