A 3D Measurement Method Based on Three Frequencies PSP

Abstract:

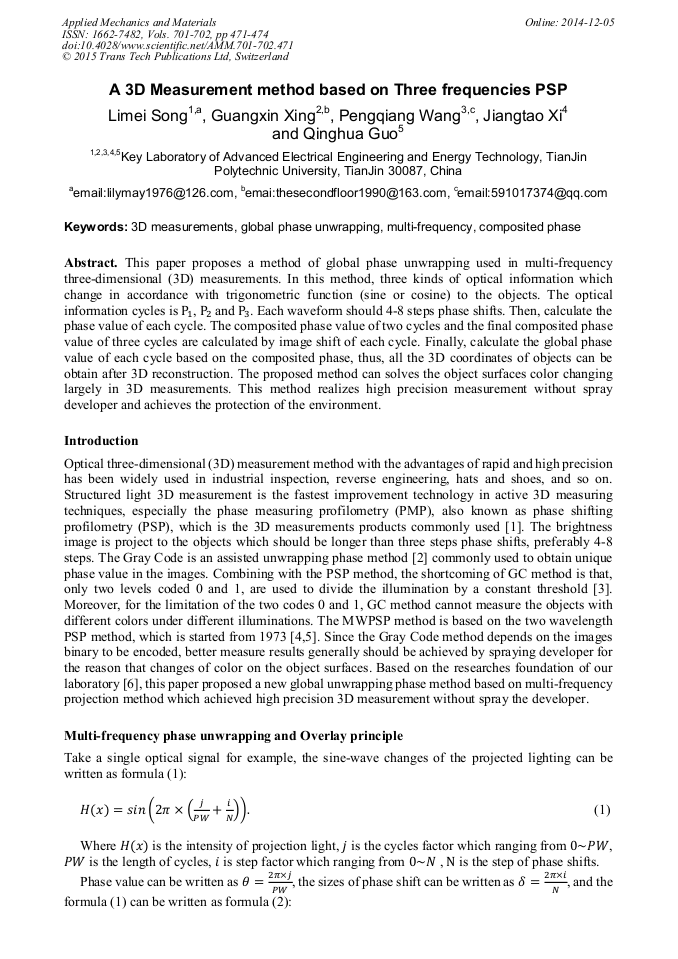

This paper proposes a method of global phase unwrapping used in multi-frequency three-dimensional (3D) measurements. In this method, three kinds of optical information which change in accordance with trigonometric function (sine or cosine) to the objects. The optical information cycles is P1, P2 and P3. Each waveform should 4-8 steps phase shifts. Then, calculate the phase value of each cycle. The composited phase value of two cycles and the final composited phase value of three cycles are calculated by image shift of each cycle. Finally, calculate the global phase value of each cycle based on the composited phase, thus, all the 3D coordinates of objects can be obtain after 3D reconstruction. The proposed method can solves the object surfaces color changing largely in 3D measurements. This method realizes high precision measurement without spray developer and achieves the protection of the environment.
