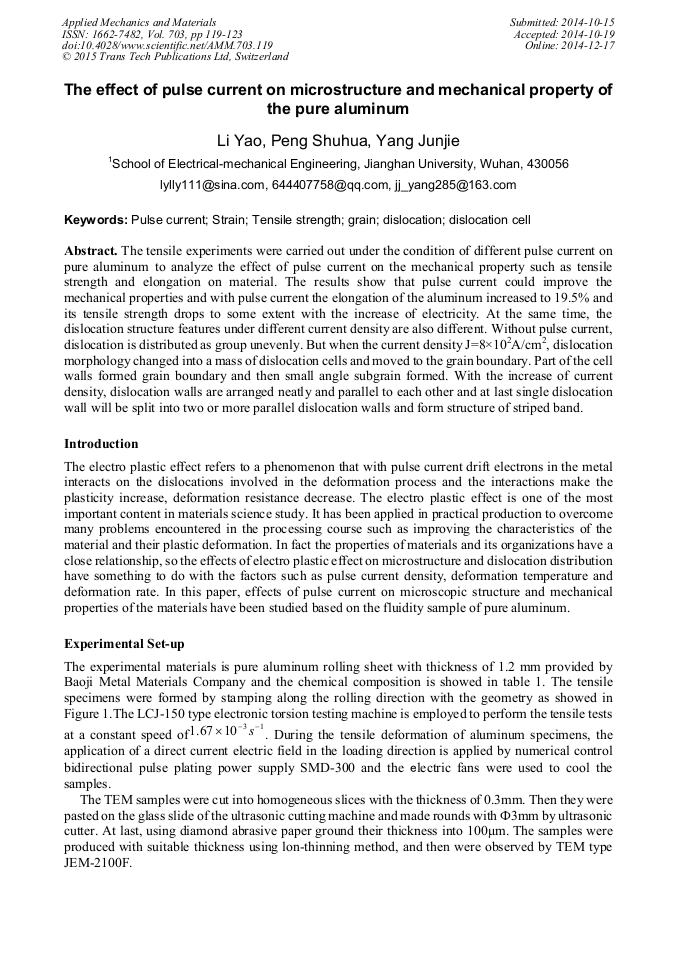

The Effect of Pulse Current on Microstructure and Mechanical Property of the Pure Aluminum

Abstract:

The tensile experiments were carried out under the condition of different pulse current on pure aluminum to analyze the effect of pulse current on the mechanical property such as tensile strength and elongation on material. The results show that pulse current could improve the mechanical properties and with pulse current the elongation of the aluminum increased to 19.5% and its tensile strength drops to some extent with the increase of electricity. At the same time, the dislocation structure features under different current density are also different. Without pulse current, dislocation is distributed as group unevenly. But when the current density J=8×10²A/cm², dislocation morphology changed into a mass of dislocation cells and moved to the grain boundary. Part of the cell walls formed grain boundary and then small angle subgrain formed. With the increase of current density, dislocation walls are arranged neatly and parallel to each other and at last single dislocation wall will be split into two or more parallel dislocation walls and form structure of striped band.

• Periodical: Applied Mechanics and Materials (Volume 703)
• Pages: 119-123
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.703.119
• Online since: December 2014
• Authors: Yao Li*, Shu Hua Peng, Jun Jie Yang
• Keywords: Dislocation, Dislocation Cell, Grain, Pulse Current, Strain, Tensile Strength

References

[1] You Zhenping, Hui Songxiao, Ye Wenjun, Yu Yang, Liu Rui. Effect of Texture on Dynamic Mechanical Property[J]. CHINESE JOURNAL OF RARE METALS, 2012, 36(1): 31-35.

[2] Liu Rui, Hui Xiaosong, Ye Wenjun, Xiong Baisong, Yu Yang, Fu Yanyan. Effects of Heat-Treatment on Dynamic Fracture Toughness of TB10 Titanium Alloy[J]. CHINESE JOURNAL OF RARE METALS, 2010，34(4): 485-489.

DOI: 10.1007/s12598-010-0179-z

[3] SONG Hui, WANG Zhongjin. Improvement of mechanical properties of cold—rolled commercially pure Ti sheet by high density electro pulsing [J]. Transactions Nonferrous Metals Society of China, 2012, 22: 1350-1355.

DOI: 10.1016/s1003-6326(11)61325-3

[4] Zou Tuxiang. Investigation on Grain Refinement Mechanism And Dyanmic Mechanical Properties of Pure Aluminum[D]. Taiyuan University of Technology, (2008).

[5] Li Yan, Gu Qianqian, Qiu Donghua, Peng Dongjin, Guan Qingfeng. Texture and Structural Defect Evolution of Pure Nixkel Subjected to High-Current Pulse Electron Beam Irradiation[J]. CHINESE JOURNAL OF HIGH PRESSURE PHYSICS, 2010, 24(6): 461-466.

[6] Liu Zhaohua, Chen Liangwei, Xi Jian, Shi Qingnan. Dislocation Refinement Mechanism of High Stacking Fault Energy 7003 Al Alloy during ECAP Deformation[J]. RARE METAL MATERIALS AND ENGINEERING, 2013, 42(7): 1407-1410.
