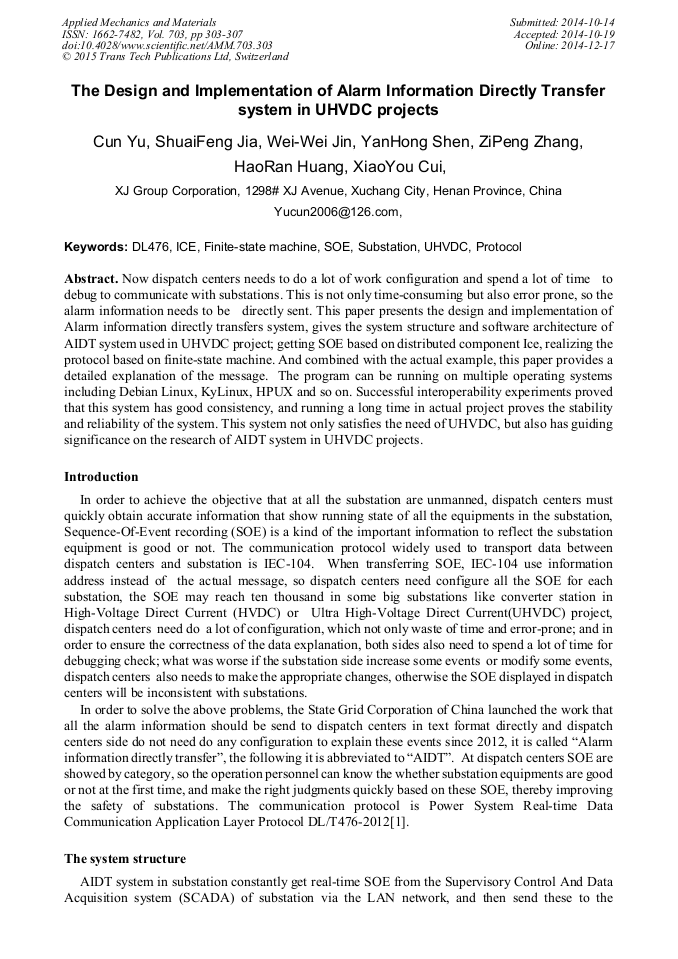

The Design and Implementation of Alarm Information Directly Transfer System in UHVDC Projects

Abstract:

Now dispatch centers needs to do a lot of work configuration and spend a lot of time to debug to communicate with substations. This is not only time-consuming but also error prone, so the alarm information needs to be directly sent. This paper presents the design and implementation of Alarm information directly transfers system, gives the system structure and software architecture of AIDT system used in UHVDC project; getting SOE based on distributed component Ice, realizing the protocol based on finite-state machine. And combined with the actual example, this paper provides a detailed explanation of the message. The program can be running on multiple operating systems including Debian Linux, KyLinux, HPUX and so on. Successful interoperability experiments proved that this system has good consistency, and running a long time in actual project proves the stability and reliability of the system. This system not only satisfies the need of UHVDC, but also has guiding significance on the research of AIDT system in UHVDC project.

• Periodical: Applied Mechanics and Materials (Volume 703)
• Pages: 303-307
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.703.303
• Online since: December 2014
• Authors: Cun Yu*, Shuai Feng Jia, Wei Wei Jin, Yan Hong Shen, Zi Peng Zhang, Hao Ran Huang, Xiao You Cui
• Keywords: DL476, Finite-State Machine, Ice, Protocol, SOE, Substation, UHVDC

References

[1] Electric power industry standard of the people's Republic of China(DL/T 476-2012 ) Power System Real-time Data Communication Application Layer Protocol. Beijing: Chinese power press 2012.

[2] http: /www. zeroc. com.

[3] LI Zai hua , BAI Xiao min , ZHOU Zi guan , XU Jing , LI Xiao jun , DING Jian , FANG Zhu: power grid dispatching protocol review and an appli cation case analysis JOURNAL OF EIECTRIC POWER SCIENCE AND TECHNOLOGY, 2007, 22(4), pp: 50-55.

[4] Li Peng , Han Wei : Development and application of DL476-92 protocol in H9000 computer supervision and control system. MECHANICAL&ELECTRICAL TECHNIQUE OF HYDROPOWER STATION, 2004, 27(3) , pp: 32-33.

[5] D. Harel, Statecharts: a Visual Approach to Complex Systems(revised)", report CS86-02 Dep. App Math, s Weizman Inst. Science Rehovot Israel, March (1986).

[6] Substation control and data interaction specification. Beijing: China State Grid Corp (2012).

[7] Telecontrol equipment and systems –Part 5-104: Transmission protocols –Network access for IEC 60870-5-101 using standard transport profiles. (S) (2002).

DOI: 10.3403/02526712
