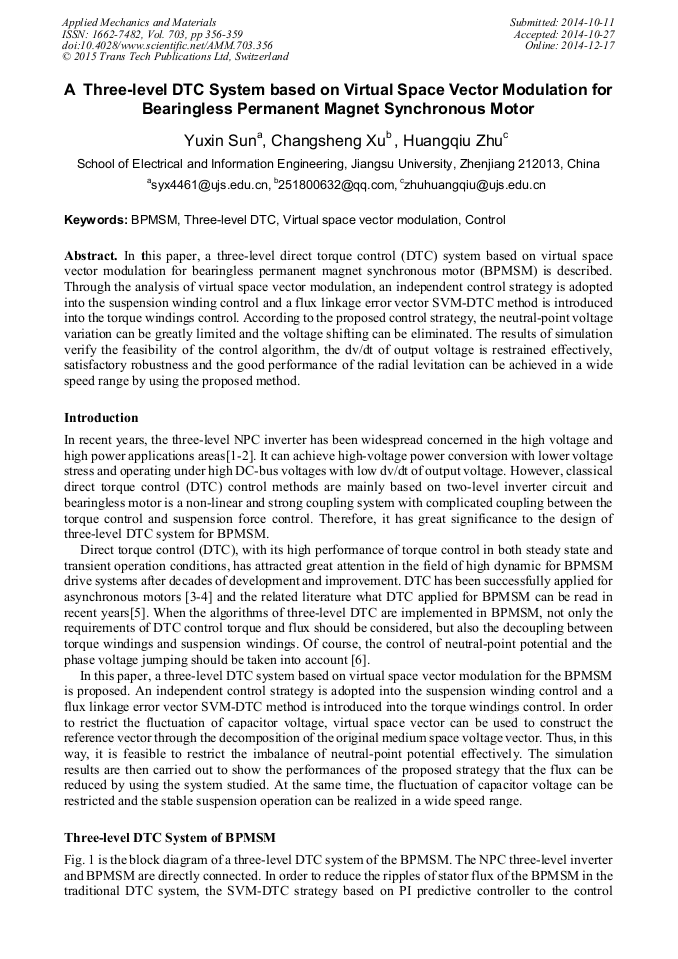

A Three-Level DTC System Based on Virtual Space Vector Modulation for Bearingless Permanent Magnet Synchronous Motor

Abstract:

In This paper, a direct torque control (DTC) method for bearingless permanent magnet synchronous motor (BPMSM) based on three-level neutral-point clamped (NPC) inverter is described. Through the analysis of virtual space vector modulation, an independent control strategy is adopted into the suspension winding control and a flux linkage error vector SVM-DTC method supplied by three-level NPC inverter is introduced into the torque windings control. By using the proposed control strategy, the neutral-point voltage variation can be greatly limited and the voltage shifting can be eliminated. The results of simulation verify the feasibility of the control algorithm, the dv/dt of output voltage and the torque ripple are restrained effectively, satisfactory robustness and the good performance of the radial levitation can be achieved in a wide speed range by using the proposed method.

• Periodical: Applied Mechanics and Materials (Volume 703)
• Pages: 356-359
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.703.356
• Online since: December 2014
• Authors: Yu Xin Sun, Chang Sheng Xu*, Huang Qiu Zhu
• Keywords: BPMSM, DTC, Three-Level NPC Inverter, Virtual Space Vector Modulation

References

[1] R. Sommers, A. Mertens, M. Griggs and et al. IEEE Transactions on Industry Applications,. Vol. 3 (1999), p.1513.

[2] F. Peng, J. Lai and et al. IEEE Transactions on Industry Applications, Vol. 32 (1996), No. 5, p.1130.

[3] I. Takahashi and Y. Ohmori. IEEE Transactions on Industry Applications, Vol. 25 (1989), No. 2, p.257.

[4] I. Takahashi and T. Noguchi. IEEE Transactions on Industry Applications, Vol. 22 (1986), No. 5, p.820.

[5] X. Liu，C. Wang, L. Cao and et al. International Symposium on ICMTM., Vol. 3 (2010), p.457.

[6] L. Lin, Y. Zou, Z. Wang and et al. Proceedings of the CSE., Vol. 27 (2007), No. 3, p.46.
