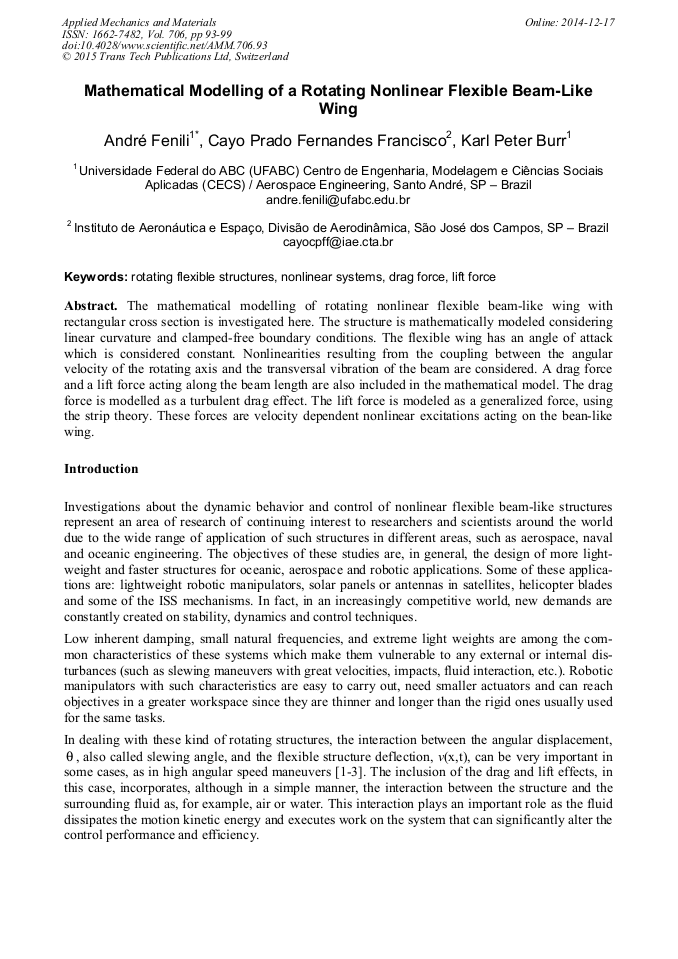

Mathematical Modelling of a Rotating Nonlinear Flexible Beam-Like Wing

Abstract:

The mathematical modelling of rotating nonlinear flexible beam-like wing with rectangular cross section is investigated here. The structure is mathematically modeled considering linear curvature and clamped-free boundary conditions. The flexible wing has an angle of attack which is considered constant. Nonlinearities resulting from the coupling between the angular velocity of the rotating axis and the transversal vibration of the beam are considered. A drag force and a lift force acting along the beam length are also included in the mathematical model. The drag force is modelled as a turbulent drag effect. The lift force is modeled as a generalized force, using the strip theory. These forces are velocity dependent nonlinear excitations acting on the bean-like wing.

• Periodical: Applied Mechanics and Materials (Volume 706)
• Pages: 93-99
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.706.93
• Online since: December 2014
• Authors: André Fenili*, Cayo Prado Fernandes Francisco, Karl Peter Burr
• Keywords: Drag Force, Lift Force, Nonlinear Systems, Rotating Flexible Structures

References

[1] S. Telli and O. Kopmaz, On The Mathematical Modelling Of Beams Rotating About a Fixed Axis, Mathematical and Computational Applications, Vol. 9, No. 3, pp.333-347, (2004).

DOI: 10.3390/mca9030333

[2] K.H. Low, Vibration Analysis of a Tip-Loaded Beam Attached to a Rotating Joint, Computers and Structures, vol. 52, no. 5, pp.955-968, (1994).

DOI: 10.1016/0045-7949(94)90080-9

[3] S. Putter and H. Manor, Natural Frequencies of Radial Rotating Beams, Journal of Sound and Vibrations", 56(2), pp.175-185, (1978).

DOI: 10.1016/s0022-460x(78)80013-3

[4] L. Meirovitch, Analytical Methods in Vibrations, Macmillan Publishing Co., Inc., New York, (1967).

[5] D.T. Greenwood, Classical Dynamics, Dover Publications, Inc., New York, (1977).

[6] C. Fox, An Introduction to the Calculus of Variations, Dover Publications, Inc., New York, (1987).

[7] W.T. Thomson, Theory of Vibration with Applications, Prentice Hall, New Jersey, (1988).

[8] R.R. Craig, Structural Dynamics - An Introduction to Computer Methods, John Wiley and Sons, (1981).

[9] A. Fenili, Mathematical Modeling and Analysis of the Ideal and Nonideal Behavior of Slewing Flexible Structures, Ph. D Thesis, University of Campinas (UNICAMP), Faculty of Mechanical Engineering. Brazil, 2000. In Portuguese.

[10] E.P. Popov, Introdução à Mecânica dos Sólidos, Editora Edgar Blücher Ltda, (1978).

[11] J.J. Sah and R.W. Mayne, Modeling of a Slewing Motor-Beam System, Proceedings of the International Computers in Engineering Conference, Boston, pp.481-486, (1990).
