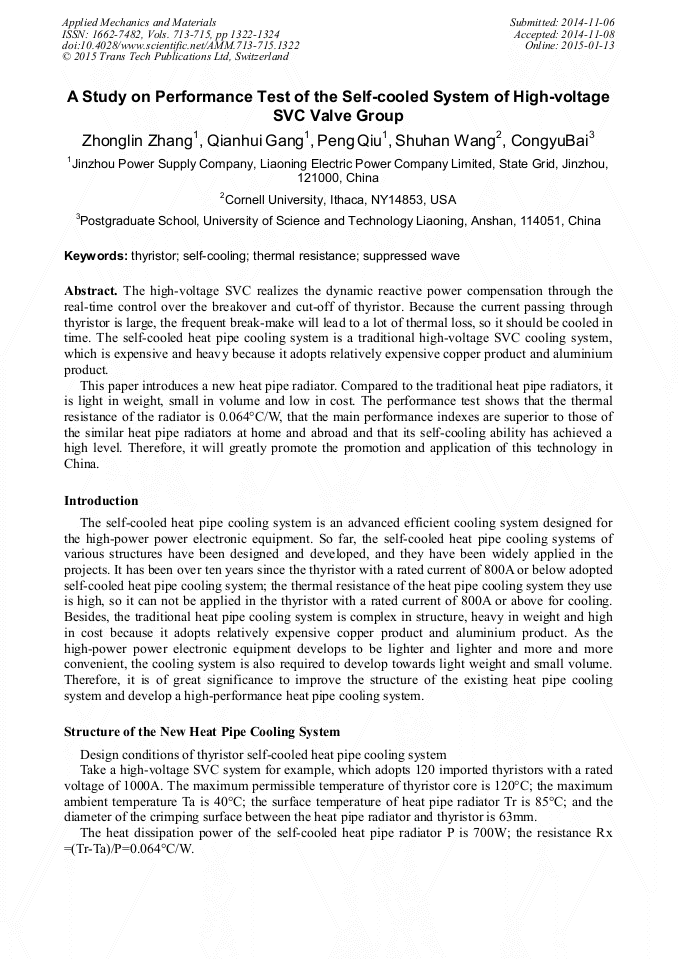

A Study on Performance Test of the Self-Cooled System of High-Voltage SVC Valve Group

Abstract:

The high-voltage SVC realizes the dynamic reactive power compensation through the real-time control over the breakover and cut-off of thyristor. Because the current passing through thyristor is large, the frequent break-make will lead to a lot of thermal loss, so it should be cooled in time. The self-cooled heat pipe cooling system is a traditional high-voltage SVC cooling system, which is expensive and heavy because it adopts relatively expensive copper product and aluminium product.This paper introduces a new heat pipe radiator. Compared to the traditional heat pipe radiators, it is light in weight, small in volume and low in cost. The performance test shows that the thermal resistance of the radiator is 0.064°C/W, that the main performance indexes are superior to those of the similar heat pipe radiators at home and abroad and that its self-cooling ability has achieved a high level. Therefore, it will greatly promote the promotion and application of this technology in China.

• Periodical: Applied Mechanics and Materials (Volumes 713-715)
• Pages: 1322-1324
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.713-715.1322
• Online since: January 2015
• Authors: Zhong Lin Zhang*, Qian Hui Gang, Peng Qiu, Shu Han Wang, Cong Yu Bai
• Keywords: Self-Cooling, Suppressed Wave, Thermal Resistance, Thyristor

References

[1] HowardW. Markctein, Cooling techniques for today's electronics, EP&P, 1997: 78~82.

[2] V.G. Pastukhov, Miniature Loop Heat Pipes for Electronics Cooling, 12thInt. Heat Pipe Conf. (2002).

[3] Bin-juine Huang, A Network Heat Pipe for Remote Heat Transport, 12thInt. Heat Pipe Conf. (2002).

[4] Zhihai Kou, Minli BaiI, Hongwu Yang. Thermal analysis of an innovative flat heat pipe radiator[J]. Cnet. South Univ. Technol. 2011, 18(3): 568-572.

DOI: 10.1007/s11771-011-0732-4
