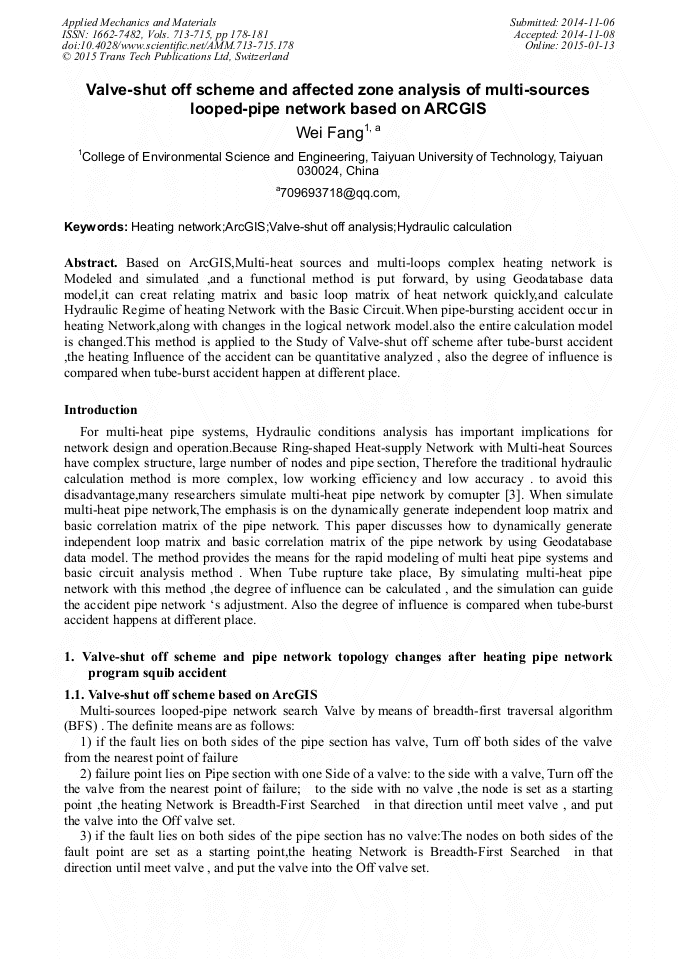

Valve-Shut off Scheme and Affected Zone Analysis of Multi-Sources Looped-Pipe Network Based on ARCGIS

Abstract:

Based on ArcGIS,Multi-heat sources and multi-loops complex heating network is Modeled and simulated ,and a functional method is put forward, by using Geodatabase data model,it can creat relating matrix and basic loop matrix of heat network quickly,and calculate Hydraulic Regime of heating Network with the Basic Circuit.When pipe-bursting accident occur in heating Network,along with changes in the logical network model.also the entire calculation model is changed.This method is applied to the Study of Valve-shut off scheme after tube-burst accident ,the heating Influence of the accident can be quantitative analyzed , also the degree of influence is compared when tube-burst accident happen at different place.
