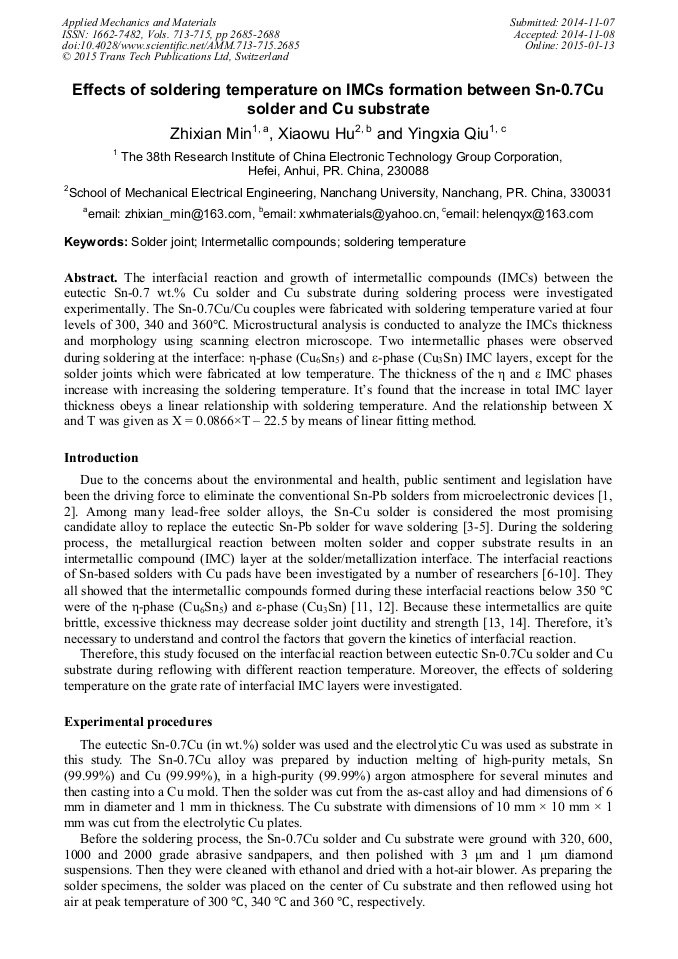

Effects of Soldering Temperature on IMCs Formation between Sn-0.7Cu Solder and Cu Substrate

Abstract:

The interfacial reaction and growth of intermetallic compounds (IMCs) between the eutectic Sn-0.7 wt.% Cu solder and Cu substrate during soldering process were investigated experimentally. The Sn-0.7Cu/Cu couples were fabricated with soldering temperature varied at four levels of 300, 340 and 360°C. Microstructural analysis is conducted to analyze the IMCs thickness and morphology using scanning electron microscope. Two intermetallic phases were observed during soldering at the interface: η-phase (Cu₆Sn₅) and ε-phase (Cu₃Sn) IMC layers, except for the solder joints which were fabricated at low temperature. The thickness of the η and ε IMC phases increase with increasing the soldering temperature. It’s found that the increase in total IMC layer thickness obeys a linear relationship with soldering temperature. And the relationship between X and T was given as X = 0.0866×T – 22.5 by means of linear fitting method.

• Periodical: Applied Mechanics and Materials (Volumes 713-715)
• Pages: 2685-2688
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.713-715.2685
• Online since: January 2015
• Authors: Zhi Xian Min*, Xiao Wu Hu, Ying Xia Qiu
• Keywords: Intermetallic Compounds, Solder Joint, Soldering Temperature

References

[1] Puttlitz KJ, Galyon GT. J Electron Mater., 2007, 18: 331-346.

[2] Tu KN. Solder joint technology materials, properties and reliability. New York: Spring, (2007).

[3] Chen WT, Ho CE, Kao RC. J. Mater. Res., 2002, 17: 263-266.

[4] Chen SW, Lee SW, Yip MC. J. Electron. Mater., 2003, 32: 1284-1289.

[5] Zeng K, Tu KN. Mater. Sci. Eng. R, 2002, 38: 55-105.

[6] Chen Hongtao, Han Jing, Li Jue, Li Mingyu. Microelectronics Reliability, 2012, 52: 1112-1120.

[7] Hu Xiaowu, Chen Wenjing, Wu Bin. Materials Science and Engineering A, 2012, 556: 816-823.

[8] Chen FX, Pang John HL. Journal of Alloys and Compounds, 2012, 541: 6-13.

[9] Wang Chao-hong, Chen Hsien-hsin, Li po-yi, Chu po-yen. Intermetallics, 2012, 22: 166-175.

[10] Zhang QK, Zhang ZF. Materials Science and Engineering A, 2011, 528: 2686-2693.

[11] Chen Sinn-wen, Zi An-ren, Chen Po-yin, Wu Hsin-jay, Chen Yu-kai, Wang Chao-hong. Materials Chemistry and Physics, 2008, 111: 17-19.

[12] Myeong-Hyeok Jeong, Jae-Won Kim, Byung-Hyun Kwak, Young-Bae Park, Microelectronic Engineering, 2012, 89: 50-54.

[13] Zou HF, Zhu QS, Zhang ZF. J. Alloys Compd., 2008, 461: 410-417.

[14] Deng X, Sidhu RS, Johnson P, Chawla N. Metall. Trans. A, 2005, 36: 55-64.
