Numerical Simulation of Flow Fluid in Elbow Pipe Based on FLUENT and the Establishment of the Pressure Model

Abstract:

According to the FLUENT simulation results of the 90°elbow pipe fluid flow condition, the influence of the pressure distribution about the variation of the flow parameters (v、P₀ 、ρ) and the geometric parameters (R、d、k=R/d、α、β) is analyzed. By using the dimensionless analysis method, on the basis of the influence of the 32 set of parameter variations on the elbow pipe wall pressure distribution regularity, the pressure qualitative function is established including the geometric parameters and the flow parameters. Through the 155 kinds of the FLUENT simulation results, the fitting software 1stOpt is used to verify the internal pressure model above and fit the undetermined coefficients. The verification shows that the model is of a higher calculation precision and the relative error isn’t exceeding 0.003%. It provides a theoretical basis to check the strength of the bend and design the pipeline with high pressure and speed.

You might also be interested in these eBooks

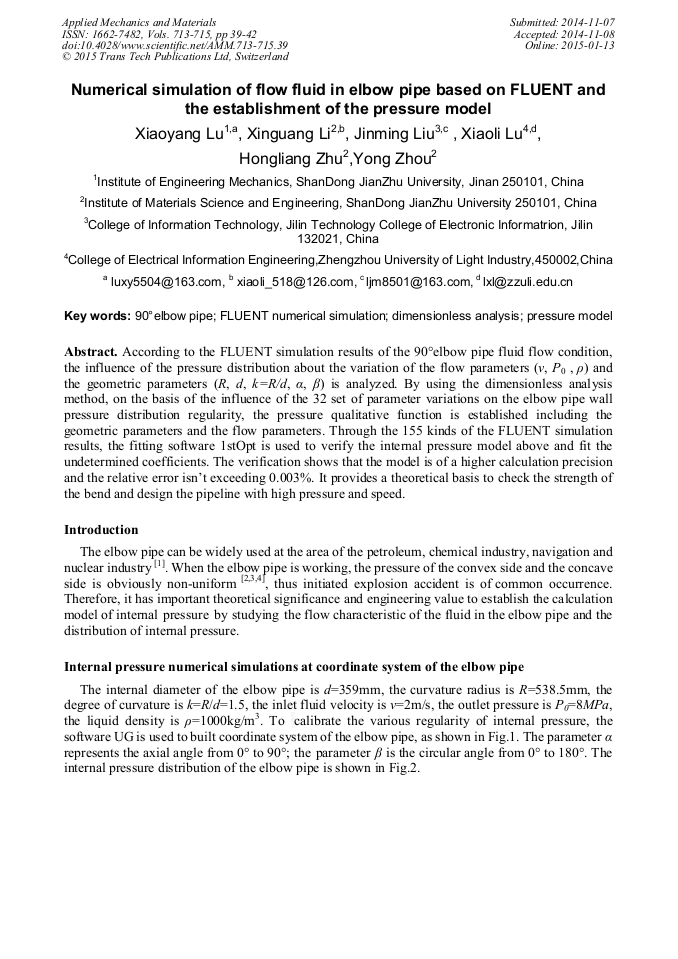

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 713-715)

Pages:

39-42

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.713-715.39

Citation:

Cite this paper

Online since:

January 2015

Authors:

Xiao Yang Lu*, Xin Guang Li, Jin Ming Liu, Xiao Li Lu, Hong Liang Zhu, Yong Zhou

Keywords:

90° Elbow Pipe, Dimensionless Analysis, FLUENT Numerical Simulation, Pressure Model

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Shan Jiang, Jingwei Zhang, Chongjian Wu. Numerical Simulation of Inner Flow in 90° Bending Duct of Circular Section Based on FLUENT. Chinese Journal of Ship Research, Vol. 3(2008) pp.37-47.

Google Scholar

[2] Xiaoyang Lu, Xiaoli Lu, Lili Huang, et al. The Analytical Model and Flow Parameter Influencing the Internal Pressure Distribution of Elbow Pipe. Advanced Materials Research. Vol. 366 (2012) pp.192-196.

DOI: 10.4028/www.scientific.net/amr.366.192

Google Scholar

[3] Xiaoyang Lu, Xiaoli Lu, Lili Huang. A Study on Distributive Regularities of the FluidPressure in Elbow Pipes. Advanced Materials Research. Vol. 366 (2012) pp.80-85.

DOI: 10.4028/www.scientific.net/amr.366.80

Google Scholar

[4] LU Xiao-yang, LU Xiao-li, TANG Bing-tao, et al. Numerical analy-sis of flow characteristics for elbow of a oil pipelines paper title，2010 International Conference on Mechanic Auto mationand Control Engineeringk, MACE 2010, (2010) pp.2415-2418.

DOI: 10.1109/mace.2010.5535869

Google Scholar

[5] Kaihua Zhao. Qualitative and Semi Quantitative Physics [M]. Beijing: China Higher Education Press, 1991 : 64.

Google Scholar
