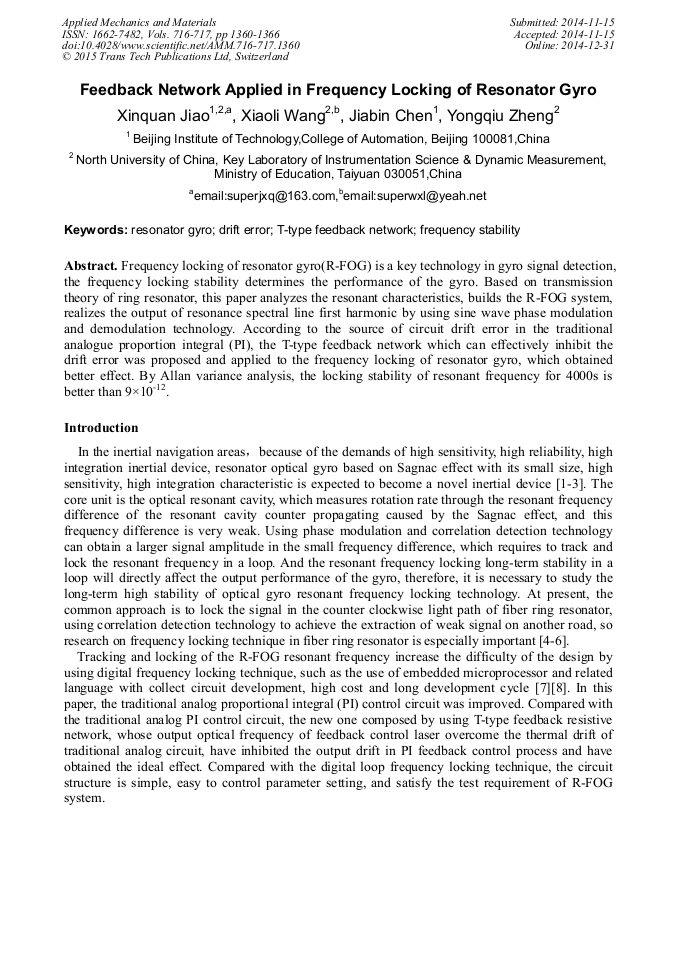

Feedback Network Applied in Frequency Locking of Resonator Gyro

Abstract:

Frequency locking of resonator gyro (R-FOG) is a key technology in gyro signal detection, the frequency locking stability determines the performance of the gyro. Based on transmission theory of ring resonator, this paper analyzes the resonant characteristics, builds the R-FOG system, realizes the output of resonance spectral line first harmonic by using sine wave phase modulation and demodulation technology. According to the source of circuit drift error in the traditional analogue proportion integral (PI), the T-type feedback network which can effectively inhibit the drift error was proposed and applied to the frequency locking of resonator gyro, which obtained better effect. By Allan variance analysis, the locking stability of resonant frequency for 4000s is better than 9×10^-12.

• Periodical: Applied Mechanics and Materials (Volumes 716-717)
• Pages: 1360-1366
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.716-717.1360
• Online since: December 2014
• Authors: Xin Quan Jiao*, Xiao Li Wang, Jia Bin Chen, Yong Qiu Zheng
• Keywords: Drift Error, Frequency Stability, Resonator Gyro, T-Type Feedback Network

References

[1] K. Suzuki, K. Takiguchi, K. Hotate. Monolithically integrated resonator microoptic gyro on silica planar lightwave circuit [J]. Lightwave Technol, 2000, 18(1): 66~72.

DOI: 10.1109/50.818908

[2] Kunbo Wang, Lishuang Feng, Junjie Wang, et al. Alternative method for design and optimization of the ring resonator used in micro-optic gyro [J]. APPLIED OPTICS, 2013, 52(7): 1481~1486.

DOI: 10.1364/ao.52.001481

[3] Ming Lei, Lishuang Feng, Yinzhou Zhi, et al. Experiments on resonator micro-optic gyro using external cavity laser diode [J]. Optical Engineering, 2013, 51(10): 104602.

DOI: 10.1117/1.oe.51.10.104602

[4] Yang Xuefeng, Zheng Yangming, Ma Huilian, et al. Loop Frequency Locking Technique in Resonator Fiber optic Gyro [J]. Chinese Journal of Sensors and Actuators, 2007, 20(5): 990-993.

[5] Lingfei Hong, Chunxi Zhang, Lishuang Feng, et al. Frequency Tracking and Locking Method Used in Resonator Micro-Optic Gyro [J]. SENSOR LETTERS. 2012, 10(1-2): 14-17.

DOI: 10.1166/sl.2012.2321

[6] Dong Lei, Ma Weiguang, Yin Wangbao, et al. Frequency Stabilization of an External Cavity Diode Laser Based on LabVIEW [J]. Journal of Optoelectronics·Laser, 2005, 16(3): 255-258.

[7] Ji Zhonghua, Zhang Ranran, Ma Jie, et al. Long-Term Frequeney Stabilization with Digital Servo System [J]. Chinese Journal of Lasers, 2009, 36(4): 804-808.

DOI: 10.3788/cjl20093604.0804

[8] Xu Pengfei, Zhang Jianhui, Meng Xiangran, et al. Characteristics of fiber ring resonator dynamic response [J]. Infrared and Laser Engineering, 2013, 42(3): 599-604.

[9] Diqing Ying, Huilian Ma, Zhonghe Jin. Ringing phenomenon of the fiber ring resonator [J]. APPLIED OPTICS, 2007, 46(22): 4890-4895.

DOI: 10.1364/ao.46.004890

[10] Eric D. Black. An introduction to Pound-Drever-Hall laser frequency stabilization [J]. American Journal of Physics, 2001, 69(1): 79-87.

DOI: 10.1119/1.1286663

[11] Koichi Takiguchi, Kazuo Hotate. Partially Digital-Feedback Scheme and Evaluation of Optical Kerr-Effect Induced Bias in Optical Passive Ring-Resonator Gyro [J]. IEEE PHOTONICS ECHNOLOGY LETTERS, 1991, 3(7): 679-681.

DOI: 10.1109/68.87952

[12] She Qianshun, Zhao Hongyun, Su Hong, et al. The development of a long-time current integration digitizer [J]. Nuclear Techniques, 2010, 33(11): 867-870.
