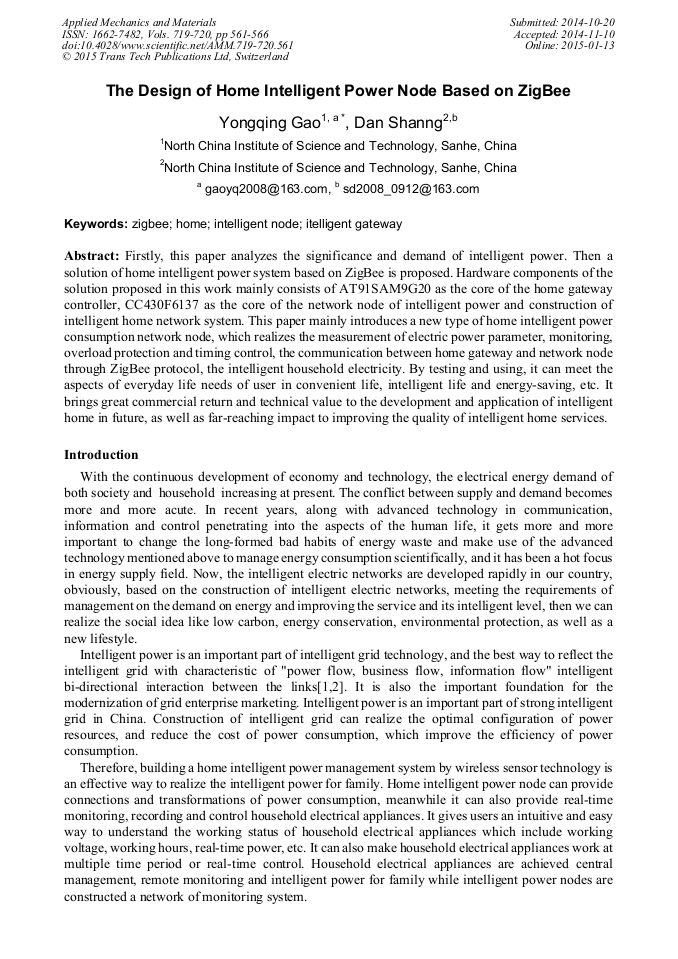

The Design of Home Intelligent Power Node Based on ZigBee

Abstract:

Firstly, this paper analyzes the significance and demand of intelligent power. Then a solution of home intelligent power system based on ZigBee is proposed. Hardware components of the solution proposed in this work mainly consists of AT91SAM9G20 as the core of the home gateway controller, CC430F6137 as the core of the network node of intelligent power and construction of intelligent home network system. This paper mainly introduces a new type of home intelligent power consumption network node, which realizes the measurement of electric power parameter, monitoring, overload protection and timing control, the communication between home gateway and network node through ZigBee protocol, the intelligent household electricity. By testing and using, it can meet the aspects of everyday life needs of user in convenient life, intelligent life and energy-saving, etc. It brings great commercial return and technical value to the development and application of intelligent home in future, as well as far-reaching impact to improving the quality of intelligent home services.

• Periodical: Applied Mechanics and Materials (Volumes 719-720)
• Pages: 561-566
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.719-720.561
• Online since: January 2015
• Authors: Yong Qing Gao*, Dan Shanng
• Keywords: Home, Intelligent Node, Itelligent Gateway, ZigBee

References

[1] Tracey C, Household energy consumption and consumer electronics: The case of television, Energy Policy, 2008, 36: pp.2191-2199.

DOI: 10.1016/j.enpol.2008.02.010

[2] Shi Bisheng, Design and Implement of the Household Energy Management System. Nanjing University of Information Science & Technology, Nanjing, China: Academic, (2012).

[3] Yongqing Gao, Dan Shang, The Research of Home Intelligent Power System Based on ZigBee. 2013 3rd International Conference on Consumer Electronics, Communications and Networks，2013, pp.703-706.

DOI: 10.1109/cecnet.2013.6703428

[4] Wood G, Newborough M, Dynamic energy-consumption indicators for domestic appliances: environment, behavior and design. Energy and Building, 2003, 35(8) : pp.821-841.

DOI: 10.1016/s0378-7788(02)00241-4

[5] IEEE Standards 802. 15. 4TM-2003, Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (LR-WPANS) [S], (2003).

DOI: 10.1109/ieeestd.2006.232110

[6] Yongqing Gao, Chunlai Zhou, Dan Shang, The Design of Home Intelligent Power Gateway Based on ZigBee[OL], http: /www. paper. edu. cn/releasepaper/content/201312-397.

[7] Shouwei Gao, Canyang WU, The practice guide on ZigBee technology[M]. Beijing, China: Bei Hang University Press. (2009).

[8] Limin Sun, Jianzhong Li, Yu Chen, Hongsong Zhu. Wireless sensor network[M]. Beijing, China: Tsing Hua University Press. (2005).

[9] Xianlong Wu. CC430 and Wireless sensor network[M]. Beijing, China: Metallurgical Industry Press. (2011).
