The Research on Flow Calculation Method of the Ball Solenoid Valve

Abstract:

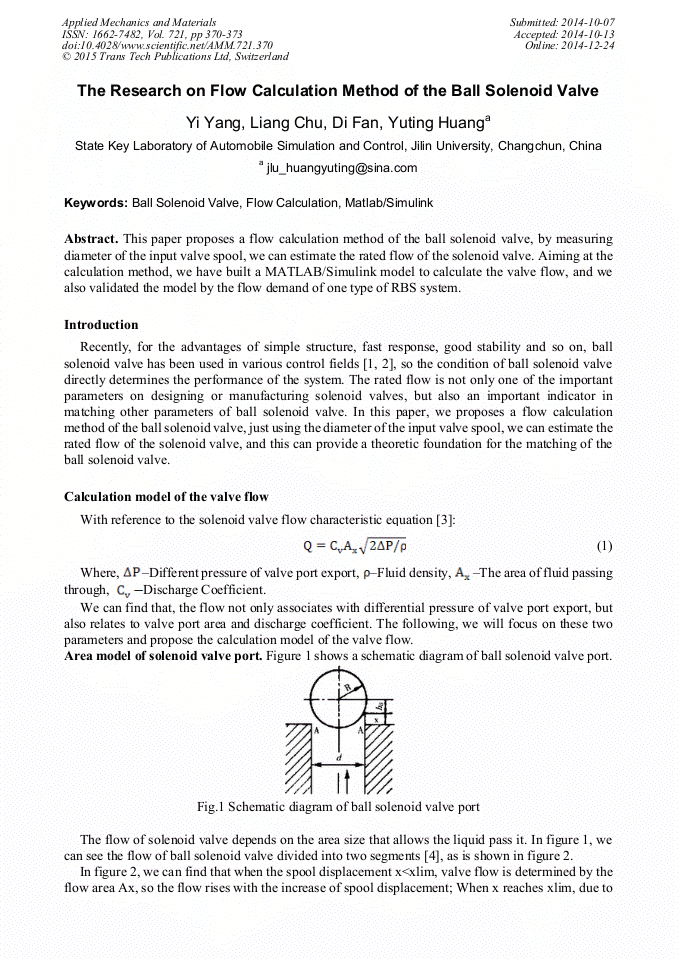

This paper proposes a flow calculation method of the ball solenoid valve, by measuring diameter of the input valve spool, we can estimate the rated flow of the solenoid valve. Aiming at the calculation method, we have built a MATLAB/Simulink model to calculate the valve flow, and we also validated the model by the flow demand of one type of RBS system.
