Research on Corrosion Behavior of A3 Steel in Compound Sodium Molybadate Inhibitor Solution

Cai Xia Sun; Yan Min Chen; De Yu Cao; Min Zhang; Jin Ying Wu; Chang Shan Huang

doi:10.4028/www.scientific.net/AMM.723.570

Paper Titles

Atomic Structure and Diffusion Properties of Liquid Cu₄₅Zr₄₈Al₇ Metallic Glasses
p.551

Microsture and Properties of a Cu-Cr-Zr-Fe-Ti Alloy
p.556

Temperature Field Measuring and Simulation of CMSX-6 Superalloy during Directional Solidification
p.561

Parameter Evaluation of the Chaboche Model with Kinematic Recovery Term for a Nickel-Based Superalloy
p.565

Research on Corrosion Behavior of A3 Steel in Compound Sodium Molybadate Inhibitor Solution
p.570

Simulation of Microstructure and Dynamical Properties in Ni-Al Alloy under Different Pressures
p.575

Ethanol Catalytic Oxidation on Yb Promoted Pd/C in Alkaline Medium
p.583

Exploration on the Relationships Based on the Offset Overprint Trapping between the Optical Density and Color Ink Film Thickness
p.587

Kinetic Study of the Adsorption of Dye onto Cotton in SDS-CTAB Reverse Micelles
p.591

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 723Research on Corrosion Behavior of A3 Steel in...

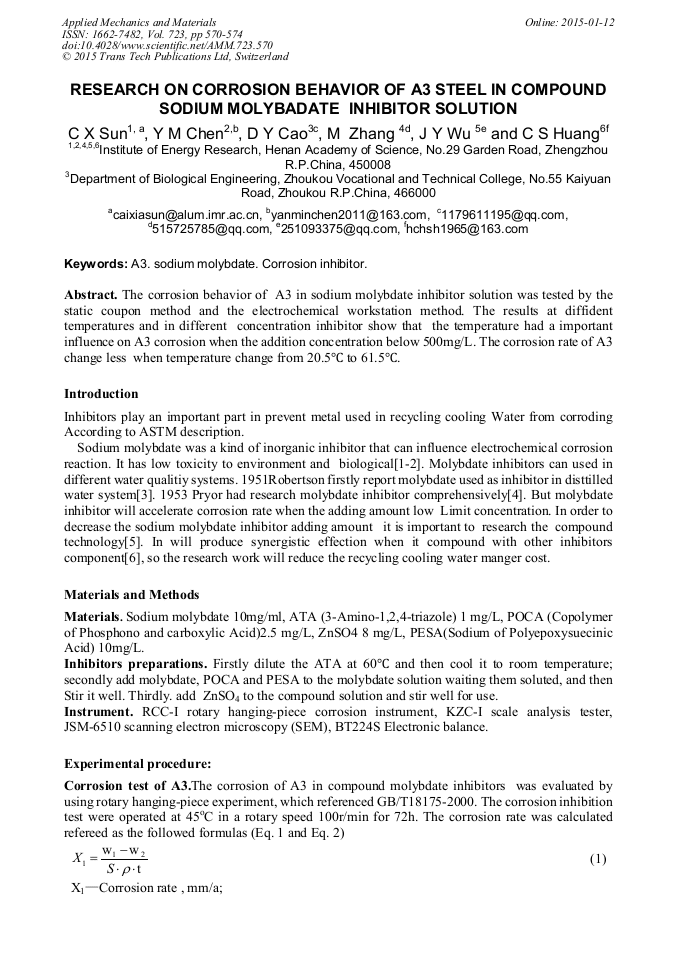

Research on Corrosion Behavior of A3 Steel in Compound Sodium Molybadate Inhibitor Solution

Abstract:

The corrosion behavior of A3 in sodium molybdate inhibitor solution was tested by the static coupon method and the electrochemical workstation method. The results at diffident temperatures and in different concentration inhibitor show that the temperature had a important influence on A3 corrosion when the addition concentration below 500mg/L. The corrosion rate of A3 change less when temperature change from 20.5°C to 61.5°C.
