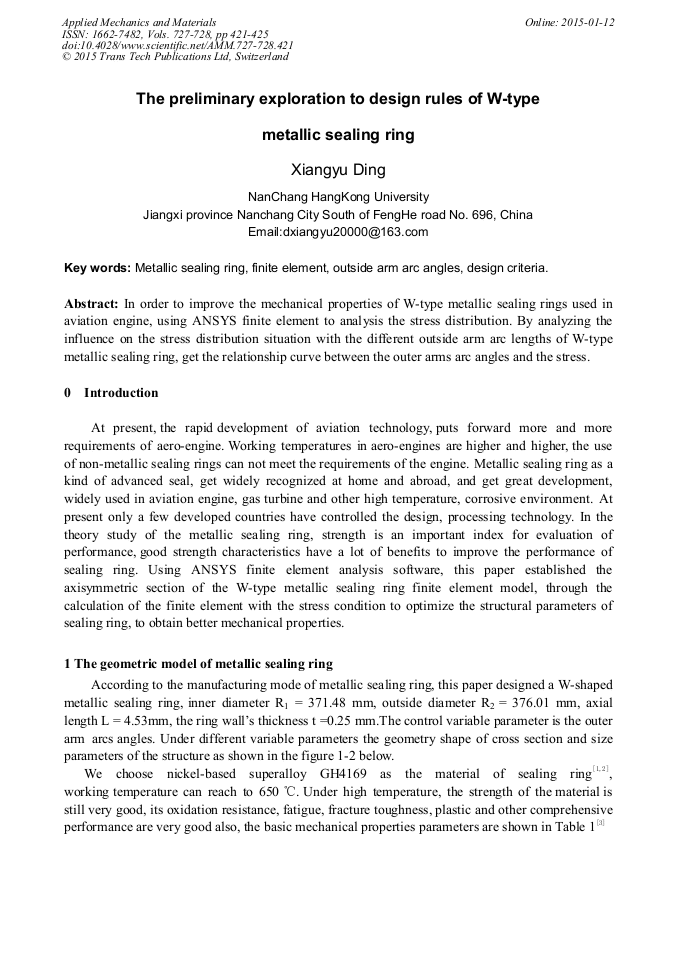

The Preliminary Exploration to Design Rules of W-Type Metallic Sealing Ring

Abstract:

In order to improve the mechanical properties of W-type metallic sealing rings used in aviation engine, using ANSYS finite element to analysis the stress distribution. By analyzing the influence on the stress distribution situation with the different outside arm arc lengths of W-type metallic sealing ring, get the relationship curve between the outer arms arc angles and the stress.
