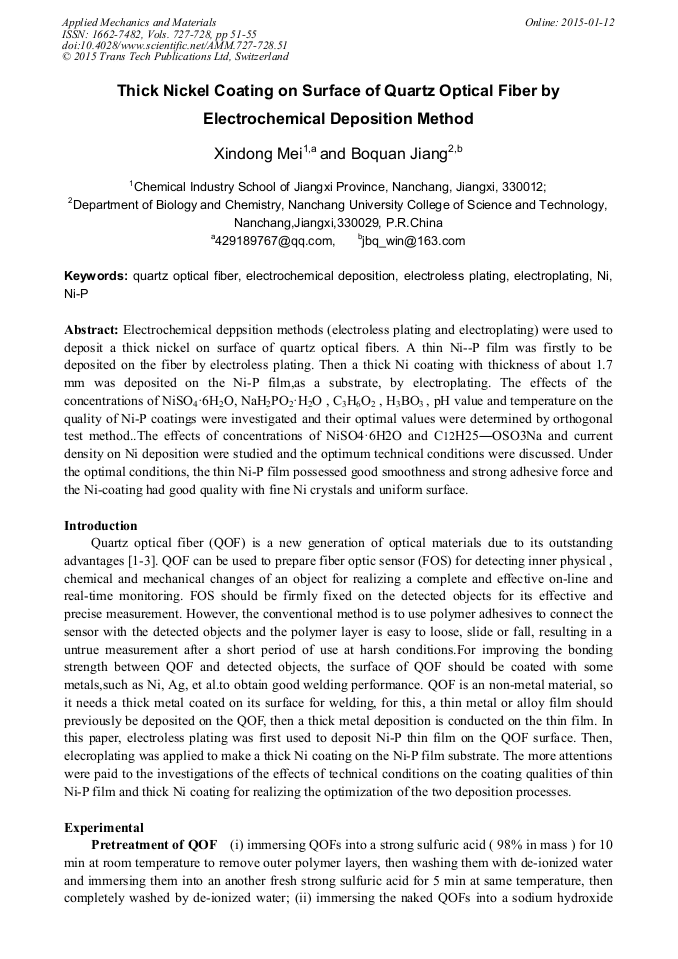

Thick Nickel Coating on Surface of Quartz Optical Fiber by Electrochemical Deposition Method

Abstract:

Electrochemical deppsition methods (electroless plating and electroplating) were used to deposit a thick nickel on surface of quartz optical fibers. A thin Ni--P film was firstly to be deposited on the fiber by electroless plating. Then a thick Ni coating with thickness of about 1.7 mm was deposited on the Ni-P film,as a substrate, by electroplating. The effects of the concentrations of NiSO₄·6H₂O, NaH₂PO₂·H₂O , C₃H₆O₂ , H₃BO₃ , pH value and temperature on the quality of Ni-P coatings were investigated and their optimal values were determined by orthogonal test method..The effects of concentrations of NiSO₄·6H₂O and C₁₂H₂₅―OSO₃Na and current density on Ni deposition were studied and the optimum technical conditions were discussed. Under the optimal conditions, the thin Ni-P film possessed good smoothness and strong adhesive force and the Ni-coating had good quality with fine Ni crystals and uniform surface.

• Periodical: Applied Mechanics and Materials (Volumes 727-728)
• Pages: 51-55
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.727-728.51
• Online since: January 2015
• Authors: Xin Dong Mei*, Bo Quan Jiang
• Keywords: Electrochemical Deposition, Electrolessplating, Electroplating, Ni, Ni-P, Quartz Optical Fiber

References

[1] Jiang Boquan, Xiao, Lin, Hu Shufen, Peng. Optimization and kinetics of electroless Ni-P-B plating of quartz optical fiber Optical Materials, 31(2009) 1532-1539.

DOI: 10.1016/j.optmat.2009.02.016

[2] Liu, Jing , Yang,  Kuang Qi. Preparation and adhesion study of indium tin oxide films on quartz optical fibers Advanced Materials Research, 154-155(2011) 738-742.

DOI: 10.4028/www.scientific.net/amr.154-155.738

[3] Li, Daocai, Wang, Laijun, Zhang, Ping, et al. HI decomposition over active carbon supported binary Ni-Pd catalysts prepared by electroless plating Catalysis Communications, 37(2013)32-35.

DOI: 10.1016/j.catcom.2013.03.019

[4] Huang, Yuan Sheng. Nickel-diamond compound electroless plating on cast aluminumalloys. Advanced Materials Research (Manufacturing Process Technology), 189-193(2011) 265-268.

DOI: 10.4028/www.scientific.net/amr.189-193.265

[5] Cao, Haiyong, Feng, Xue, Sun, Qi. Electrochemical analysis of cathode in TSV copper electroplating 2012 2nd IEEE CPMT Symposium Japan, ICSJ 2012, 2012, 2012 2nd IEEE CPMT Symposium Japan, ICSJ (2012).

DOI: 10.1109/icsj.2012.6523399
