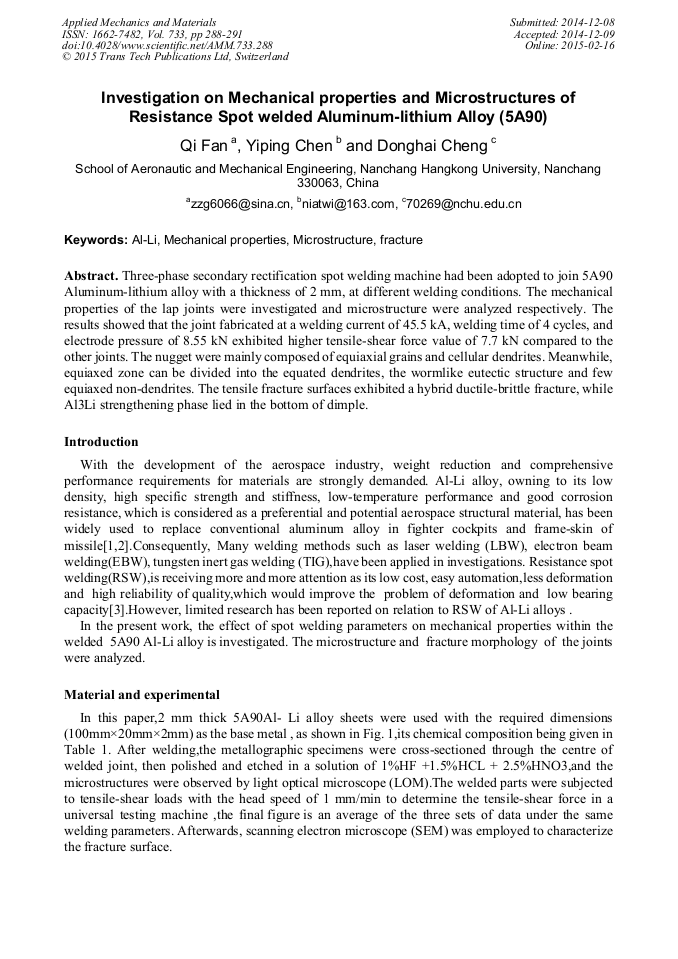

Investigation on Mechanical Properties and Microstructures of Resistance Spot Welded Aluminum-Lithium Alloy (5A90)

Abstract:

Three-phase secondary rectification spot welding machine had been adopted to join 5A90 Aluminum-lithium alloy with a thickness of 2 mm, at different welding conditions. The mechanical properties of the lap joints were investigated and microstructure were analyzed respectively. The results showed that the joint fabricated at a welding current of 45.5 kA, welding time of 4 cycles, and electrode pressure of 8.55 kN exhibited higher tensile-shear force value of 7.7 kN compared to the other joints. The nugget were mainly composed of equiaxial grains and cellular dendrites. Meanwhile, equiaxed zone can be divided into the equated dendrites, the wormlike eutectic structure and few equiaxed non-dendrites. The tensile fracture surfaces exhibited a hybrid ductile-brittle fracture, while Al3Li strengthening phase lied in the bottom of dimple.

You might also be interested in these eBooks

Engineering Decisions for Industrial Development

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 733)

Pages:

288-291

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.733.288

Citation:

Cite this paper

Online since:

February 2015

Authors:

Qi Fan, Yi Ping Chen, Dong Hai Cheng

Keywords:

Al-Li, Fracture, Mechanical Properties, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Cui Li, Li Xiaoyan, He Dingyong, et al. Microstructure investigation of Nd: YAG laser welded 5A90 Aluminium-lithium alloys [J]. Transactions of the China Welding Institution, 2010, 31(9): 77-80.

Google Scholar

[2] Fridlyander. I.N. Soviet Al-Li Alloy of Aerospace Application[C]. The sixth international conference on Aluminum-lithium Alloy, German, 1992, 1: 35-42.

Google Scholar

[3] Ranfeng Qiu, Zhanling Zhang, Keke Zhang, et al. Influence of Welding para-meters on the Tensile Shear Strength of Aluminum Alloy Joint Welded by Resistance Spot Welding[J]. Journal of Materials Engineering and Performance, 2011, 20(3): 355-358.

DOI: 10.1007/s11665-010-9703-4

Google Scholar

[4] YU Erjing, HAO Chuanyong, YING Huiyun, et al. Peculiarities of Solidification Structure of Aluminium-lithium [J]. Transactions of the China Welding Institution, 1996, 17(1): 1-6.

Google Scholar
