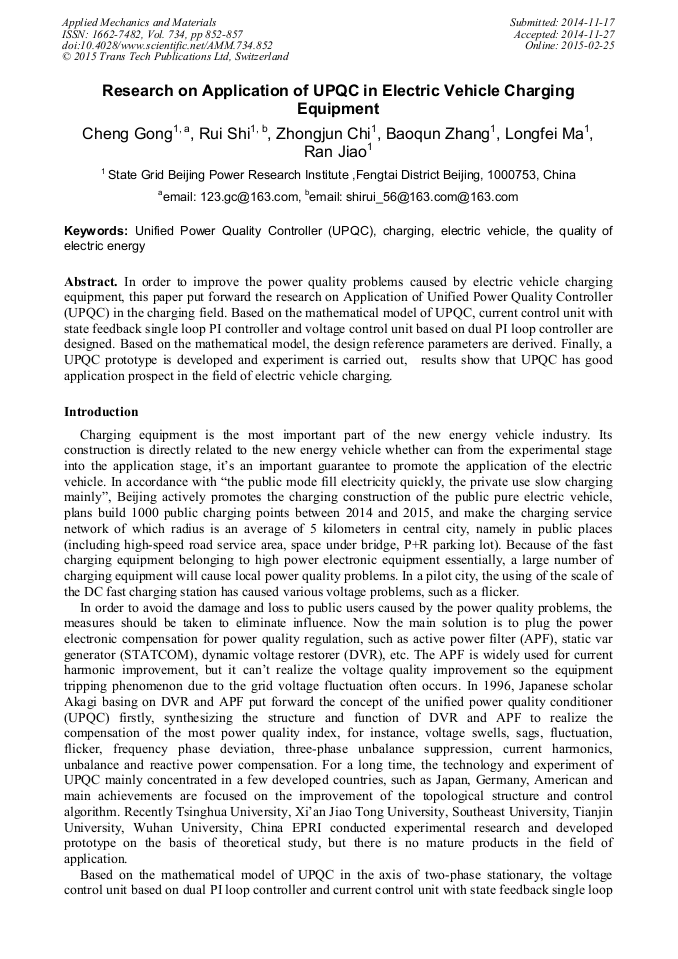

Research on Application of UPQC in Electric Vehicle Charging Equipment

Abstract:

In order to improve the power quality problems caused by electric vehicle charging equipment, this paper put forward the research on Application of Unified Power Quality Controller (UPQC) in the charging field. Based on the mathematical model of UPQC, current control unit with state feedback single loop PI controller and voltage control unit based on dual PI loop controller are designed. Based on the mathematical model, the design reference parameters are derived. Finally, a UPQC prototype is developed and experiment is carried out, results show that UPQC has good application prospect in the field of electric vehicle charging.

• Periodical: Applied Mechanics and Materials (Volume 734)
• Pages: 852-857
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.734.852
• Online since: February 2015
• Authors: Cheng Gong*, Rui Shi, Zhong Jun Chi, Bao Qun Zhang, Long Fei Ma, Ran Jiao
• Keywords: Charging, Electric Vehicle (EV), Quality of Electric Energy, Unified Power Quality Controller (UPQC)
