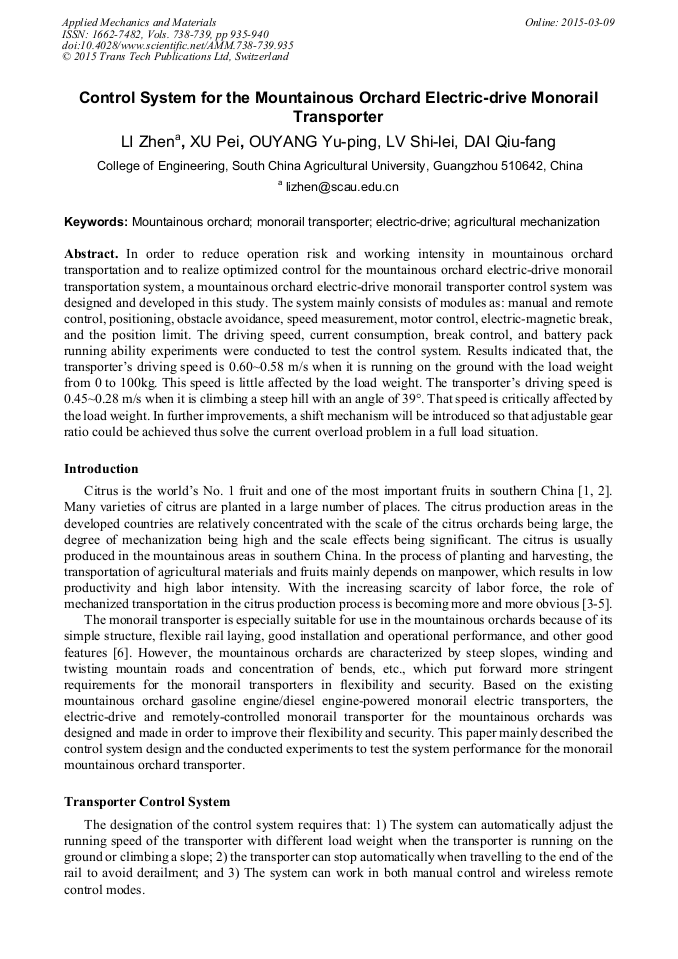

Control System for the Mountainous Orchard Electric-Drive Monorail Transporter

Abstract:

In order to reduce operation risk and working intensity in mountainous orchard transportation and to realize optimized control for the mountainous orchard electric-drive monorail transportation system, a mountainous orchard electric-drive monorail transporter control system was designed and developed in this study. The system mainly consists of modules as: manual and remote control, positioning, obstacle avoidance, speed measurement, motor control, electric-magnetic break, and the position limit. The driving speed, current consumption, break control, and battery pack running ability experiments were conducted to test the control system. Results indicated that, the transporter’s driving speed is 0.60~0.58 m/s when it is running on the ground with the load weight from 0 to 100kg. This speed is little affected by the load weight. The transporter’s driving speed is 0.45~0.28 m/s when it is climbing a steep hill with an angle of 39°. That speed is critically affected by the load weight. In further improvements, a shift mechanism will be introduced so that adjustable gear ratio could be achieved thus solve the current overload problem in a full load situation.

• Periodical: Applied Mechanics and Materials (Volumes 738-739)
• Pages: 935-940
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.738-739.935
• Online since: March 2015
• Authors: Zhen Li*, Pei Xu, Yu Ping Ouyang, Shi Lei Lv, Qiu Fang Dai
• Keywords: Agricultural Mechanization, Electric-Drive, Monorail Transporter, Mountainous Orchard

References

[1] Hong T S, Yang Z, Song S R, et al. Mechanization of citrus production. Transactions of the Chinese Society for Agricultural Machinery, 2010, 41(12): 105-110.

[2] Jose Renato Munhoz, Renaldo Morabito. Optimization approaches to support decision making in the production planning of a citrus company: A Brazilian case study. Computers and Electronics in Agriculture, 2014, 107: 45-57.

DOI: 10.1016/j.compag.2014.05.016

[3] Liu B F, Wang L H. Development of monorail and its application in forestry in China. Forest Engineering, 2008, 24(1): 25-27.

[4] Chen S L. Construction technique route of standardized orchards in Yilin district. China Fruit News, 2010, 27 (5): 22-23.

[5] Yamamoto S, Kanamiitsu M, Ajiki K, et al. New technologies and systems for high quality citrus fruit production, laborsaving and orchard construction in mountain areas of Japan. Journal of Mountain Science, 2005, 2(1): 59-67.

DOI: 10.1007/s11629-005-0059-4

[6] Zhang X J, Gao X H, Wang Y C, et al. Unified dynamical model of vehicle steering and model-following contro. Transactions of the Chinese Society of Agricultural Engineering, 2009, 25(11): 173-177.
