Research of PWM Rectifier System Based on Infineon XMC4500

Yin Sha Yang; Yan Xia Gao; Yuan Jie Luo

doi:10.4028/www.scientific.net/AMM.740.479

Paper Titles

Study on Thermal Storage Device Model and Control Strategy for Cogeneration and Wind Power Heating System
p.460

Fault Diagnosis Simulation of Light High Voltage Direct Current Transmission System
p.466

Voltage Sag Detection Method Based on Wavelet Information
p.470

PEMFC Parameter Simulation Based on MATLAB/SIMULINK
p.474

Research of PWM Rectifier System Based on Infineon XMC4500
p.479

Design of Global Positioning System Based on Single Chip Computer
p.485

A Single-Phase AC/DC Conversion Circuit with APFC
p.490

Hysteretic Control Technology in New Flexible HVDC
p.495

On the Research of Identification Methods for Supercapacitor Model Parameters
p.499

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 740Research of PWM Rectifier System Based on Infineon...

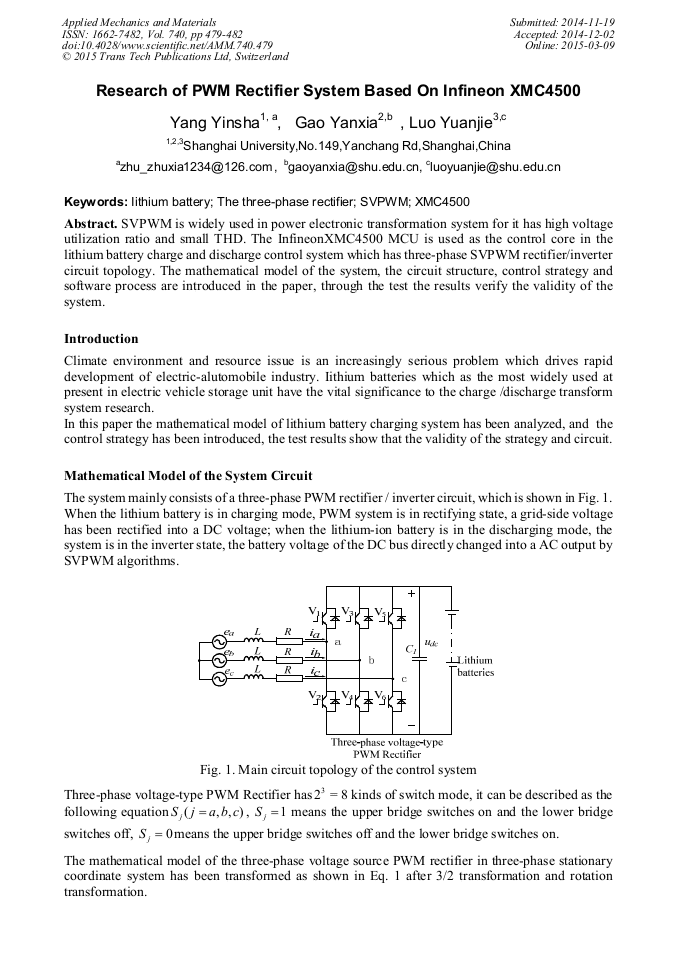

Research of PWM Rectifier System Based on Infineon XMC4500

Abstract:

SVPWM is widely used in power electronic transformation system for it has high voltage utilization ratio and small THD. The InfineonXMC4500 MCU is used as the control core in the lithium battery charge and discharge control system which has three-phase SVPWM rectifier/inverter circuit topology. The mathematical model of the system, the circuit structure, control strategy and software process are introduced in the paper, through the test the results verify the validity of the system.
