An Ultrasonic Rayleigh Wave Transducer and its Application to Nondestructive Pressure Measurement

Abstract:

An ultrasonic Rayleigh wave transducer was designed for nondestructive pressure measurement in vessels. Using polyimide resin as the wedge material, the Rayleigh wave transducer had two piezoelectric elements which were placed in the same wedge with a certain distance. Variations in pressure and temperature of vessels can affect the velocity of ultrasonic waves, which will affect variations in time delay in receiving of the same Rayleigh wave with the two piezoelectric elements of the designed transducer. Based on the acoustoelasticity principle and considered the effect of temperature, a practical correlation model between the time delay and both the pressure and temperature of vessels was developed. Using an air vessel as a specimen, Rayleigh wave transducers were arranged in the axial direction of the vessel. The results of temperature experiments show that effect of changes in temperature on time delay agree with the theoretical results. With the calculation temperature compensation in pressure experiment, the relationship between the variations in the time delay caused by changes of pressure and the pressure is established. The pressure measurement results show that the measurement model is effective and the maximum absolute error is 0.09 MPa, which could be acceptable in engineering application.

You might also be interested in these eBooks

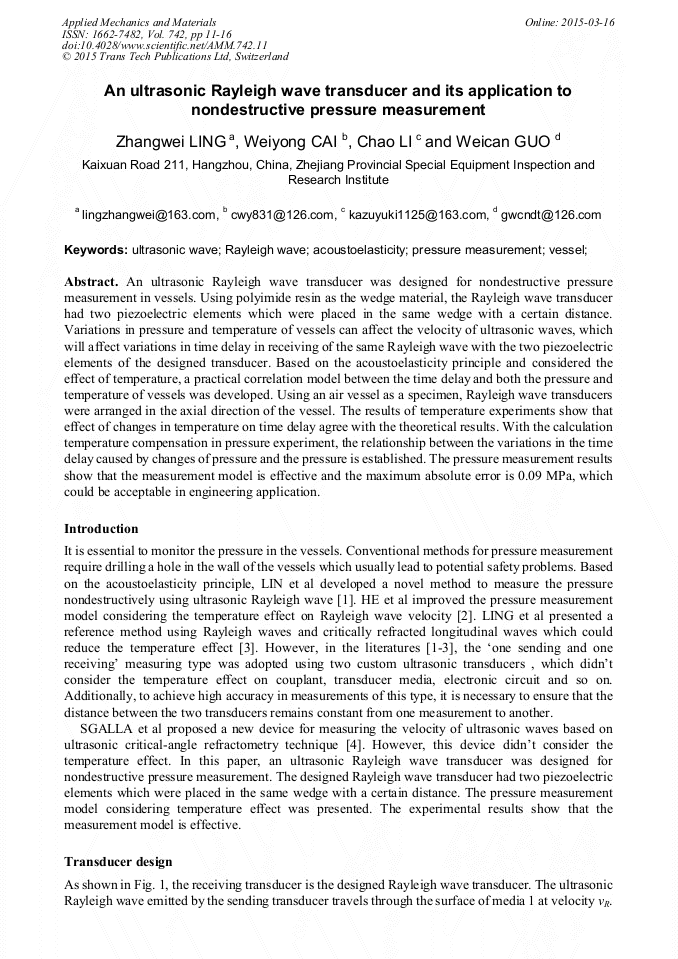

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 742)

Pages:

11-16

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.742.11

Citation:

Cite this paper

Online since:

March 2015

Authors:

Zhang Wei Ling*, Wei Yong Cai, Chao Li, Wei Can Guo

Keywords:

Acoustoelasticity, Pressure Measurement, Rayleigh Wave, Ultrasonic Wave, Vessel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] S. F. LIN, H. J. ZHANG. A method for nondestructively measuring pressure based on the Rayleigh wave, Chinese Journal of Scientific Instrument, Vol. 26 (2005), p.976.

Google Scholar

[2] Q. HE, H. L. ZHOU, H. J. ZHANG and Z. W. LING. Research on pressure measurement model using surface wave considering temperature effect, Chinese Journal of Scientific Instrument, Vol. 29 (2008), p.2367.

Google Scholar

[3] Z. W. LING, H. L. ZHOU, H. J. ZHANG. Nondestructive pressure measurement in vessels using Rayleigh waves and LCR waves, IEEE Transactions on Instrumentation & Measurement, Vol. 58 (2009), p.1578.

DOI: 10.1109/tim.2009.2012936

Google Scholar

[4] M. SGALLA, A. VANGI. A device for measuring the velocity of ultrasonic waves: an application to stress analysis, Experimental Mechanics, Vol. 44 (2004), p.85.

DOI: 10.1007/bf02427981

Google Scholar
